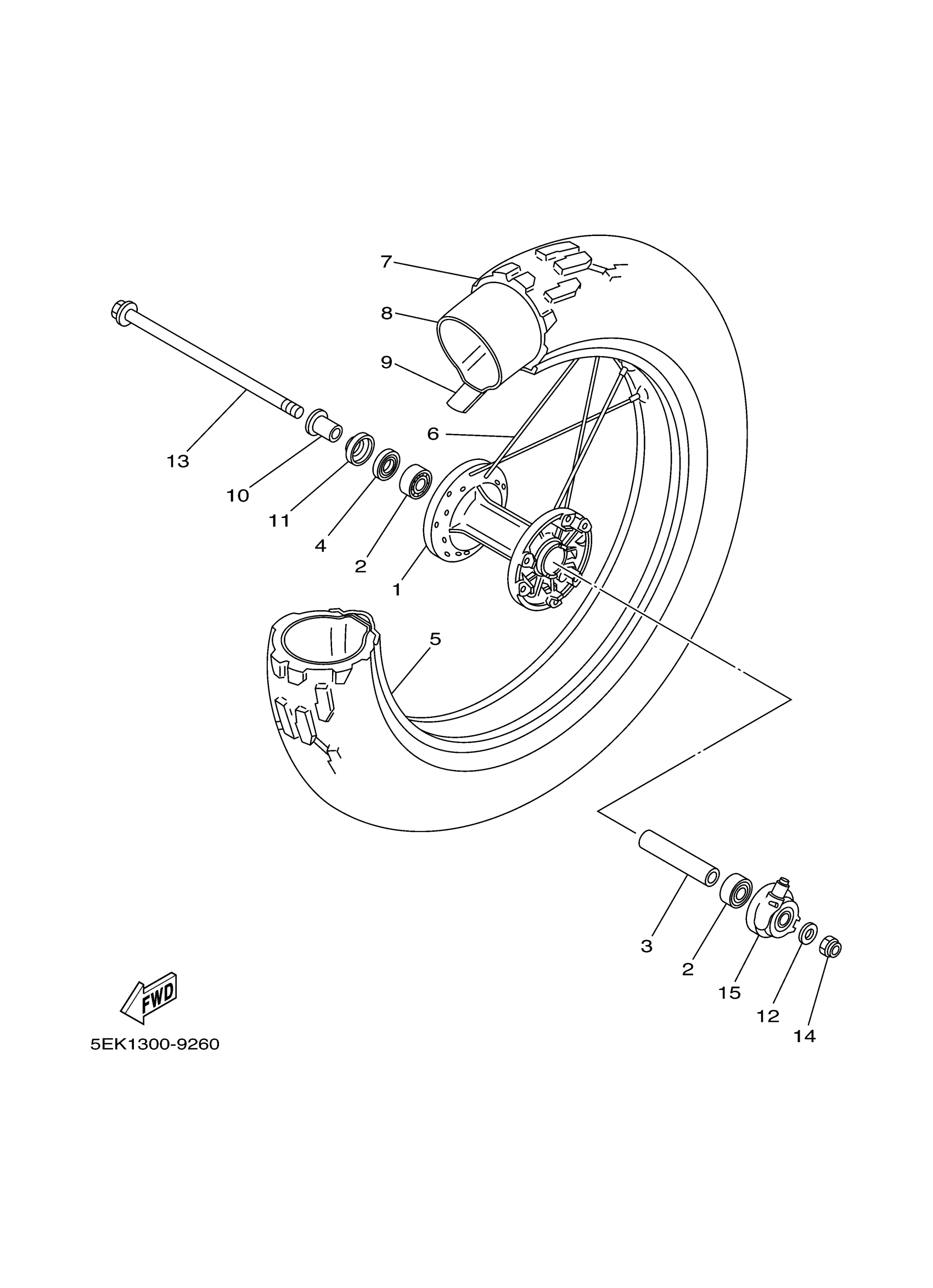

Yamaha TW200R1C (TW200 CA) B75W 2024 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

5EK-25111-00-00

$250.99

2

BEARING

93306-20203-00

$24.99

3

SPACER(23A)

90560-15312-00

$38.99

4

OIL SEAL (23X)

93102-20281-00

$14.99

5

RIM (2.50-18)

94425-18002-00

Unavailable

6

SPOKE SET, REAR

4TP-25304-10-00

Unavailable

7

TIRE (130/80-18 M/C 66P TW31)

94113-184R7-00

Unavailable

8

TUBE (5A8)

94212-18188-00

$35.99

9

BAND, RIM (2J4)

94340-18086-00

$17.99

10

COLLAR (1W1)

90387-15600-00

$18.99

11

COVER, HUB DUST

322-25118-00-00

$17.49

12

WASHER PLATE (3L6)

90201-14740-00

$8.49

13

AXLE, WHEEL

2JX-25181-00-00

$76.99

14

NUT, U(4JT)

95617-14100-00

Unavailable

15

GEAR UNIT ASSY

5EK-25190-00-00

Unavailable
