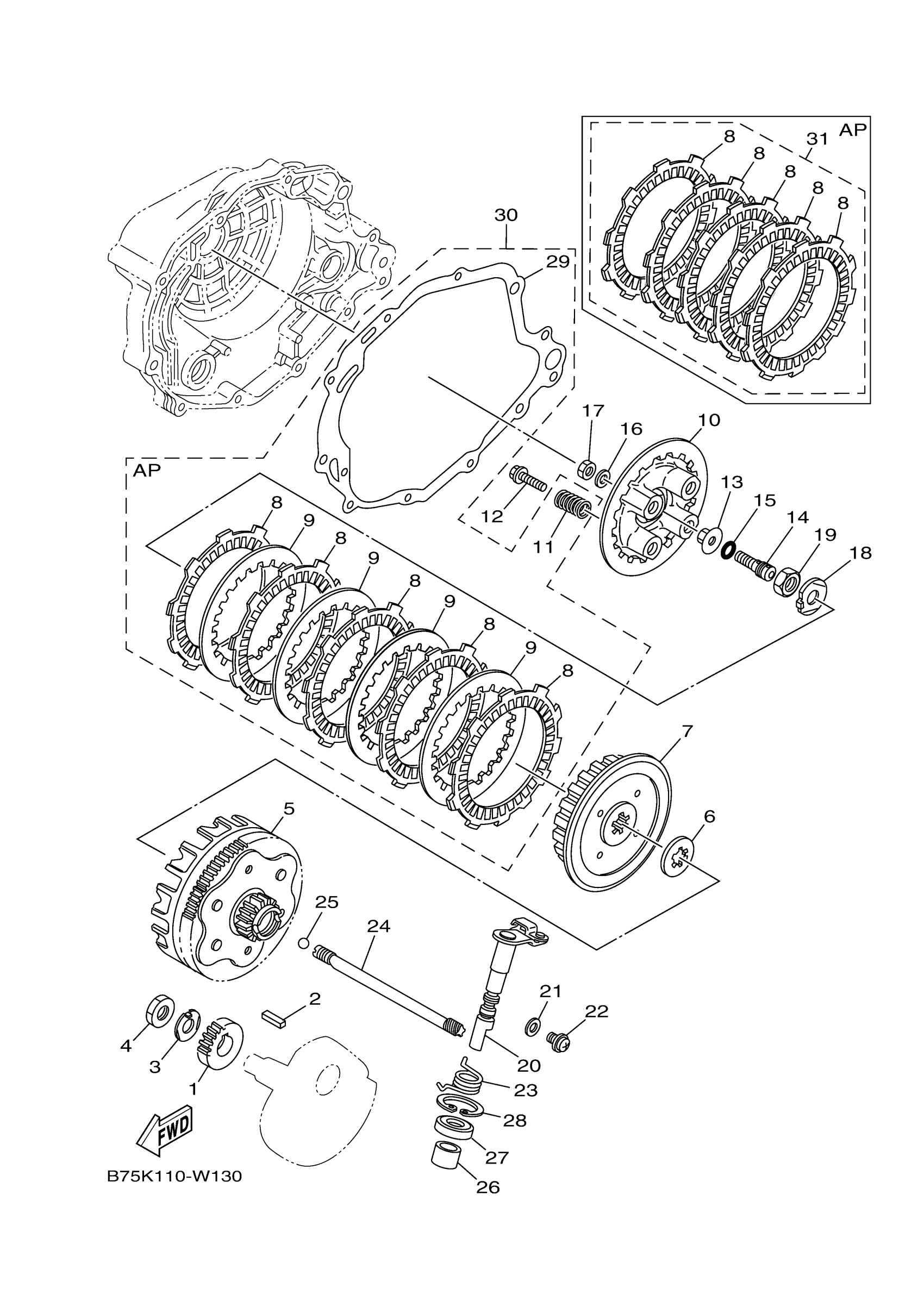

Yamaha TW200R1C (TW200 CA) B75W 2024 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

5H0-16111-00-00

Unavailable

2

KEY, STRAIGHT (5H0)

90282-05043-00

$9.49

3

WASHER, LOCK (15Y)

90215-14205-00

$8.49

4

NUT (5H0)

90170-14284-00

$9.49

5

PRIMARY DRIVEN GEAR COMP.

15A-16150-00-00

Unavailable

6

PLATE, THRUST 1

5H0-16154-00-00

Unavailable

7

BOSS, CLUTCH

2JX-16371-00-00

$102.99

8

PLATE, FRICTION

537-16321-00-00

$17.49

9

PLATE, CLUTCH 1

336-16324-10-00

$18.49

10

PLATE, PRESSURE 1

5H0-16351-00-00

$41.99

11

SPRING, COMPRESSION

90501-23700-00

$7.49

12

SCREW, WITH WASHER (537)

90159-05011-00

$3.23

13

PLATE, PUSH

1W1-16358-01-00

$23.99

14

ROD, PUSH 1

2JX-16356-00-00

Unavailable

15

O-RING (2H7)

93210-48364-00

$8.49

16

WASHER(6TA)

92907-06200-00

Unavailable

17

NUT(6TA)

95317-06600-00

Unavailable

18

WASHER, LOCK (25G)

90215-14186-00

Unavailable

19

NUT (5H0)

90170-14284-00

$9.49

20

PUSH LEVER ASSY

15A-16380-00-00

Unavailable

21

GASKET

90430-08119-00

Unavailable

22

SCREW 425163430000

90149-08067-00

Unavailable

23

SPRING, TORSION (15A)

90508-18537-00

Unavailable

24

ROD, PUSH 2

5H0-16357-00-00

Unavailable

25

BALL

93505-16006-00

Unavailable

26

BUSH (5H0)

90386-14103-00

Unavailable

27

OIL SEAL (3Y1)

93102-14209-00

Unavailable

28

CIRCLIP (3Y1)

93420-28055-00

Unavailable

29

GASKET, CRANKCASE COVER 3

4BE-15462-00-00

Unavailable

30

CLUTCH PLATE KIT

B75-W001G-00-00

Unavailable

31

FRICTION PLATE KIT

B75-W001M-00-00

Unavailable
