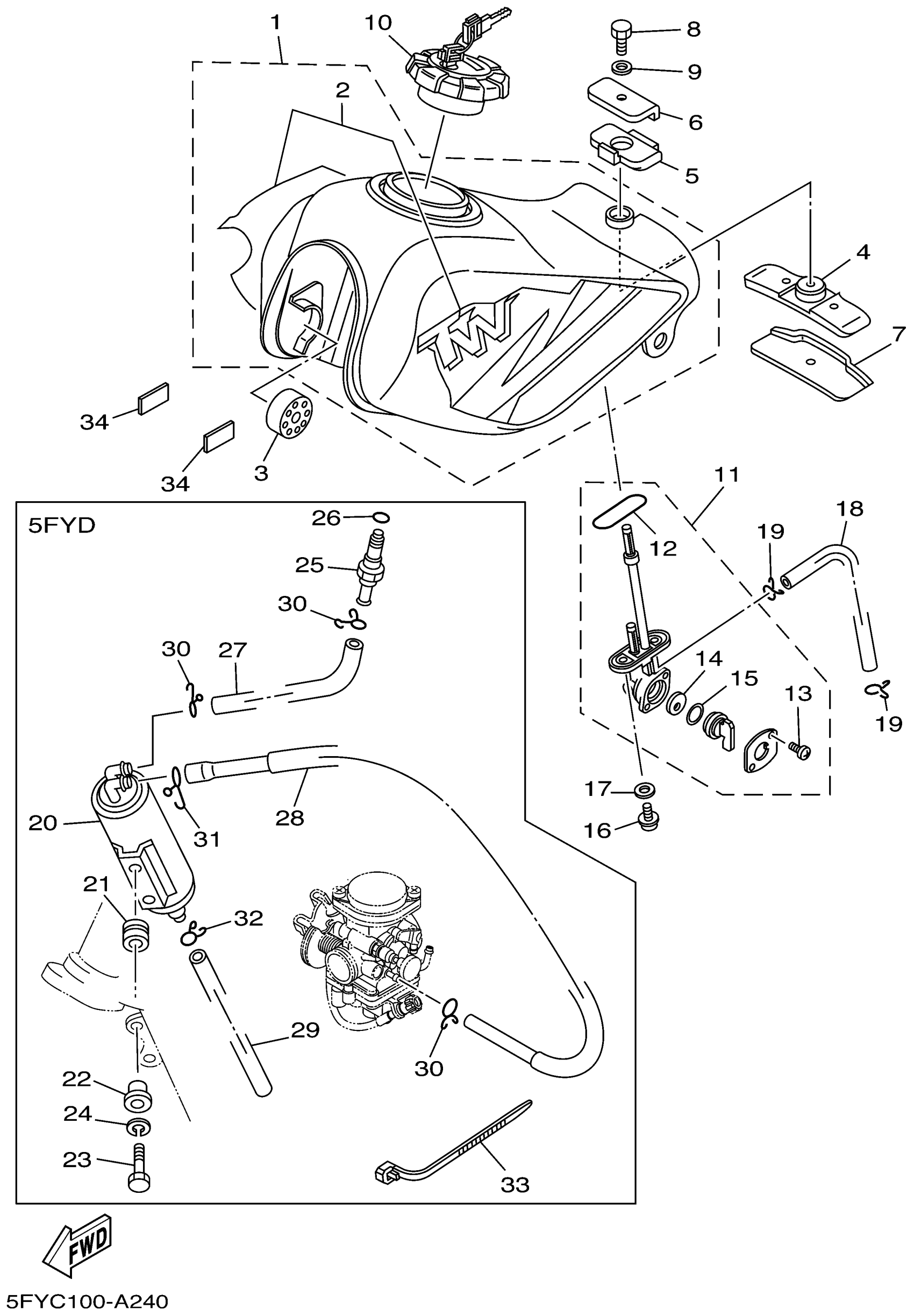

Yamaha TW200PC (TW200 CA) 5FYD 2002 FUEL TANK Diagram
#
Description
Price
1
FUEL TANK COMP. (PURPLISH WHITE SOLID 1)
2JX-Y2410-10-02
Unavailable
1
FUEL TANK COMP. (PURPLISH WHITE SOLID 1)
2JY-Y2410-10-0B
Unavailable
2
. GRAPHIC SET
5FY-24240-20-00
Unavailable
10
CAP ASSY
48Y-24602-00-00
Unavailable
10
CAP ASSY
56R-24602-00-00
Unavailable
14
VALVE PACKING
3AC-24523-00-00
Unavailable
15
SEAL, COCK
3AJ-24534-01-00
Unavailable
16
SCREW 256241430000
90149-06011-00
Unavailable
17
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
18
HOSE (L200)
90445-10752-00
Unavailable
19
CLIP
90467-090A2-00
Unavailable
20
CANISTER ASSY
4BE-24170-00-00
Unavailable
21
GROMMET(56R)
90480-15342-00
Unavailable
22
COLLAR(52E)
90387-063G3-00
Unavailable
23
BOLT, HEXAGON
97017-06025-00
Unavailable
25
ROLL OVER VALVE ASSY
20K-24180-00-00
Unavailable
26
O-RING (4G0)
93210-11453-00
Unavailable
27
HOSE (L130)
90445-10017-00
Unavailable
28
HOSE
90445-10045-00
Unavailable
29
.. HOSE (L240)
90445-11M27-00
Unavailable
30
CLIP
90467-090A2-00
Unavailable
31
CLIP
90467-100A1-00
Unavailable
32
CLIP(1JH)
90467-11106-00
Unavailable
33
CLAMP(4FM)
90464-15195-00
Unavailable
34
DAMPER, LOCATING 1
18A-21778-00-00
Unavailable
