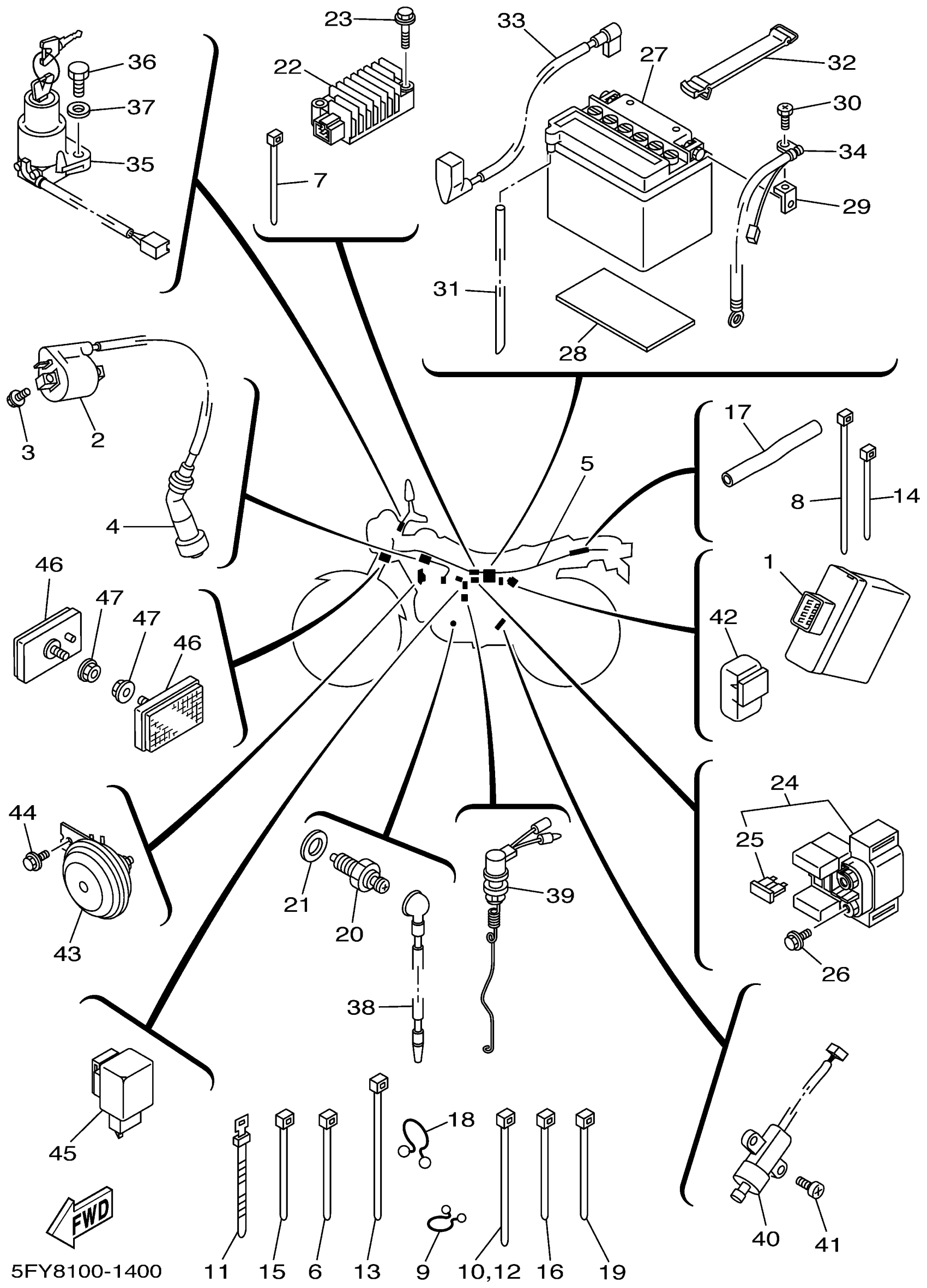

Yamaha TW200PC (TW200 CA) 5FYD 2002 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

5LB-85540-03-00

Unavailable

2

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

3

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

4

PLUG CAP ASSY

3NS-82370-00-00

$37.99

5

WIRE HARNESS ASSY

5FY-82590-10-00

Unavailable

6

CLAMP

5Y9-12491-00-00

$6.99

7

BAND

1UA-82591-00-00

$4.78

8

BAND

1UA-82591-00-00

$4.78

9

CLAMP

90464-25267-00

$7.49

10

BAND

1UA-82591-00-00

$4.78

11

BAND, SWITCH CORD

25G-83936-01-00

$4.78

12

BAND

1UA-82591-00-00

$4.78

13

CLAMP(MF1)

90464-15152-00

$5.60

14

CLAMP

5Y9-12491-00-00

$6.99

15

CLAMP

90465-10098-00

Unavailable

16

CLAMP

5Y9-12491-00-00

$6.99

17

HOSE(4CS)

90446-15381-00

Unavailable

18

CLAMP

90464-25267-00

$7.49

19

CLAMP

90465-10098-00

Unavailable

20

NEUTRAL SWITCH ASSY

4GY-82540-10-00

Unavailable

21

GASKET (1KH,1.0T)

90430-10148-00

Unavailable

22

RECTIFIER & REGULATOR ASSY

3TJ-81960-02-00

Unavailable

23

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

24

STARTER RELAY ASSY (RC19-022)

5EK-81940-02-00

Unavailable

25

FUSE (20A)

2GV-82151-00-00

Unavailable

26

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

27

YB7CA YUASA BATTERY

YB7-CA000-00-00

Unavailable

28

SEAT, BATTERY

51Y-82122-00-00

Unavailable

29

TERMINAL

5LB-8215C-00-00

Unavailable

30

SCREW, HEXAGON

90153-06001-00

Unavailable

31

HOSE (L1500)

90445-084J0-00

Unavailable

32

BAND,BATTERY

7H3-82131-00-00

Unavailable

33

WIRE, PLUS LEAD

5LB-82115-00-00

Unavailable

34

WIRE, MINUS LEAD

5EK-82116-02-00

Unavailable

35

MAIN SWITCH STEERING LOCK

5LB-82501-01-00

Unavailable

36

BOLT, HEXAGON

97017-06016-00

Unavailable

37

WASHER(6TA)

92907-06600-00

Unavailable

38

WIRE, LEAD

5FY-82541-00-00

Unavailable

39

STOP SWITCH ASSY

5VC-82530-01-00

Unavailable

40

SWITCH, SIDE STAND

3LD-82566-61-00

Unavailable

41

SCREW, PAN HEAD(JJ6)

98507-05016-00

Unavailable

42

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

43

HORN

5LB-83371-00-00

Unavailable

44

BOLT, FLANGE

95817-06012-00

Unavailable

45

FLASHER RELAY ASSY

4MY-83350-03-00

Unavailable

46

FRONT REFLECTOR ASSY

23V-85110-00-00

Unavailable

47

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
