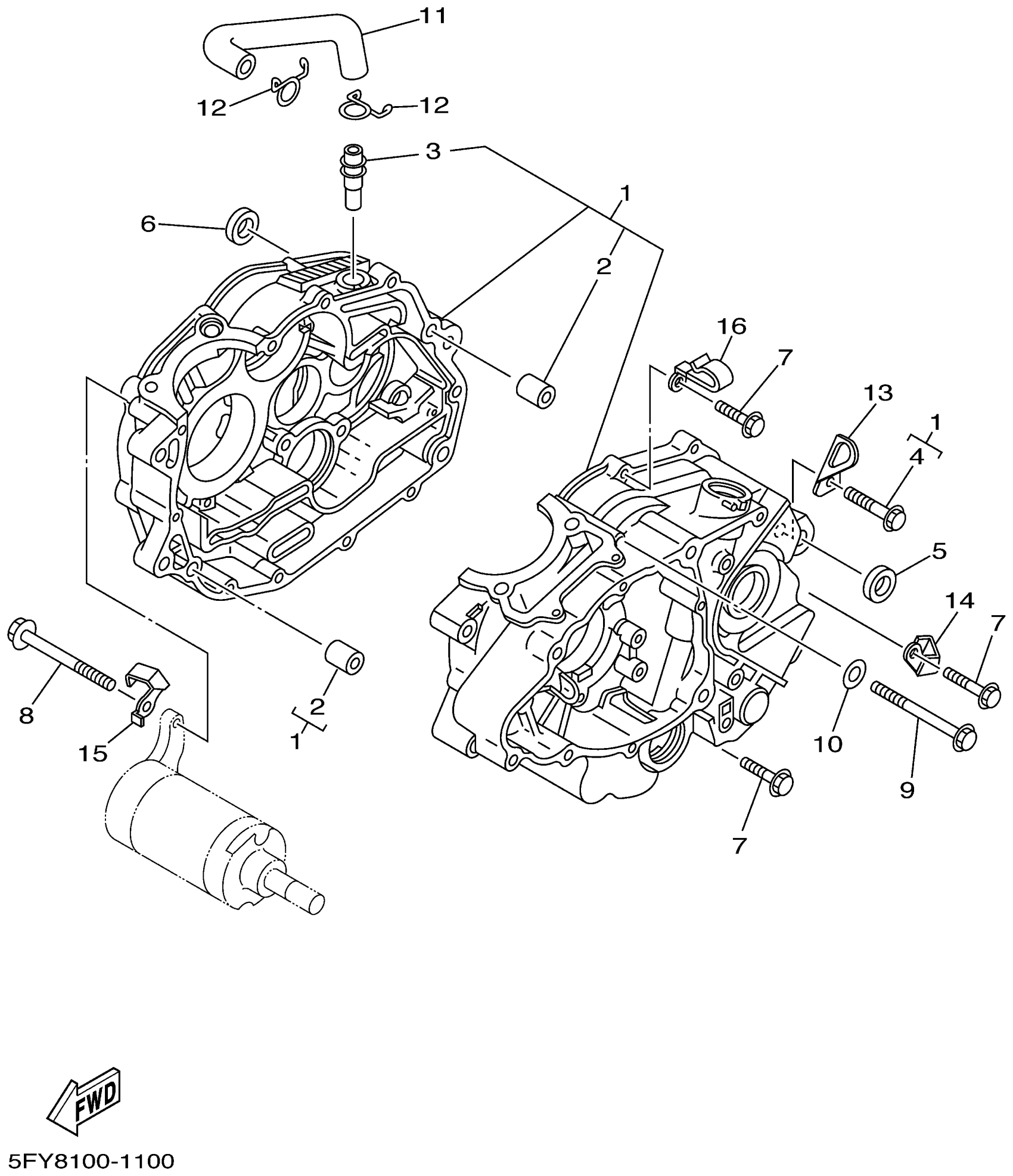

Yamaha TW200PC (TW200 CA) 5FYD 2002 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

3AW-15100-03-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

PIPE, BREATHER 2

371-11167-01-00

$13.49

4

SCREW, PAN

98507-06040-00

$3.22

5

COLLAR (15A)

90387-125F1-00

$3.02

6

COLLAR (15A)

90387-125F1-00

$3.02

7

BOLT, SMALL FLANGE

95027-06030-00

$3.98

8

BOLT, SMALL FLANGE

95027-06090-00

Unavailable

9

BOLT, FLANGE(4NM)

95027-06085-00

$9.49

10

GASKET 256113960000

90430-06014-00

Unavailable

11

PIPE, BREATHER 1

3Y1-11166-00-00

Unavailable

12

CLIP (371)

90467-14015-00

$8.49

13

CLAMP

90465-08020-00

Unavailable

14

CLAMP(4AJ)

90462-08225-00

$8.49

15

CLAMP(3RW)

90462-08224-00

Unavailable

16

CLAMP(4MX)

90465-06376-00

Unavailable
