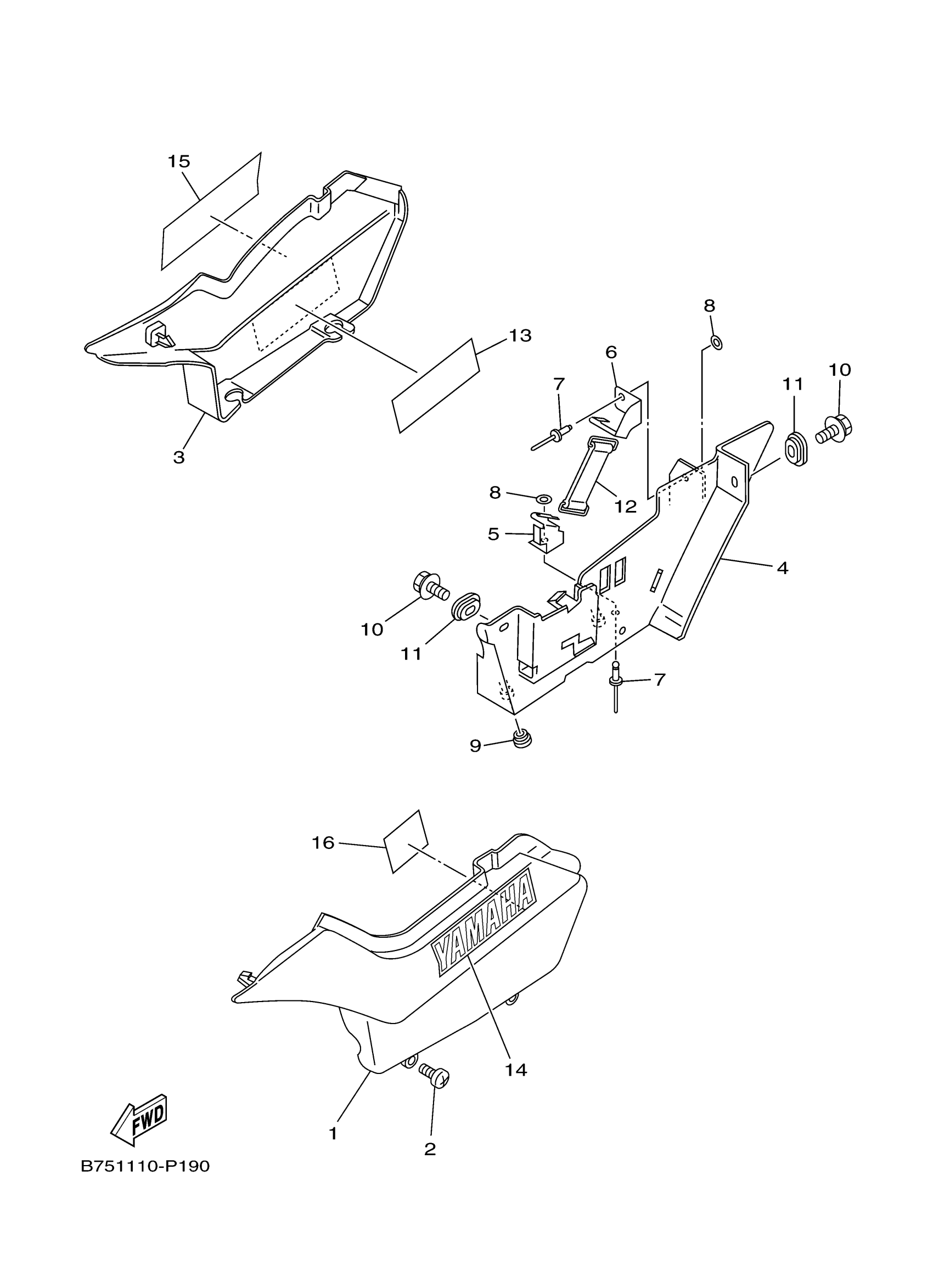

Yamaha TW200P1C (TW200 CA) B75T 2023 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

B75-21711-00-0X

Unavailable

2

SCREW, BINDING (10V)

90154-05013-00

$4.64

3

COVER, SIDE 2

B75-21721-00-0X

$74.52

4

BOX

5EK-2177A-00-00

$31.92

5

BRACKET 1

5EK-2175T-00-00

$14.11

6

BRACKET 2

5EK-2175U-00-00

Unavailable

7

RIVET,BLIND

90267-40080-00

Unavailable

8

WASHER, PLATE(26H)

90201-044H9-00

$6.22

9

GROMMET

90480-13014-00

$6.39

10

BOLT, WITH WASHER

90119-06152-00

$2.56

11

GROMMET(41Y)

90480-01401-00

$5.29

12

BAND, BATTERY

116-82131-00-00

$24.68

13

LABEL, NOTICE BATTERY

10D-2815N-00-00

Unavailable

14

EMBLEM, YAMAHA

5HP-2153A-01-00

$9.14

15

EMBLEM, YAMAHA

5HP-2153A-01-00

$9.14
