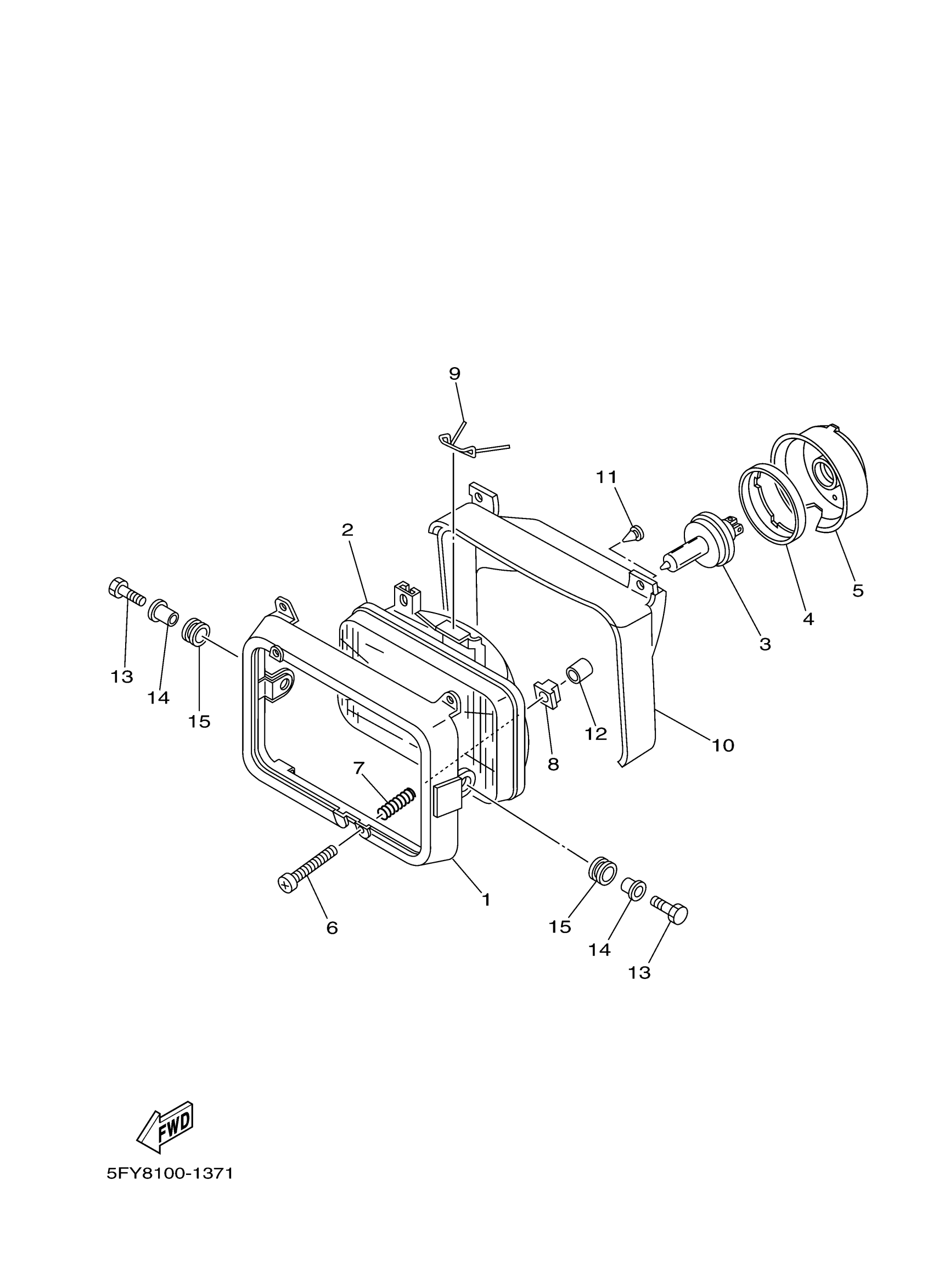

Yamaha TW200P1C (TW200 CA) B75T 2023 HEADLIGHT Diagram

#

Description
Price

1

RIM, HEADLIGHT

47J-84115-00-00

$148.99

2

LENS ASSY

5FY-84320-00-00

Unavailable

4

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

5

COVER, SOCKET

2F9-84397-01-00

$30.99

6

SCREW, RIM ADJUSTER

43F-84131-00-00

$9.99

7

SPRING, ADJUST

341-84332-60-00

$9.99

8

NUT, ADJUST

198-84334-60-00

$7.99

9

SET SPRING

55X-84124-00-00

$11.99

10

COVER, SOCKET

30X-84196-00-00

$28.99

11

CLIP COVER FITTING

10V-84198-00-00

Unavailable

12

PLUG

2RR-84178-00-00

$6.99

13

BOLT, HEXAGON

97017-06025-00

$4.24

14

COLLAR

90387-06158-00

$8.49

15

GROMMET 839774310000

90480-14023-00

$7.49
