Description

Price

1

MASTER CYLINDER SUB ASSY

4GY-25870-02-00

Unavailable

2

CYLINDER KIT, MAST

5RS-25807-03-00

$40.99

3

GASKET, DIAPHRAGM

3RW-25854-00-00

Unavailable

4

CAP, RESERVOIR

4GY-25852-01-00

$41.99

5

SCREW, FLAT

98707-04012-00

$2.18

6

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

WASHER(6TA)

92907-06600-00

$2.72

9

HOSE, BRAKE 1

5LB-25872-00-00

Unavailable

10

BOLT, UNION(3GM)

90401-10159-00

$11.49

11

WASHER, PLATE(481)

90201-10118-00

Unavailable

12

CLAMP

3TB-23467-01-00

$6.99

13

SCREW, PAN HEAD

98507-04018-00

$2.19

14

WASHER(JF2)

92907-04600-00

$1.71

15

HOSE (L200)

90445-05N13-00

$8.49

16

HOLDER, BRAKE HOSE 2

34X-25876-00-00

Unavailable

17

BOLT,SOCKET

91317-06010-00

Unavailable

18

BAND

1UA-82591-00-00

Unavailable

19

BAND

1UA-82591-00-00

Unavailable

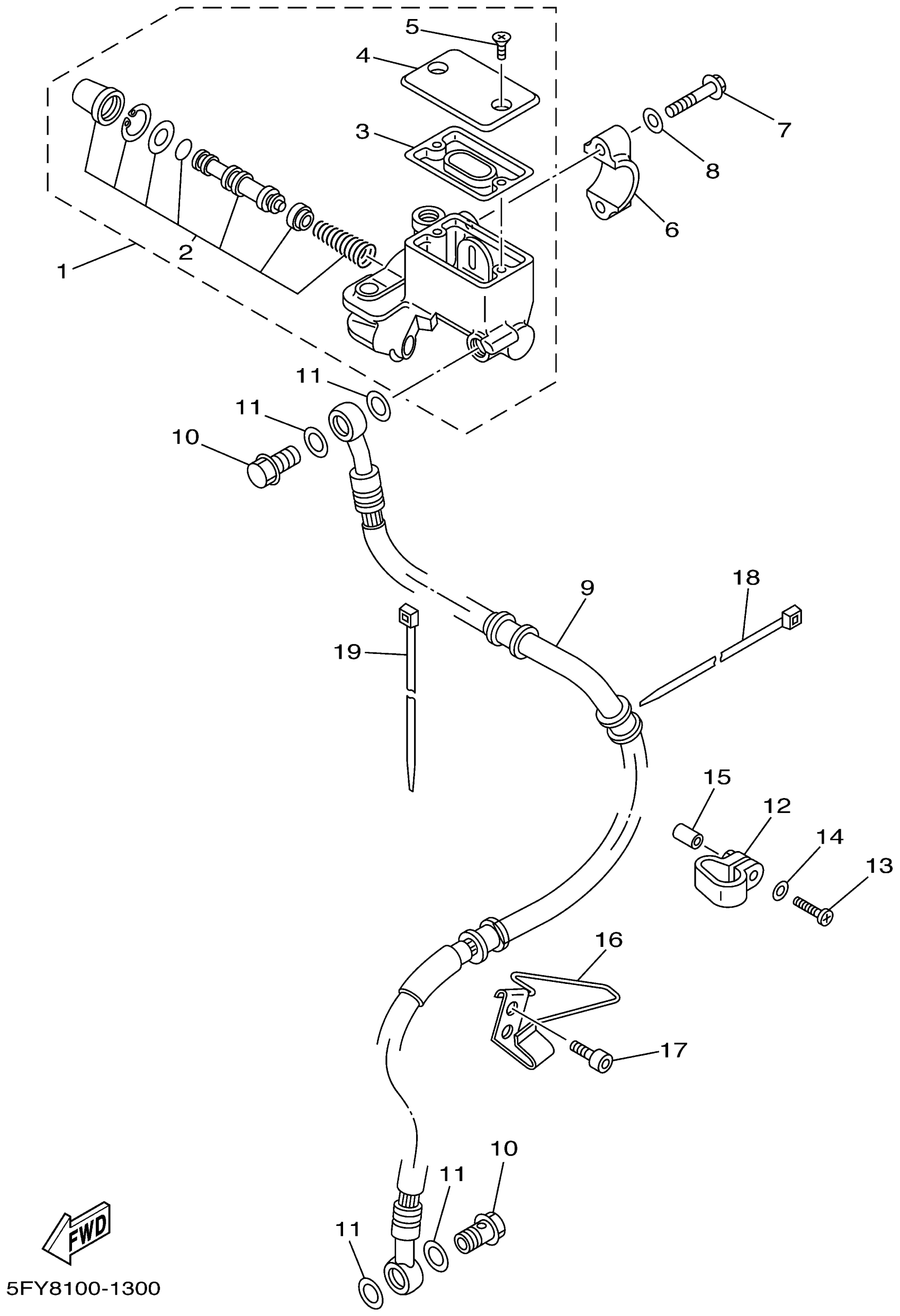

Yamaha TW200NC (TW200 CA) 5FY9 2001 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

CYLINDER KIT, MAST

GASKET, DIAPHRAGM

CAP, RESERVOIR

SCREW, FLAT

BRACKET, MASTER CYLINDER

BOLT, HEXAGON

WASHER(6TA)

HOSE, BRAKE 1

BOLT, UNION(3GM)

WASHER, PLATE(481)

CLAMP

SCREW, PAN HEAD

WASHER(JF2)

HOSE (L200)

HOLDER, BRAKE HOSE 2

BOLT,SOCKET

BAND

BAND
