Description

Price

1

FENDER, FRONT

3AW-21511-20-00

$83.99

2

BRACKET, FENDER

2JX-21512-00-00

$67.99

3

SCREW, C.R. BINDING (2T4)

90154-05004-00

$4.72

4

NUT, S/L FLANGE

95607-05200-00

$9.49

5

PLUG(2GU)

90338-12192-00

$8.49

6

BOLT,SOCKET

91317-06020-00

Unavailable

7

FENDER, REAR

3AW-21611-20-00

$149.99

8

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

9

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

10

BRACKET, LICENSE

2JX-21685-01-00

$62.99

11

BOLT, WITH WASHER

90119-06152-00

$7.49

12

BRACKET, REFLECTOR

2JX-21641-00-00

Unavailable

13

SCREW, WITH WASHER(52W)

90159-05121-00

$4.15

14

PLUG

90338-07018-00

$7.49

15

SEAL

2JX-21669-00-00

$8.99

16

FLAP

34X-21691-00-00

Unavailable

17

COVER, REAR FENDER

2JX-21651-00-00

Unavailable

18

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable

19

COLLAR (8G8)

90387-06681-00

Unavailable

20

EMBLEM, YAMAHA

99247-00080-00

Unavailable

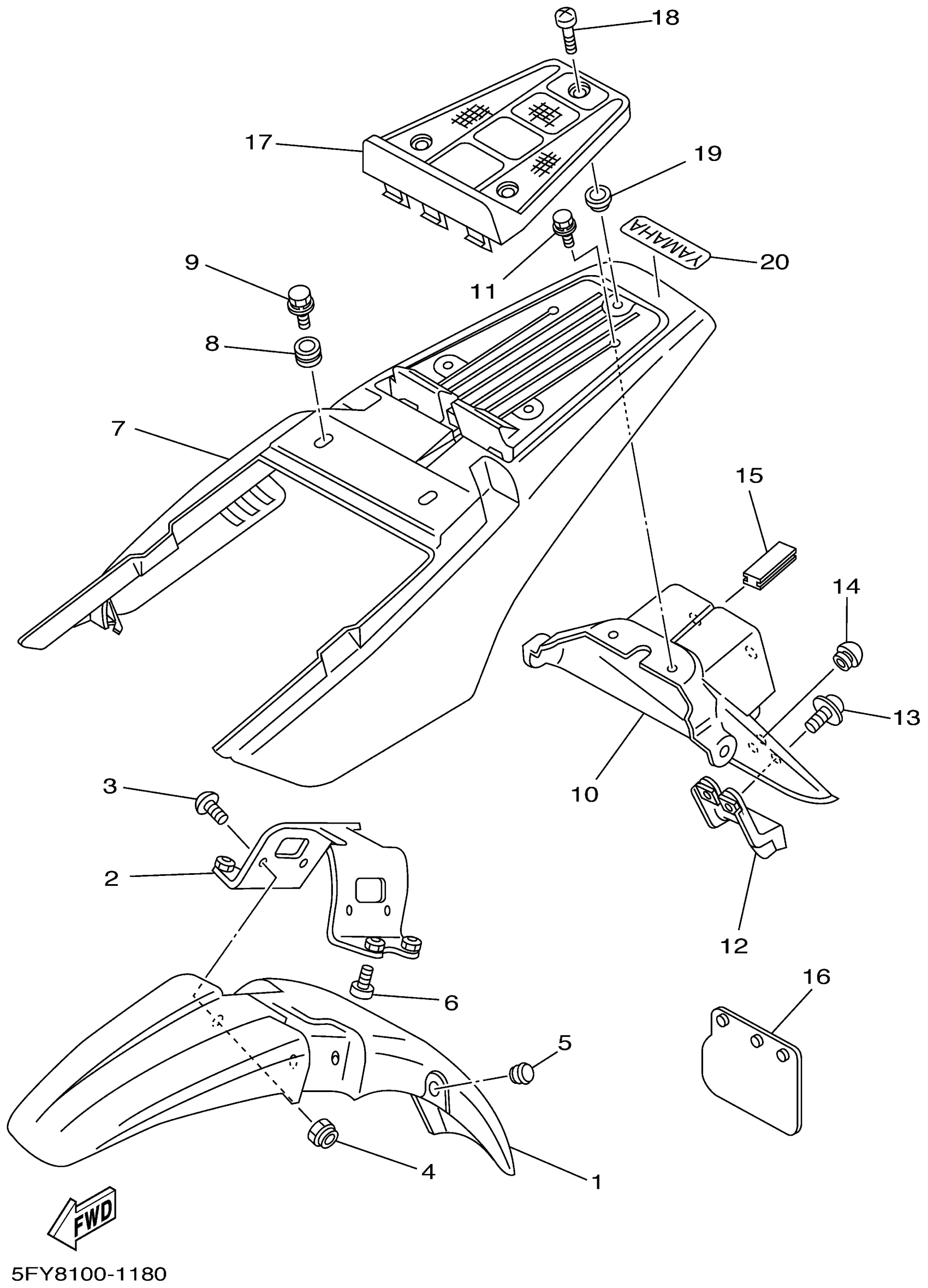

Yamaha TW200NC (TW200 CA) 5FY9 2001 FENDER Diagram

FENDER, FRONT

BRACKET, FENDER

SCREW, C.R. BINDING (2T4)

NUT, S/L FLANGE

PLUG(2GU)

BOLT,SOCKET

FENDER, REAR

DAMPER, SIDE COVER (437)

BOLT, WITH WASHER (10V)

BRACKET, LICENSE

BOLT, WITH WASHER

BRACKET, REFLECTOR

SCREW, WITH WASHER(52W)

PLUG

SEAL

FLAP

COVER, REAR FENDER

BOLT, FLANGE(4DU)

COLLAR (8G8)

EMBLEM, YAMAHA
