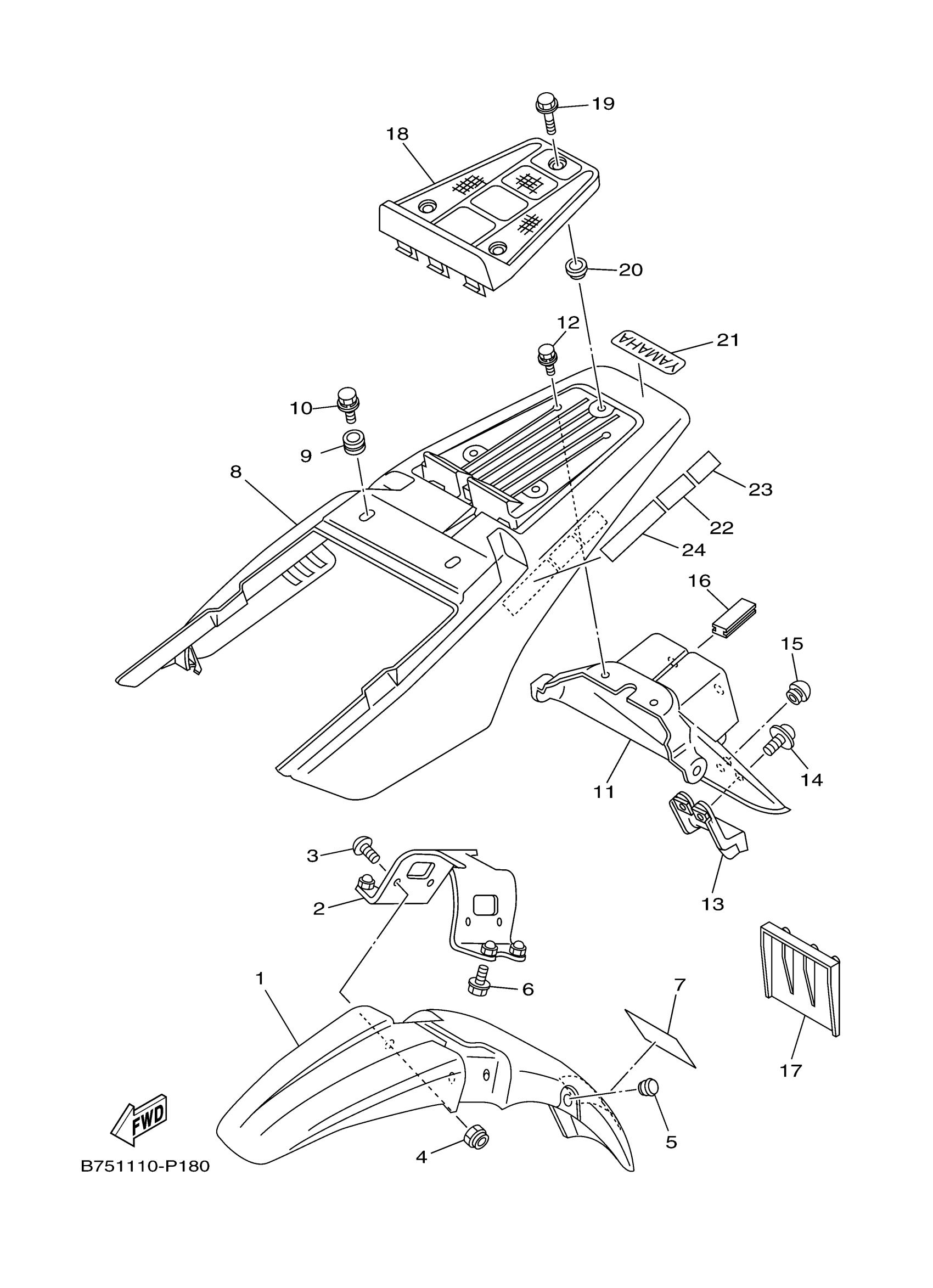

Yamaha TW200N1C (TW200 CA) B75P 2022 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

B75-21511-00-00

$33.34

2

BRACKET, FENDER

2JX-21512-00-00

$54.82

3

SCREW, C.R. BINDING (2T4)

90154-05004-00

$3.02

4

NUT, S/L FLANGE

95607-05200-00

$6.39

5

PLUG(2GU)

90338-12192-00

$5.76

6

BOLT, FLANGE

95817-06020-00

$2.52

7

LABEL, TIRE

10D-21668-00-00

$6.42

8

FENDER, REAR

B75-21611-00-00

$56.31

9

DAMPER, SIDE COVER (437)

90480-12053-00

$5.39

10

BOLT, WITH WASHER

90119-06201-00

$4.93

11

BRACKET, LICENSE

2JX-21685-01-00

$57.05

12

BOLT, WITH WASHER

90119-06152-00

$2.56

13

BRACKET, REFLECTOR

2JX-21641-00-00

Unavailable

14

SCREW, WITH WASHER(52W)

90159-05121-00

$2.24

15

PLUG

90338-07018-00

$5.42

16

SEAL

2JX-21669-00-00

Unavailable

17

FLAP

5VC-21691-00-00

Unavailable

18

COVER, REAR FENDER

2JX-21651-10-00

Unavailable

19

BOLT, FLANGE

95024-06014-00

Unavailable

20

COLLAR (8G8)

90387-06681-00

Unavailable

21

EMBLEM, YAMAHA

99244-00080-00

Unavailable

22

LABEL 1

3MX-24875-A0-00

Unavailable

23

LABEL, CAUTION

3TB-24877-A1-00

Unavailable

24

LABEL, CAUTION

3JJ-28446-A2-00

Unavailable
