2000 Yamaha Trailway CA (TW200MC) Starter Diagram

← All diagrams

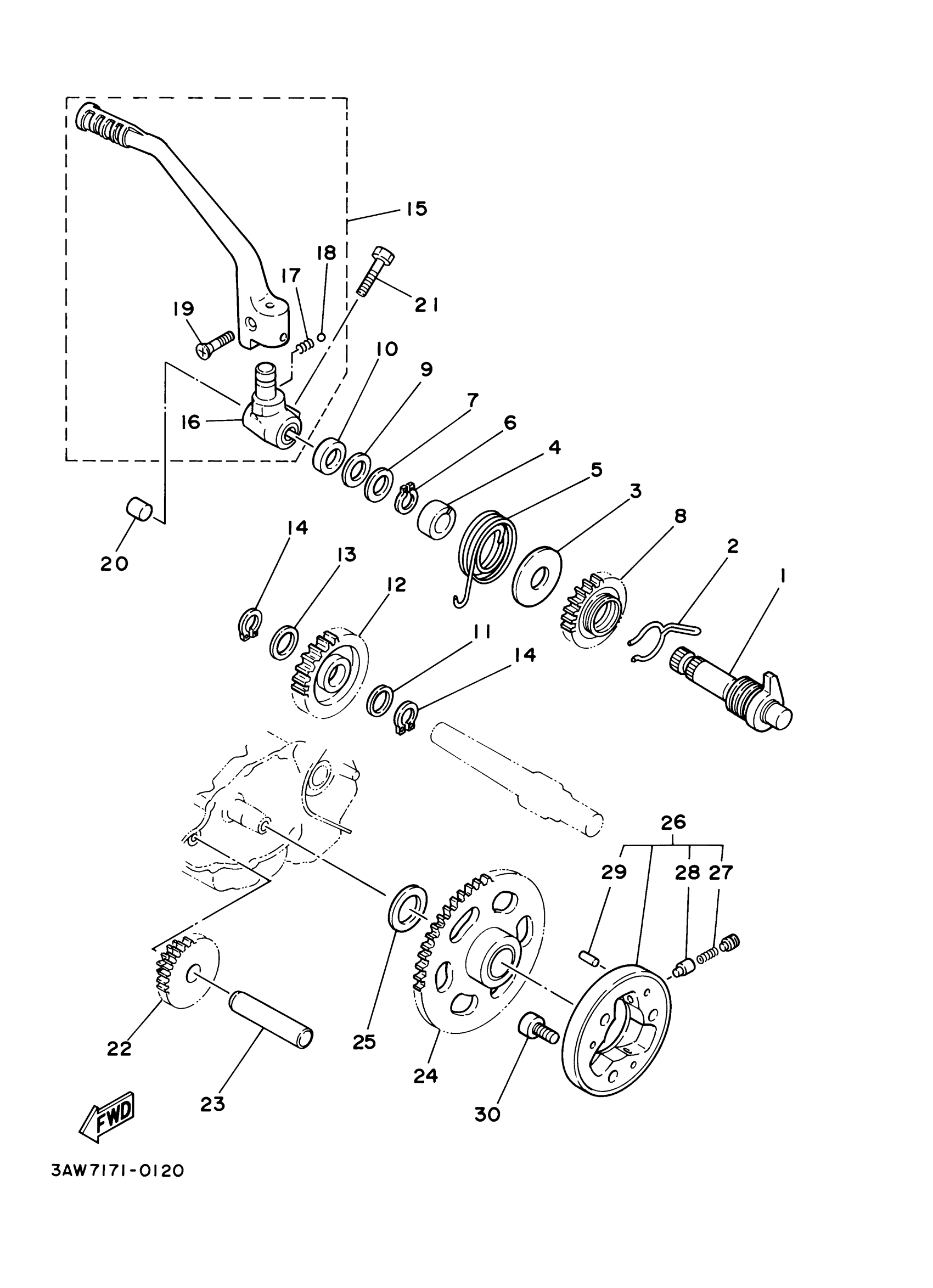

Find the part on the Starter diagram for your 2000 Yamaha Trailway CA (TW200MC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha Trailway CA (TW200MC) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK SHAFT ASSY

15A-15660-01-00

—
Out of stock

2

CLIP (15A)

90468-26122-00

1
Out of stock

3

COVER, SPRING

401-15676-00-00

1
Out of stock

4

SPACER

15A-15666-00-00

1
Out of stock

5

SPRING, TORSION (15A)

90508-26538-00

1
Out of stock

6

CIRCLIP(1EY)

99009-17400-00

1
Out of stock

7

WASHER, PLATE (15A)

90201-175F6-00

1
Out of stock

8

GEAR, KICK

36X-15641-00-00

—
Out of stock

9

WASHER (15A)

90209-17226-00

1
Out of stock

10

OIL SEAL (15A)

93102-17263-00

1
Out of stock

11

WASHER, PLATE (15A)

90201-173F4-00

1
Out of stock

12

GEAR, KICK IDLE

15A-15651-01-00

1
Out of stock

13

WASHER, CLAW (15A)

90214-17028-00

1
Out of stock

14

CIRCLIP(1EY)

99009-17400-00

1
Out of stock

15

KICK CRANK ASSY

54G-15620-01-00

1
Out of stock

16

BOSS, KICK CRANK

54G-15621-00-00

—
Out of stock

17

SPRING COMPRESSION278156220000

90501-12081-00

—
Out of stock

18

BALL (12R)

93507-32031-00

—
Out of stock

19

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

—
Out of stock

20

PLUG 288251390000

90338-18014-00

—
Out of stock

21

BOLT, HEXAGON

97017-08030-00

—
Out of stock

22

GEAR, IDLER 1

2HT-15512-00-00

—
Out of stock

23

SHAFT 1

5H0-15521-00-00

—
Out of stock

24

GEAR, IDLER 2

5H0-15517-00-00

—
Out of stock

25

WASHER, PLATE(1FK)

90201-256K6-00

—
Out of stock

26

STARTER CLUTCH OUTER ASSY

4H7-15580-10-00

—
Out of stock

27

SPRING, COMPRESSION (4H7)

90501-04596-00

—
Out of stock

28

CAP, STARTER CLUTCH

1J7-15583-01-00

—
Out of stock

29

PIN,DOWEL(341)

93615-12088-00

—
Out of stock

30

BOLT, SOCKET

91317-08016-00

—
Out of stock
