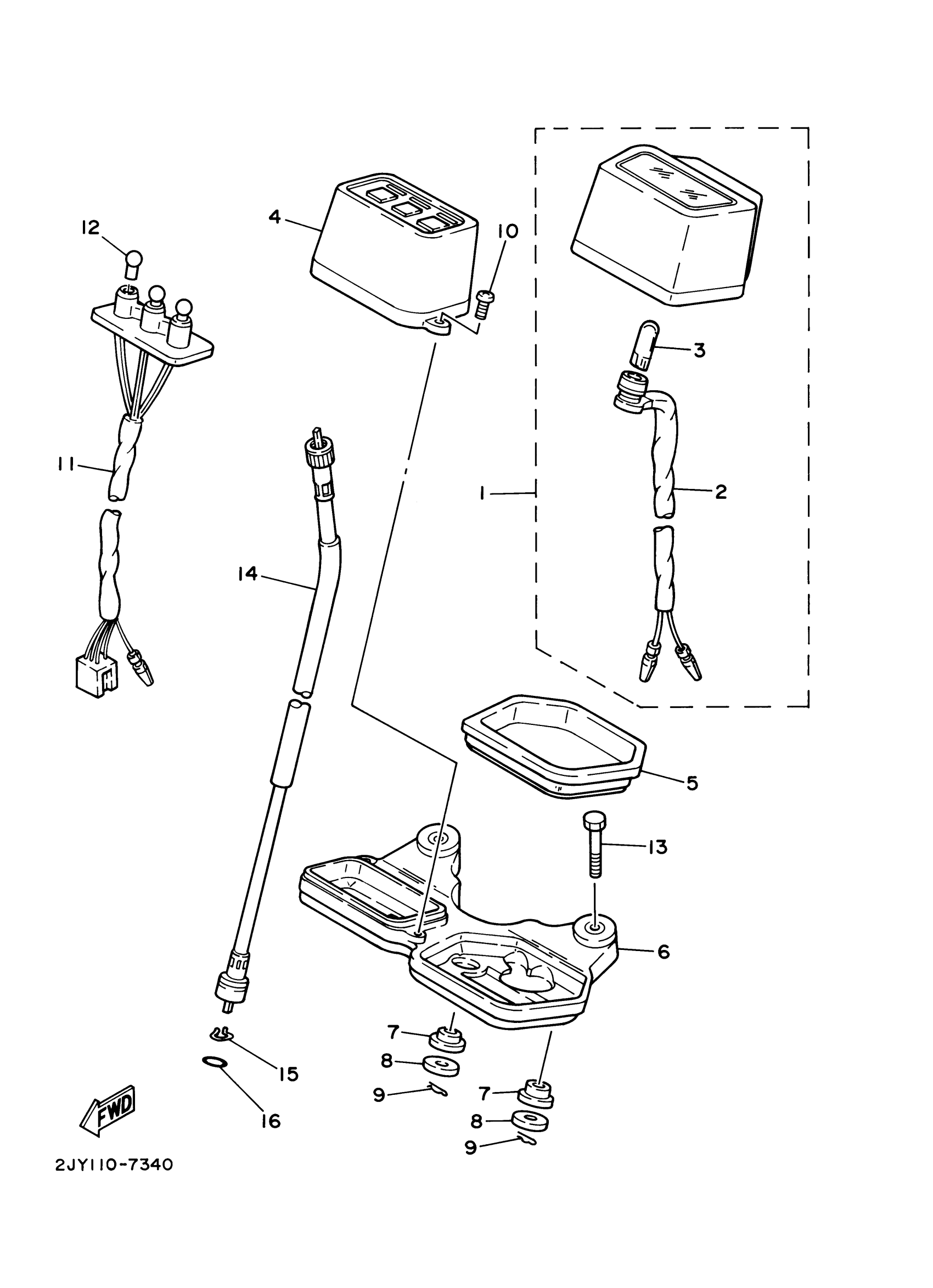

Yamaha TW200MC (TRAILWAY CA) 5FY6 2000 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSY

2JX-83510-B1-00

$201.39

2

SOCKET CORD ASSY

5E2-83509-20-00

$24.52

3

BULB, MTR.12V3.4W

4G1-84744-00-XX

$2.64

4

PILOT BOX, UPPER

5EK-83568-00-00

$62.23

5

DAMPER

5Y1-83513-00-00

Unavailable

6

BRACKET, METER

15A-83519-00-00

$43.71

7

DAMPER 2

1M1-83526-01-00

$3.52

8

WASHER PLATE 829771780000

90201-05033-00

$6.62

9

CLIP (156-83525-00)

90468-10050-00

$2.16

10

SCREW, TAPPING (15A)

90164-04008-00

$6.80

11

SOCKET CORD ASSY

15A-83509-01-00

$28.73

12

BULB (12V-3.4W)

123-83516-21-00

$3.52

13

BOLT, FLANGE

95817-06040-00

$4.24

14

SPEEDOMETER CABLE ASSY

1JN-83550-02-00

$35.21

15

RING, STOP

102-25137-00-00

$5.08

16

O-RING (26H)

93210-14579-00

Unavailable
