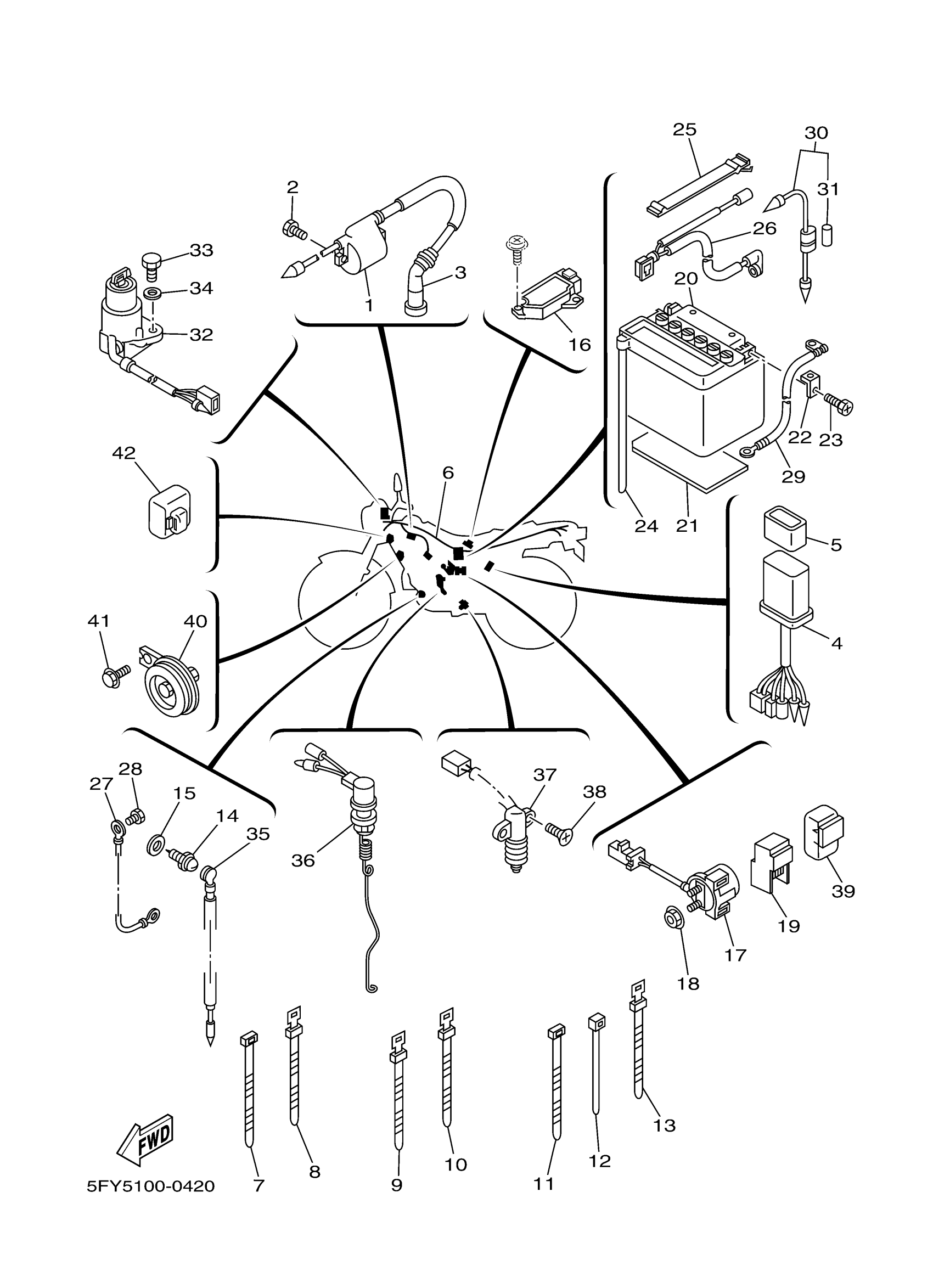

Yamaha TW200MC (TRAILWAY CA) 5FY6 2000 ELECTRICAL 1 Diagram

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

PLUG CAP ASSY

3NS-82370-00-00

$37.99

C.D.I. UNIT ASSEMBLY

2YG-85540-10-00

Unavailable

BAND

34X-85546-00-00

Unavailable

WIRE HARNESS ASSEMBLY

2YG-82590-10-00

Unavailable

BAND, SWITCH CORD

437-83936-11-00

$4.63

BAND, SWITCH CORD

25G-83936-01-00

$4.78

BAND, SWITCH CORD

437-83936-01-00

$7.99

BAND, SWITCH CORD

437-83936-01-00

$7.99

BAND, SWITCH CORD

437-83936-11-00

$4.63

BAND

1UA-82591-00-00

$4.78

BAND, SWITCH CORD

437-83936-01-00

$7.99

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

GASKET (1KH,1.0T)

90430-10148-00

$5.60

RECTIFIER & REGULATOR ASSY

47X-81960-A3-00

Unavailable

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

Unavailable

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

RELAY ASSY

12R-81950-02-00

Unavailable

YB7CA YUASA BATTERY

YB7-CA000-00-00

Unavailable

SEAT, BATTERY

51Y-82122-00-00

Unavailable

TERMINAL 1

2JX-82103-00-00

Unavailable

SCREW, HEXAGON (5G2)

90153-06032-00

Unavailable

HOSE (L1500)

90445-084J0-00

Unavailable

BAND,BATTERY

7H3-82131-00-00

Unavailable

WIRE,PLUS LEAD

2JX-82115-00-00

Unavailable

WIRE, MINUS LEAD

5H0-82116-00-00

Unavailable

BOLT (3H6)

90109-06557-00

Unavailable

WIRE, MINUS LEAD

2JX-82116-00-00

Unavailable

FUSE HOLDER ASSY

2TV-82150-02-00

Unavailable

FUSE (12V-15A)

4X7-82151-00-00

Unavailable

MAIN SWITCH STEERING LOCK

2GK-82501-01-00

Unavailable

BOLT, HEXAGON

97017-06016-00

Unavailable

WASHER(6TA)

92907-06600-00

Unavailable

WIRE, LEAD

2JX-82541-00-00

Unavailable

STOP SWITCH ASSY

5VC-82530-01-00

Unavailable

SWITCH, SIDE STAND

1VJ-82566-00-00

Unavailable

SCREW, FLAT

98707-05016-00

Unavailable

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

HORN

4LR-83371-11-00

Unavailable

BOLT, FLANGE

95817-06012-00

Unavailable

FLASHER RELAY ASSY

30X-83350-20-00

Unavailable
