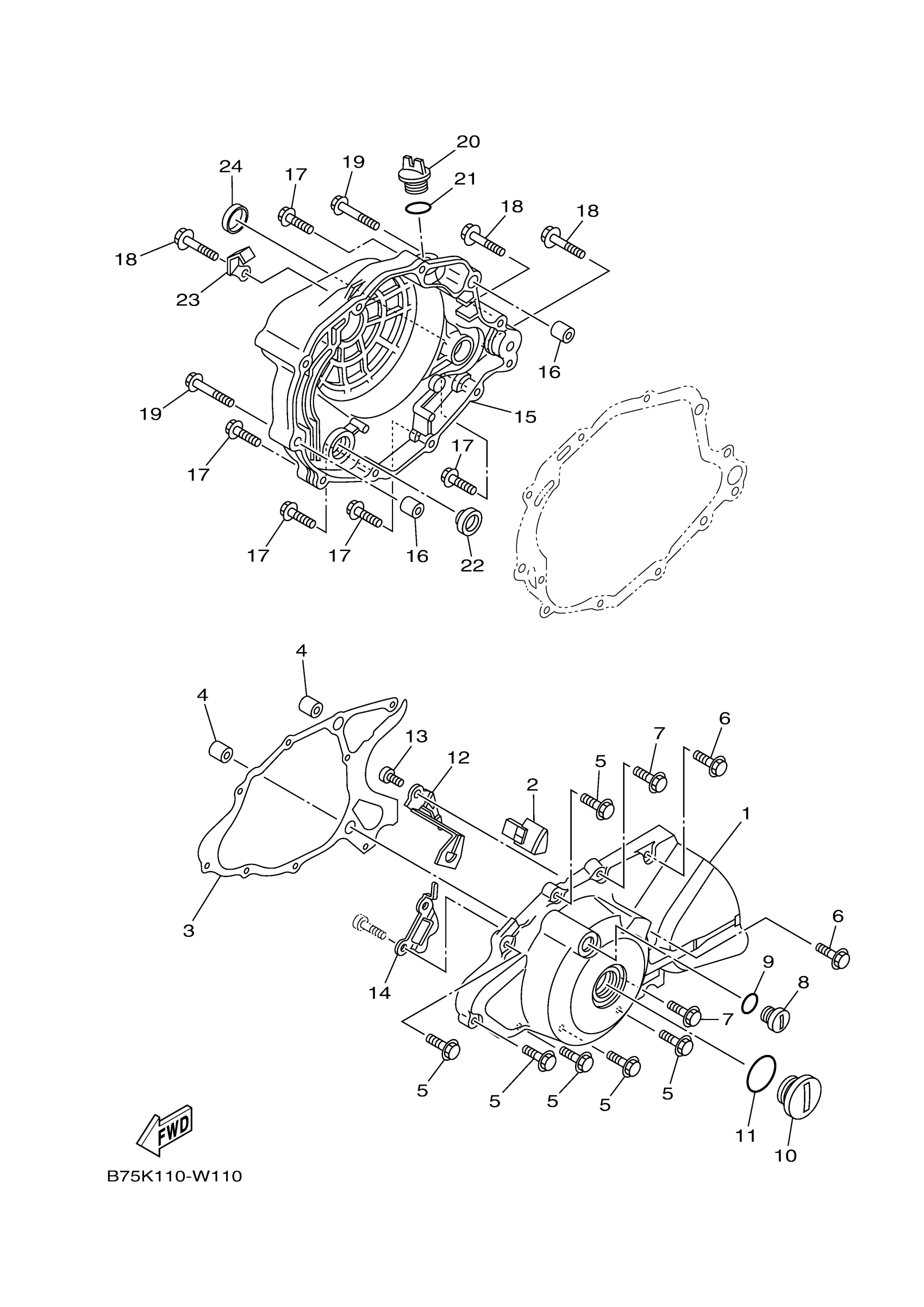

Yamaha TW200M1C (TW200 CA) B75L 2021 CRANKCASE COVER 1 Diagram

#

Description
Price

1

CRANKCASE COVER ASSY 1

5EK-15410-00-00

$354.99

2

GUIDE, INLET

2JX-15377-00-00

$32.99

3

GASKET, CRANKCASE COVER 1

3AW-15451-03-00

$17.49

4

PIN, DOWEL

99530-12016-00

$4.89

5

BOLT, SMALL FLANGE

95027-06025-00

$4.16

6

BOLT, SMALL FLANGE

95027-06025-00

$4.16

7

BOLT, SMALL FLANGE

95027-06035-00

$2.22

8

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

9

O-RING (2H9)

93210-14369-00

$7.49

10

PLUG, STRAIGHT SCREW (15A)

90340-32080-00

$32.99

11

O-RING (341)

93210-32172-00

$7.49

12

CLAMP(4JG)

90465-08364-00

$24.99

13

BOLT,SOCKET

91317-06010-00

$9.49

14

CLAMP

90462-16096-00

Unavailable

15

COVER, CRANKCASE 3

15A-15431-01-00

$189.99

16

PIN, DOWEL

99530-12016-00

$4.89

17

BOLT, SMALL FLANGE

95027-06025-00

$4.16

18

BOLT, SMALL FLANGE

95027-06035-00

$2.22

19

BOLT, SMALL FLANGE

95027-06045-00

Unavailable

20

PLUG, OIL

3Y1-15363-10-00

Unavailable

21

O-RING (646)

93210-19123-00

Unavailable

22

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

23

CLAMP(4AJ)

90462-08225-00

Unavailable

24

PLUG, BLIND 1

55X-15167-00-00

Unavailable
