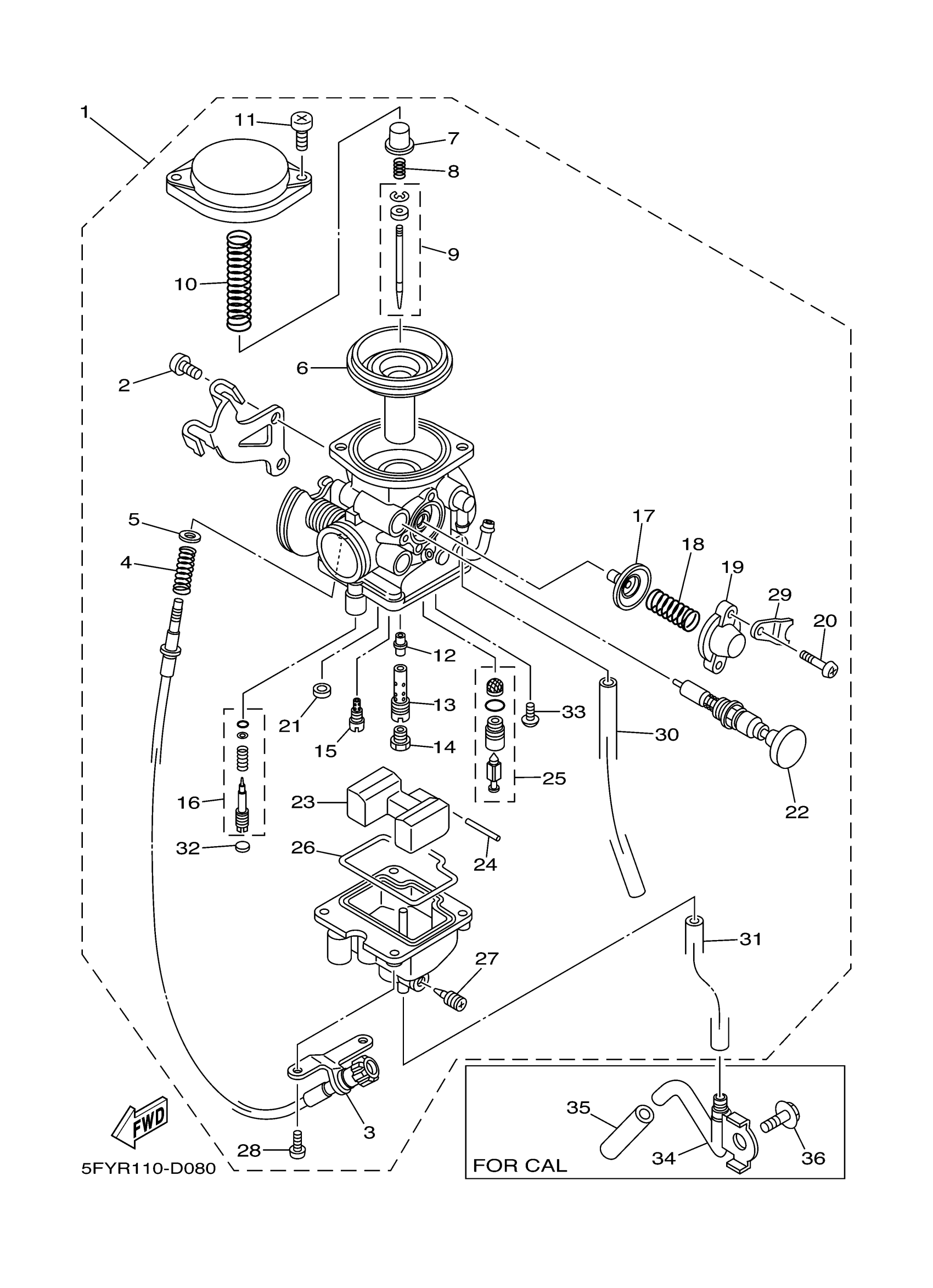

Yamaha TW200M1C (TW200 CA) B75L 2021 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

5FY-14301-10-00

$578.99

2

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

3

SCREW, THROTTLE

5LB-14321-00-00

$101.99

4

SPRING, THROTTLE STOP

2JX-14333-00-00

$7.99

5

WASHER, PLAIN

5LB-14357-00-00

$4.37

6

SUCTION PISTON ASSY

5LB-1434A-00-00

$88.99

7

SEAT, SPRING

5LB-14936-00-00

Unavailable

8

SPRING

5LB-14275-00-00

$4.78

9

NEEDLE

5FY-14336-00-00

$29.99

10

SPRING

5LB-14286-00-00

$10.99

11

SCREW

5LB-14216-00-00

$5.49

12

NOZZLE, MAIN

5LB-14341-00-00

$40.99

13

BLEED, MAIN NOZZLE

5LB-14341-10-00

Unavailable

14

JET, MAIN (#126)

5FY-14343-63-00

Unavailable

15

JET, PILOT (#31)

5LB-14342-65-00

$22.99

16

PILOT SCREW SET

5LB-14105-00-00

Unavailable

17

DIAPHRAGM ASSY 1

5LB-14368-00-00

Unavailable

18

SPRING

5LB-14589-00-00

Unavailable

19

COVER 1

5LB-14293-00-00

Unavailable

20

SCREW, LEVER FITTING

214-24535-00-00

Unavailable

21

PLUG

50M-14355-01-00

Unavailable

22

PLUNGER, STARTER

5FY-14371-00-00

Unavailable

23

FLOAT

5LB-14385-00-00

Unavailable

24

PIN, FLOAT

5LB-14386-00-00

Unavailable

25

NEEDLE VALVE ASSY

5LB-14390-00-00

Unavailable

26

GASKET, FLOAT CHAMBER

5LB-14384-00-00

Unavailable

27

AIR SCREW SET

4JP-14104-00-00

Unavailable

28

SCREW

5LB-14592-00-00

Unavailable

29

BRACKET 2

5LB-14292-00-00

Unavailable

30

PIPE

5LB-14197-00-00

Unavailable

31

PIPE

5FY-14196-00-00

Unavailable

32

PLUG

4KN-1432A-00-00

Unavailable

33

SCREW, BIND(6L2)

98980-04006-00

Unavailable
