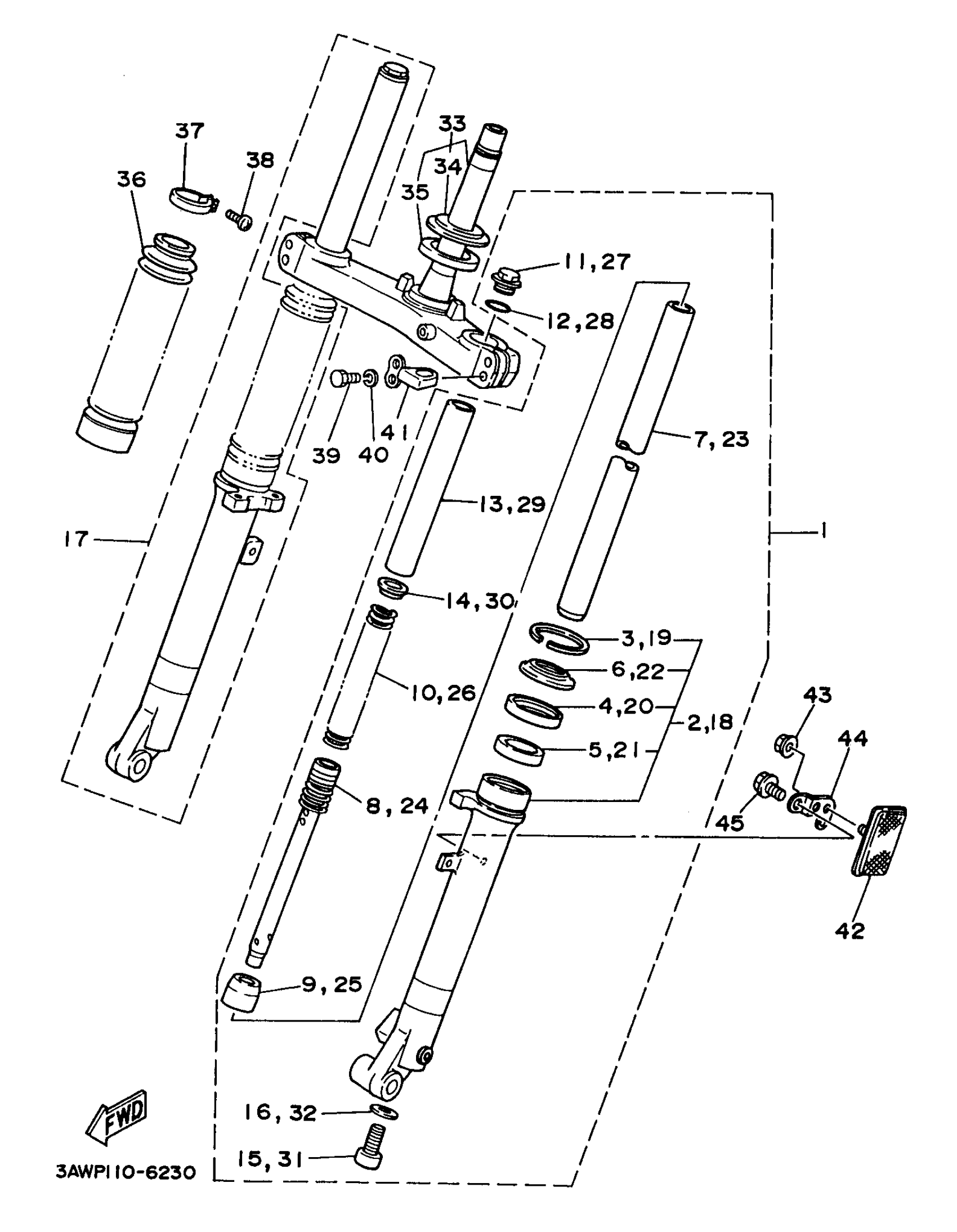

Yamaha TW200LC (TRAILWAY CA) 5FY3 1999 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSEMBLY (L.H)
2JX-23102-00-00
Unavailable
2
. TUBE, OUTER (LEFT)
2JX-23126-00-00
Unavailable
8
CYLINDER COMP., FRONT FORK
2JX-23170-00-00
Unavailable
9
. SPINDLE, TAPER
39K-23173-00-00
Unavailable
13
SPACER
22U-23118-01-00
Unavailable
14
. SEAT, SPRING UPPER
583-23142-00-00
Unavailable
16
GASKET
509-23158-L0-00
Unavailable
17
FRONT FORK ASSEMBLY (R.H)
2JX-23103-00-00
Unavailable
18
. TUBE, OUTER (RIGHT)
2JX-23136-00-00
Unavailable
24
CYLINDER COMP., FRONT FORK
2JX-23170-00-00
Unavailable
25
. SPINDLE, TAPER
39K-23173-00-00
Unavailable
29
SPACER
22U-23118-01-00
Unavailable
30
. SEAT, SPRING UPPER
583-23142-00-00
Unavailable
32
GASKET
509-23158-L0-00
Unavailable
33
UNDER BRACKET COMP.
3LY-23340-01-00
Unavailable
34
RACE, BALL 1
B6E-23411-00-00
Unavailable
35
SEAL, DUST
164-23462-00-00
Unavailable
36
BOOT
2JX-23191-20-00
Unavailable
37
BAND, BOOT
2K5-23192-00-00
Unavailable
38
SCREW, BOOT BAND
1W4-23194-L0-00
Unavailable
39
BOLT
97013-08035-00
Unavailable
40
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
41
HOLDER, CABLE
5Y1-23317-00-00
Unavailable
42
FRONT REFLECTOR ASSY
23V-85110-00-00
Unavailable
43
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
44
BRACKET, REFLECTOR 1
2JX-85112-00-00
Unavailable
45
BOLT, FLANGE
95817-06008-00
Unavailable
