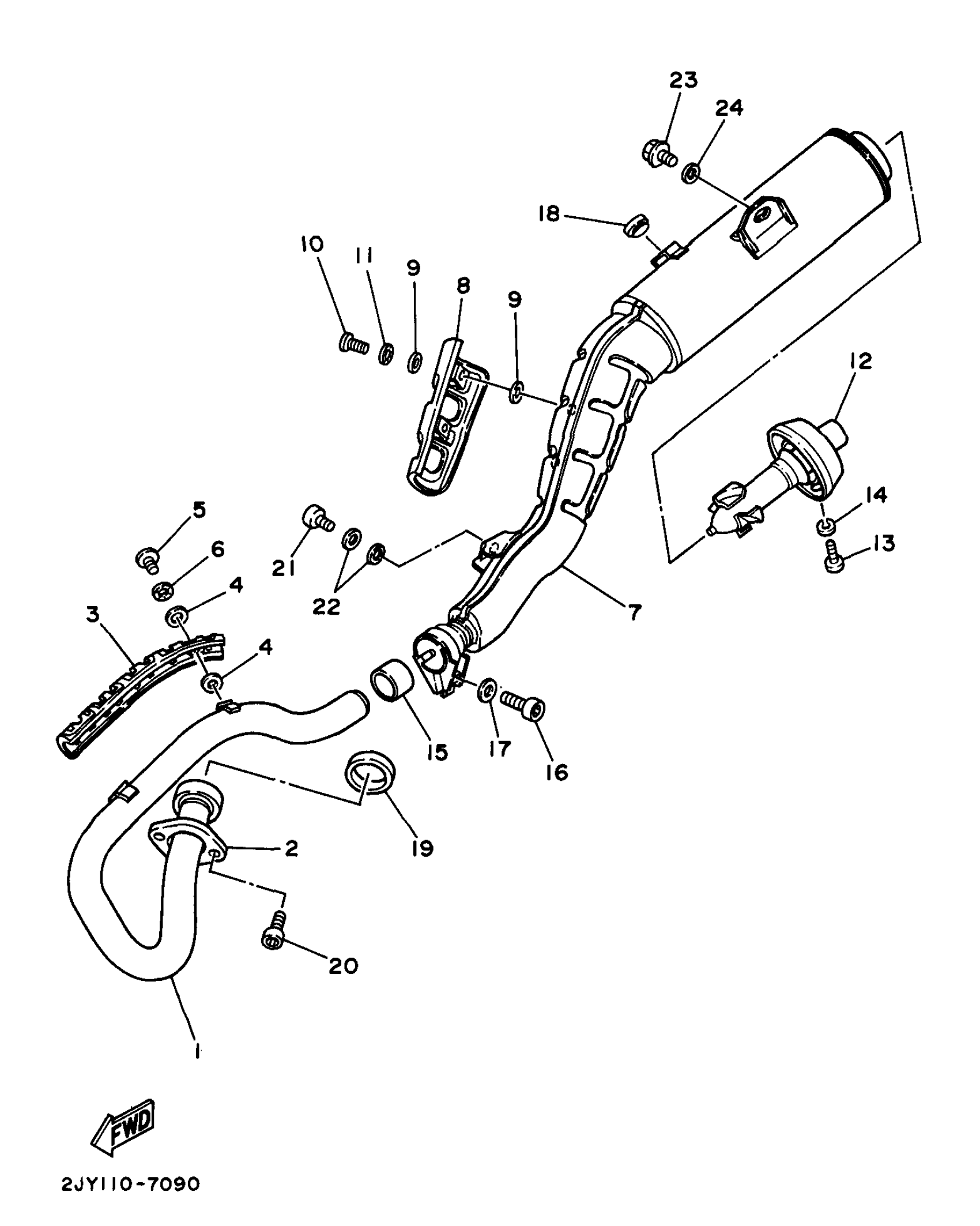

Yamaha TW200LC (TRAILWAY CA) 5FY3 1999 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

2JX-14611-03-00

$40.77

2

NUT, RING

5H0-14612-01-00

$13.04

3

PROTECTOR, EXHAUST PIPE

54G-14628-01-00

Unavailable

4

WASHER, PROTECTOR

4BD-14766-00-00

$5.12

5

SCREW, BINDING

98907-06010-00

$1.40

6

WASHER, WAVE(3RW)

90206-06090-00

$4.89

7

MUFFLER 1

2JX-14711-00-00

Unavailable

8

PROTECTOR, MUFFLER 2

2JX-14728-00-00

Unavailable

9

WASHER, PLATE(3AJ)

90202-05191-00

$5.77

10

SCREW, BINDING

98907-06010-00

$1.40

11

WASHER, WAVE(3RW)

90206-06090-00

$4.89

12

PIPE, OUTLET

1RH-14752-01-00

$117.03

13

SCREW, PAN

98507-06010-00

$2.52

14

WASHER(6TA)

92907-06600-00

$0.73

15

GASKET, MUFFLER

3YF-14714-00-00

$27.78

16

BOLT, SOCKET

91317-08025-00

Unavailable

17

WASHER(6TA)

92907-08600-00

Unavailable

18

DAMPER, LOCATING 1

22W-24181-00-00

Unavailable

19

GASKET, EXHAUST PIPE

4BE-14613-00-00

Unavailable

20

BOLT,SOCKET

91317-06020-00

Unavailable

21

BOLT, SOCKET

91317-08016-00

Unavailable

22

WASHER (853)

90201-08326-00

Unavailable

23

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

24

WASHER (853)

90201-08326-00

Unavailable
