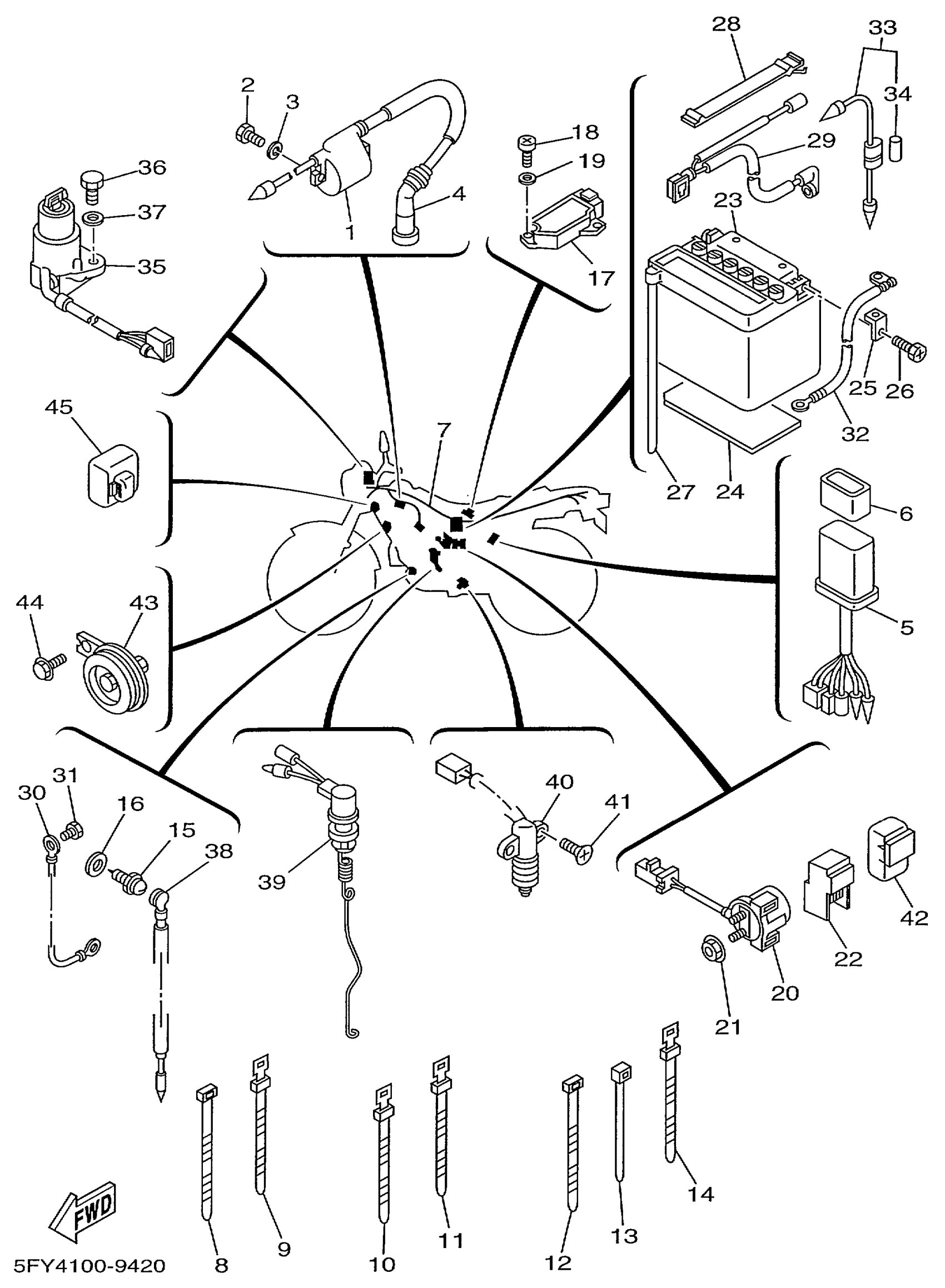

Yamaha TW200LC (TRAILWAY CA) 5FY3 1999 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

2

BOLT, HEXAGON

97017-06020-00

$4.06

3

WASHER, SPRING

92907-06100-00

$4.25

4

PLUG CAP ASSY

3NS-82370-00-00

$37.99

5

C.D.I. UNIT ASSEMBLY

2YG-85540-10-00

Unavailable

6

BAND

34X-85546-00-00

Unavailable

7

WIRE HARNESS ASSEMBLY

2YG-82590-10-00

Unavailable

8

BAND, SWITCH CORD

437-83936-11-00

$4.63

9

BAND, SWITCH CORD

25G-83936-01-00

$4.78

10

BAND, SWITCH CORD

437-83936-01-00

$7.99

11

BAND, SWITCH CORD

437-83936-01-00

$7.99

12

BAND, SWITCH CORD

437-83936-11-00

$4.63

13

BAND

1UA-82591-00-00

$4.78

14

BAND, SWITCH CORD

437-83936-01-00

$7.99

15

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

16

GASKET (1KH,1.0T)

90430-10148-00

Unavailable

17

RECTIFIER & REGULATOR ASSY

47X-81960-A3-00

Unavailable

18

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

19

WASHER(6TA)

92907-06600-00

Unavailable

20

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

Unavailable

21

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

22

RELAY ASSY

12R-81950-02-00

Unavailable

23

YB7CA YUASA BATTERY

YB7-CA000-00-00

Unavailable

24

SEAT, BATTERY

51Y-82122-00-00

Unavailable

25

TERMINAL 1

2JX-82103-00-00

Unavailable

26

SCREW, HEXAGON (5G2)

90153-06032-00

Unavailable

27

HOSE (L1500)

90445-084J0-00

Unavailable

28

BAND,BATTERY

7H3-82131-00-00

Unavailable

29

WIRE,PLUS LEAD

2JX-82115-00-00

Unavailable

30

WIRE, MINUS LEAD

5H0-82116-00-00

Unavailable

31

BOLT (3H6)

90109-06557-00

Unavailable

32

WIRE, MINUS LEAD

2JX-82116-00-00

Unavailable

33

FUSE HOLDER ASSY

2TV-82150-02-00

Unavailable

34

FUSE (12V-15A)

4X7-82151-00-00

Unavailable

35

MAIN SWITCH STEERING LOCK

2GK-82501-01-00

Unavailable

36

BOLT, HEXAGON

97017-06016-00

Unavailable

37

WASHER(6TA)

92907-06600-00

Unavailable

38

WIRE, LEAD

2JX-82541-00-00

Unavailable

39

STOP SWITCH ASSY

5VC-82530-01-00

Unavailable

40

SWITCH, SIDE STAND

1VJ-82566-00-00

Unavailable

41

SCREW, FLAT

98707-05016-00

Unavailable

42

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

43

HORN

4LR-83371-11-00

Unavailable

44

BOLT, FLANGE

95817-06010-00

Unavailable

45

FLASHER RELAY ASSY

30X-83350-20-00

Unavailable
