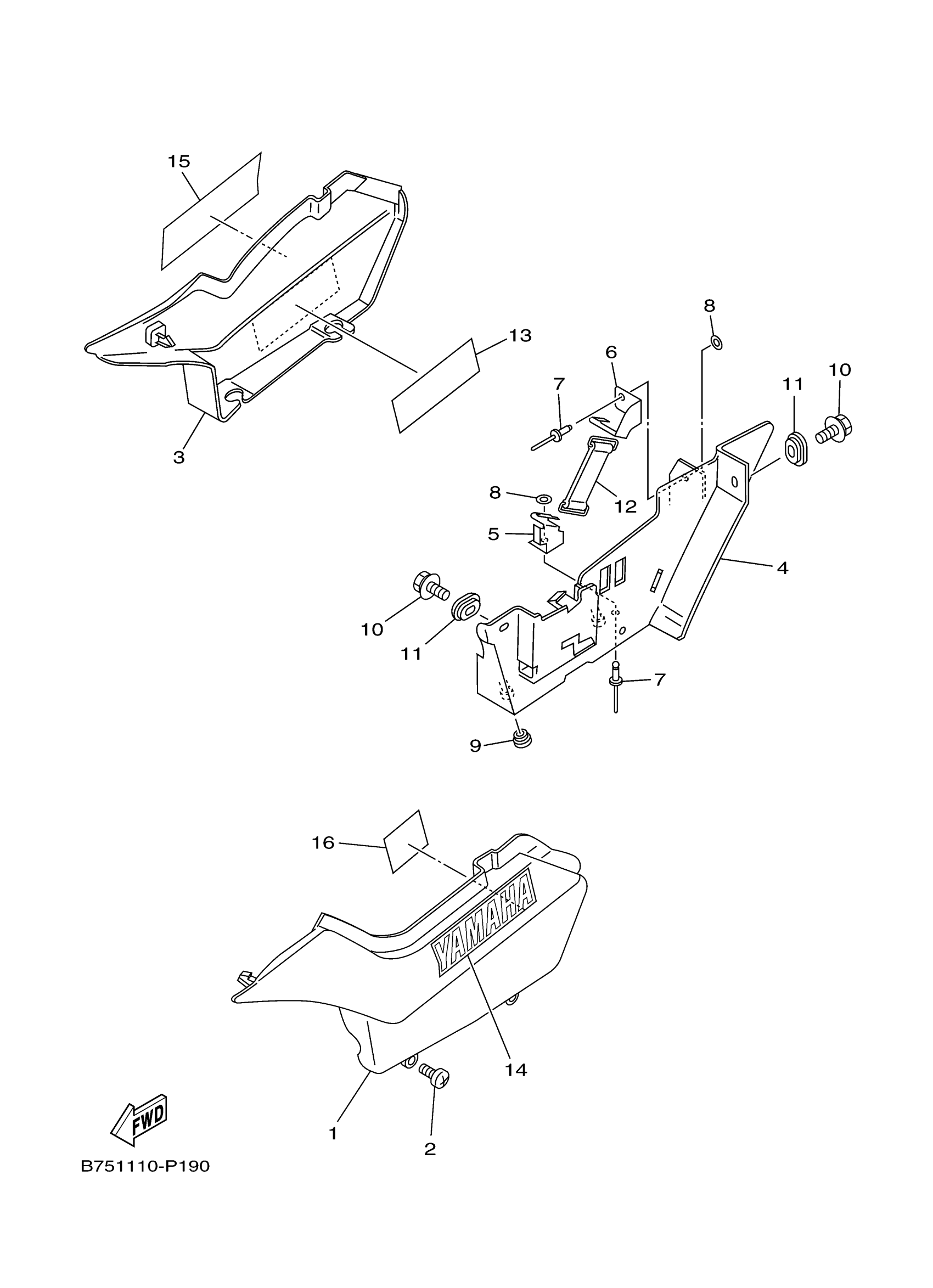

Yamaha TW200L1C (TW200 CA) B75H 2020 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

2YG-21711-00-0X

$110.99

2

SCREW, BINDING (10V)

90154-05013-00

$5.60

3

COVER, SIDE 2

2YG-21721-00-0X

$109.99

4

BOX

5EK-2177A-00-00

$37.99

5

BRACKET 1

5EK-2175T-00-00

$15.49

6

BRACKET 2

5EK-2175U-00-00

Unavailable

7

RIVET,BLIND

90267-40080-00

Unavailable

8

WASHER, PLATE(26H)

90201-044H9-00

$8.49

9

GROMMET

90480-13014-00

$8.49

10

BOLT, WITH WASHER

90119-06152-00

$7.49

11

GROMMET(41Y)

90480-01401-00

$8.49

12

BAND, BATTERY

116-82131-00-00

$31.99

13

LABEL, NOTICE BATTERY

10D-2815N-00-00

Unavailable

14

EMBLEM, YAMAHA

5HP-2153A-11-00

$13.49

15

EMBLEM, YAMAHA

5HP-2153A-11-00

$13.49
