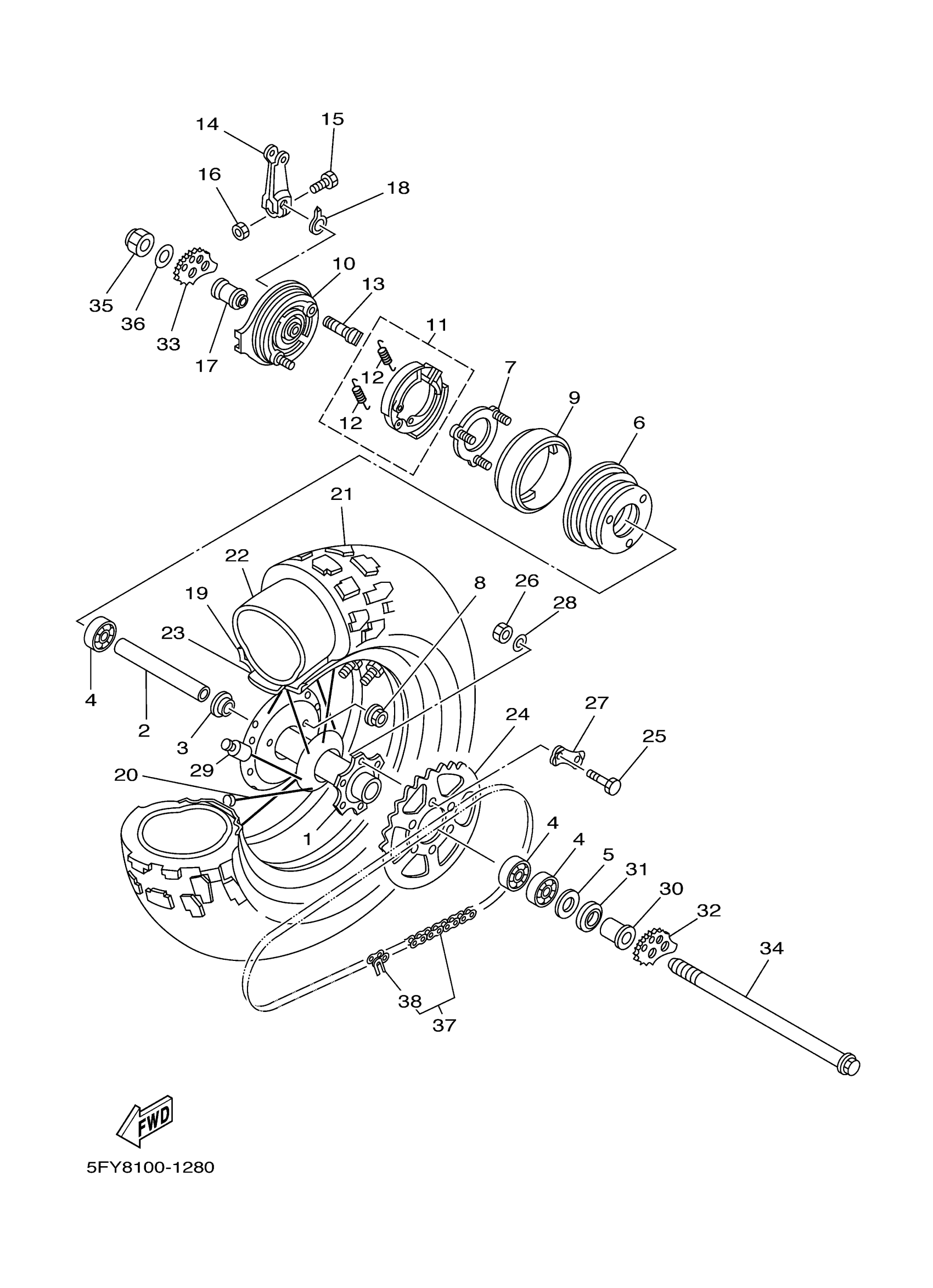

Yamaha TW200L1C (TW200 CA) B75H 2020 REAR WHEEL Diagram
#
Description
Price
5
OIL SEAL(36R)
93102-25311-00
Unavailable
6
DRUM, BRAKE
5V7-2511E-00-35
Unavailable
7
RING 1
54G-25185-00-00
Unavailable
10
PLATE, BRAKE SHOE
2JX-25321-02-35
Unavailable
16
NUT(6TA)
95317-06600-00
Unavailable
17
COLLAR(2JX)
90387-171T1-00
Unavailable
18
PLATE, INDICATOR
2JX-2533A-00-00
Unavailable
19
RIM
94445-14605-00
Unavailable
20
SPOKE SET, REAR
2JX-25304-21-00
Unavailable
21
TIRE (180/80-14 M/C 78P TW34)
94118-145U1-00
Unavailable
22
TUBE(2JX)
94218-14251-00
Unavailable
23
BAND, RIM(2JX)
94318-14149-00
Unavailable
24
SPROCKET, DRIVEN (50T)
15A-25450-20-00
Unavailable
25
BOLT (5F7)
90109-08618-00
Unavailable
26
NUT, SELF-LOCKING (3Y2)
90185-08089-00
Unavailable
27
WASHER, LOCK (3Y2)
90215-08160-00
Unavailable
28
WASHER, PLATE(3XP)
90201-086P8-00
Unavailable
29
BALANCER, WHEEL
3HT-25398-00-00
Unavailable
30
COLLAR(2JX)
90387-171T2-00
Unavailable
31
COVER, HUB DUST
36R-25367-00-00
Unavailable
32
PULLER, CHAIN 1
3Y1-25388-01-00
Unavailable
33
PULLER, CHAIN 2
3Y1-25389-00-00
Unavailable
34
AXLE, WHEEL
2JX-25381-11-00
Unavailable
35
NUT, SELF-LOCKING
90185-16002-00
Unavailable
36
WASHER, PLATE(33Y)
90201-164H4-00
Unavailable
37
CHAIN
9Y582-51121-00
Unavailable
38
JOINT, CHAIN
94682-51001-00
Unavailable
