Description

Price

1

REAR ARM COMP.

2JX-22110-00-35

$718.99

2

BUSH 1

2JX-22123-00-00

Unavailable

3

BUSH 2

2JX-22124-00-00

Unavailable

4

BUSH(1KH)

90386-18146-00

$16.99

5

BUSH, SOLID(12T)

90380-18139-00

$17.99

6

OIL SEAL (2J5)

93109-18020-00

$13.49

7

COVER, THRUST 1

401-22128-01-00

$29.99

8

SHIM

401-22127-00-00

$7.99

9

SHAFT, PIVOT

2JX-22141-00-00

Unavailable

10

WASHER, PLATE (4K8)

90201-120E8-00

$7.49

11

NUT, SELF-LOCKING(1KH)

90185-12134-00

$12.49

12

CASE, CHAIN

34X-22311-01-00

$32.99

13

BOLT, WITH WASHER (4L0)

90119-05059-00

$2.39

14

SEAL, GUARD

34X-22151-01-00

$92.99

15

WASHER (3R8)

90209-06187-00

$8.49

16

BOLT, WITH WASHER (10V)

90119-05062-00

Unavailable

17

SUPPORT, CHAIN

5BT-22199-00-00

Unavailable

18

COLLAR (3L6)

90387-06737-00

Unavailable

19

BOLT, FLANGE

95817-06020-00

Unavailable

20

NIPPLE, GREASE (36X)

93700-06009-00

Unavailable

21

PROTECTOR

3MA-27491-00-00

Unavailable

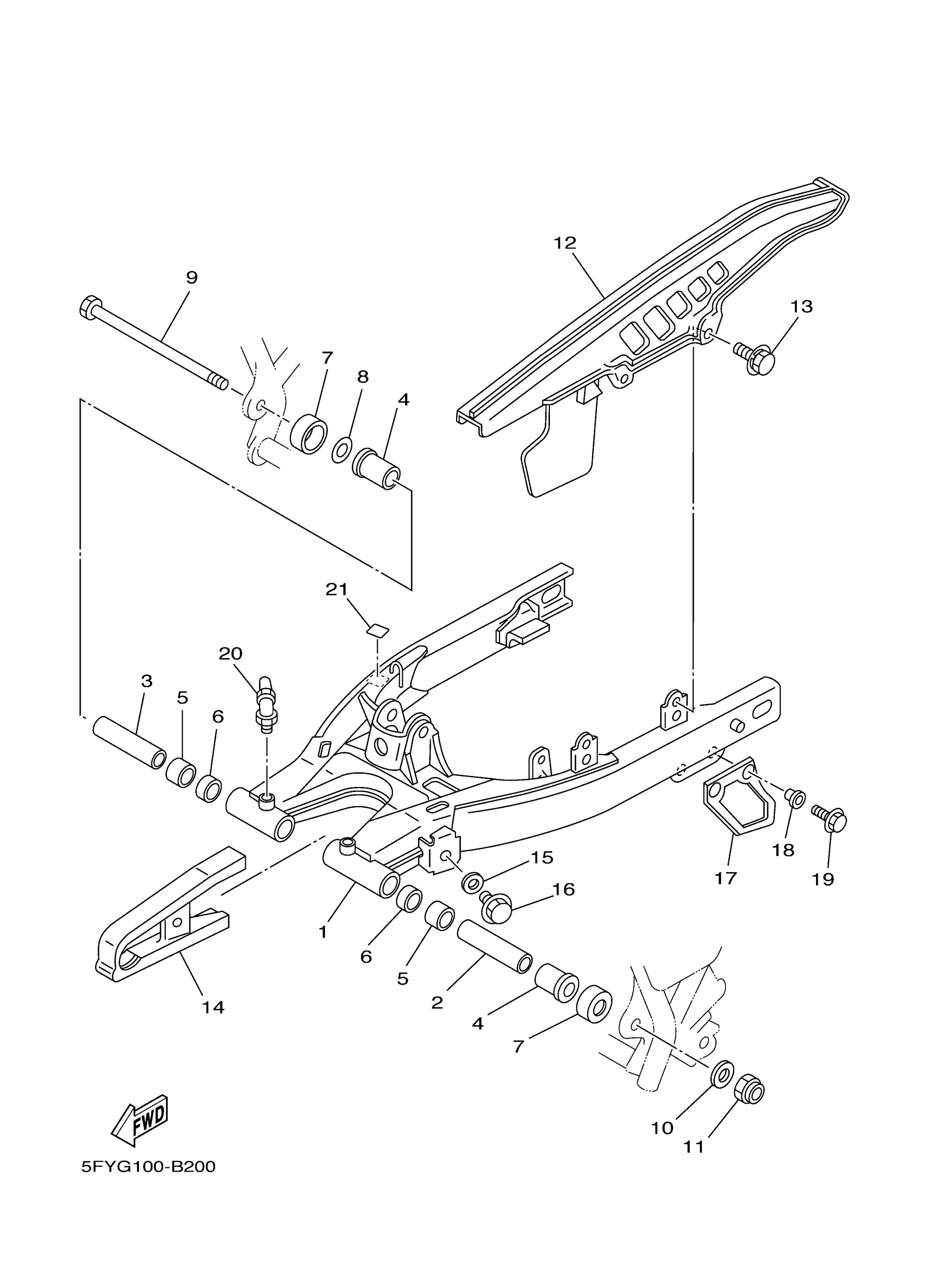

Yamaha TW200L1C (TW200 CA) B75H 2020 REAR ARM Diagram

REAR ARM COMP.

BUSH 1

BUSH 2

BUSH(1KH)

BUSH, SOLID(12T)

OIL SEAL (2J5)

COVER, THRUST 1

SHIM

SHAFT, PIVOT

WASHER, PLATE (4K8)

NUT, SELF-LOCKING(1KH)

CASE, CHAIN

BOLT, WITH WASHER (4L0)

SEAL, GUARD

WASHER (3R8)

BOLT, WITH WASHER (10V)

SUPPORT, CHAIN

COLLAR (3L6)

BOLT, FLANGE

NIPPLE, GREASE (36X)

PROTECTOR
