Description

Price

1

FUEL TANK COMP.

5RS-Y2410-10-W4

Unavailable

2

DAMPER, LOCATING 1

4L0-24181-00-00

$9.99

3

DAMPER, LOCATING 2

30X-24182-01-00

$20.99

4

DAMPER, LOCATING 3

30X-24183-01-00

$7.99

5

WASHER, SPECIAL

30X-24186-01-00

$7.99

6

WASHER, SPECIAL

30X-24187-00-00

$24.99

7

BOLT, HEXAGON

97017-06012-00

$3.76

8

WASHER(6TA)

92907-06600-00

$2.72

9

CAP ASSY

11H-24602-10-00

$101.99

10

FUEL COCK ASSY 1

23F-24500-20-00

$41.99

11

O-RING

4X8-24512-10-00

$14.49

12

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

13

VALVE PACKING

3AC-24523-00-00

$12.99

14

SEAL, COCK

3AJ-24534-10-00

$7.99

15

SCREW 256241430000

90149-06011-00

$5.60

16

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

17

HOSE

90445-10829-00

Unavailable

18

CLIP

90467-090A2-00

Unavailable

33

DAMPER, LOCATING 1

18A-21778-00-00

Unavailable

34

LABEL, CAUTION

1TP-2118K-A2-00

Unavailable

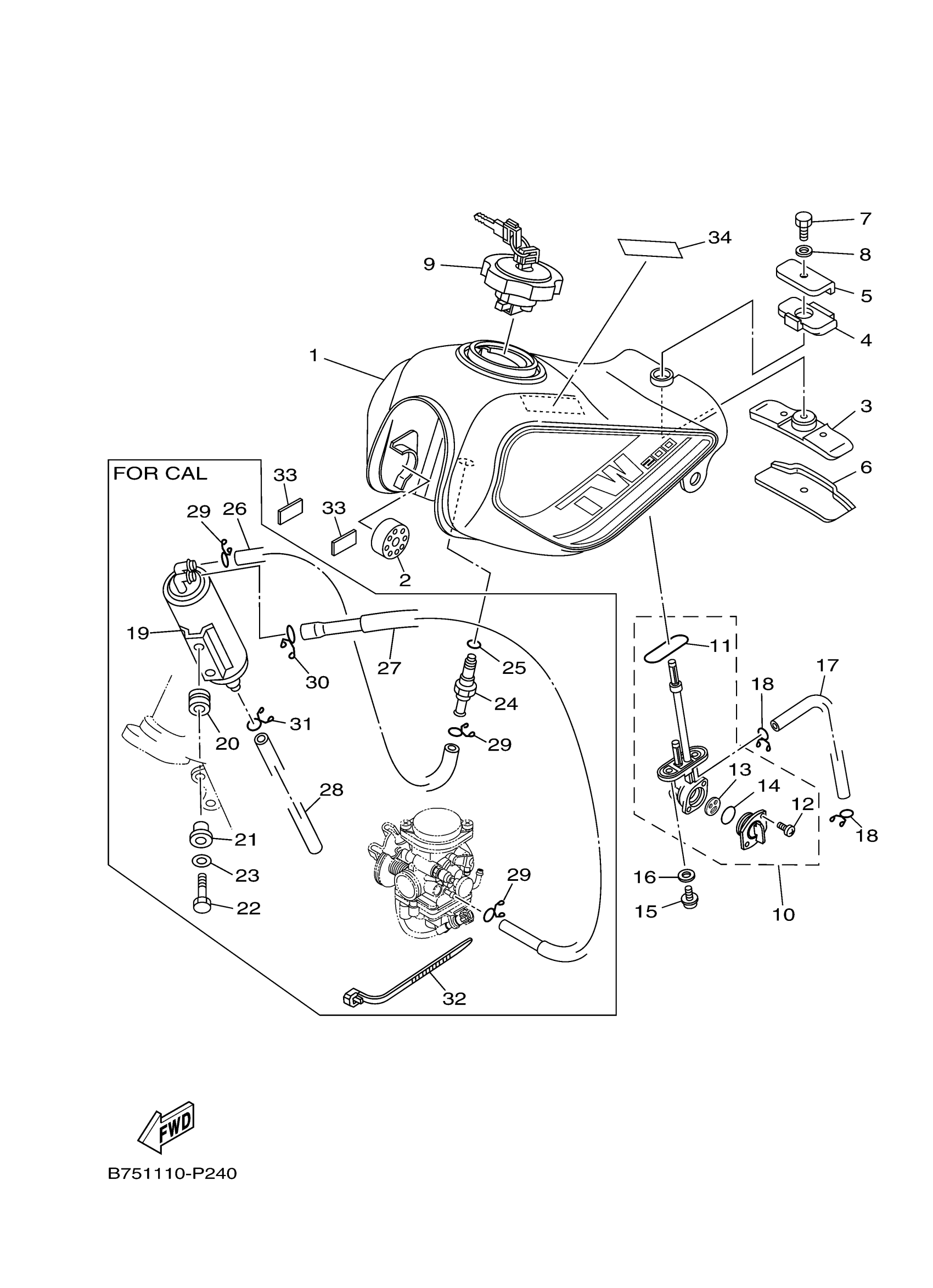

Yamaha TW200L1C (TW200 CA) B75H 2020 FUEL TANK Diagram

FUEL TANK COMP.

DAMPER, LOCATING 1

DAMPER, LOCATING 2

DAMPER, LOCATING 3

WASHER, SPECIAL

WASHER, SPECIAL

BOLT, HEXAGON

WASHER(6TA)

CAP ASSY

FUEL COCK ASSY 1

O-RING

SCREW, PAN HEAD(3AC)

VALVE PACKING

SEAL, COCK

SCREW 256241430000

WASHER, PLATE(3MB)

HOSE

CLIP

DAMPER, LOCATING 1

LABEL, CAUTION
