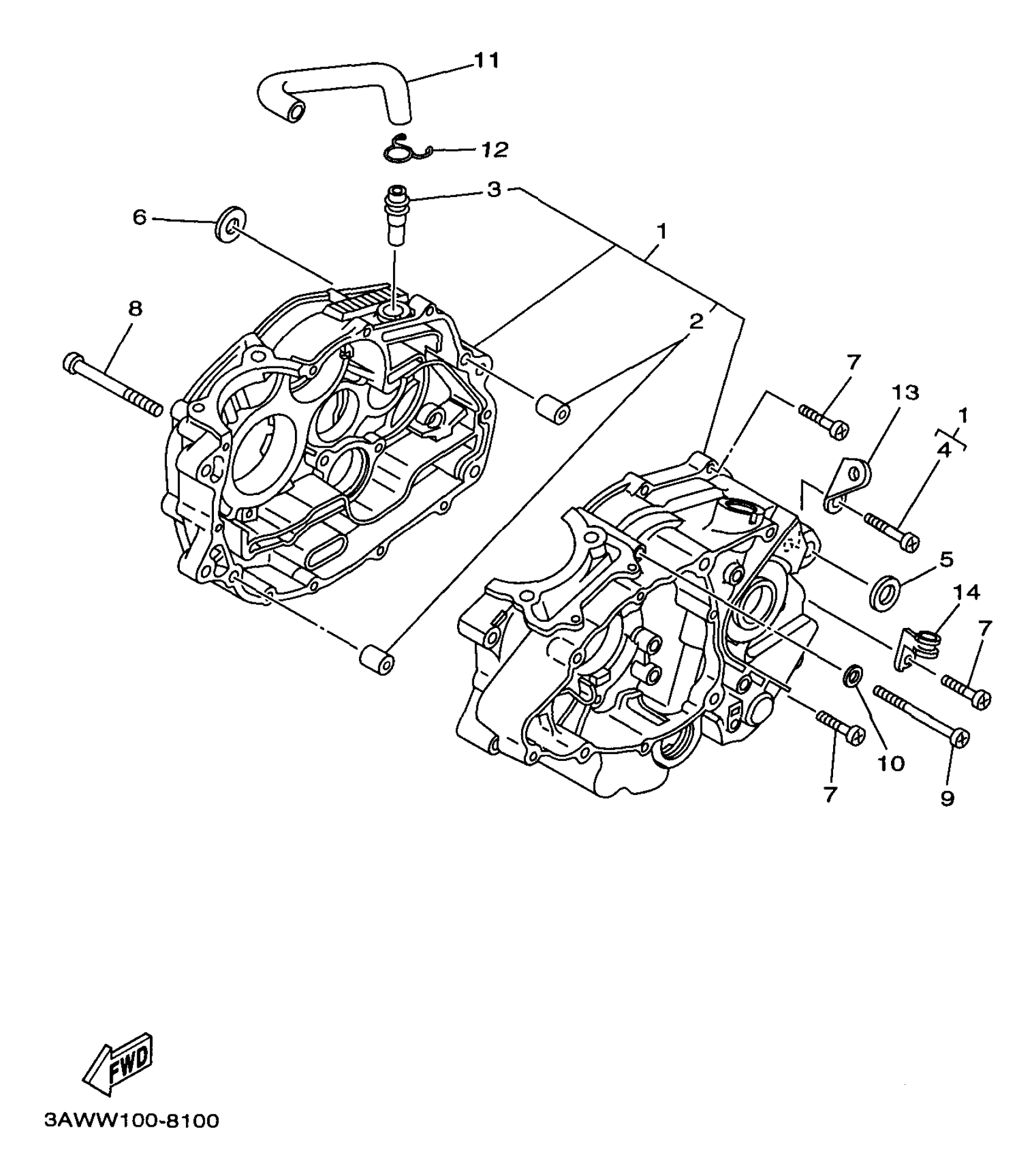

Yamaha TW200KC (TRAILWAY CA) 3AWX 1998 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

3AW-15100-01-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

PIPE, BREATHER 2

371-11167-01-00

$13.49

4

SCREW, PAN

98507-06040-00

$3.22

5

COLLAR (15A)

90387-125F1-00

$3.02

6

COLLAR (15A)

90387-125F1-00

$3.02

7

SCREW, PAN

98517-06030-00

Unavailable

8

SCREW, PAN

98507-06090-00

Unavailable

9

SCREW, PAN

98507-06085-00

$6.99

10

GASKET 256113960000

90430-06014-00

Unavailable

11

PIPE, BREATHER 1

3Y1-11166-00-00

Unavailable

12

CLIP (371)

90467-14015-00

$8.49

13

CLAMP (15A)

90465-08200-00

$9.49

14

CLAMP (5H0)

90462-06080-00

$13.99
