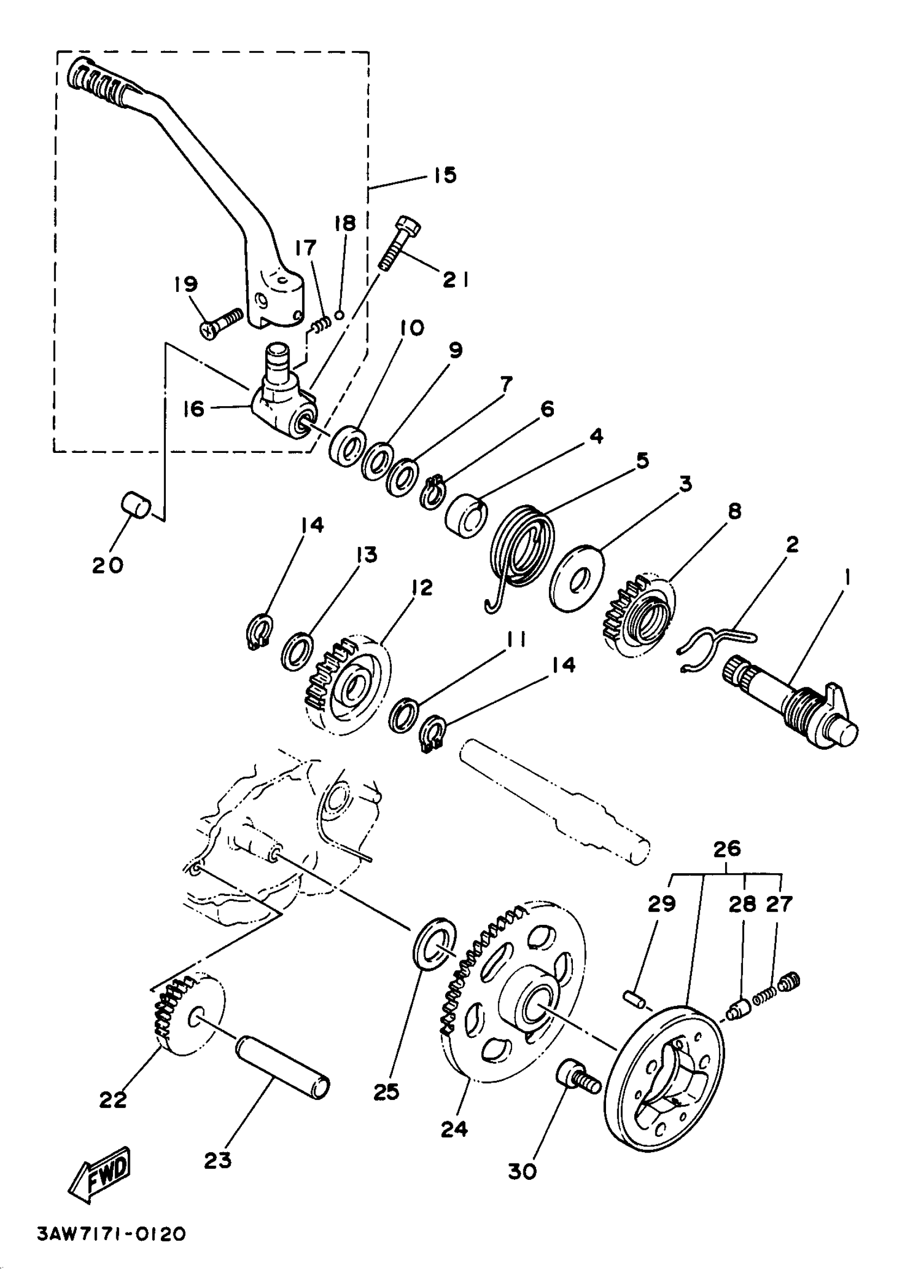

Yamaha TW200JC (TRAILWAY CA) 3AWU 1997 STARTER Diagram

KICK SHAFT ASSY

15A-15660-01-00

Unavailable

CLIP (15A)

90468-26122-00

$8.49

COVER, SPRING

401-15676-00-00

$7.99

SPACER

15A-15666-00-00

$7.99

SPRING, TORSION (15A)

90508-26538-00

$12.49

CIRCLIP(1EY)

99009-17400-00

$4.73

WASHER, PLATE (15A)

90201-175F6-00

$10.49

GEAR, KICK

36X-15641-00-00

Unavailable

WASHER (15A)

90209-17226-00

$9.49

OIL SEAL (15A)

93102-17263-00

$10.49

WASHER, PLATE (15A)

90201-173F4-00

$8.49

GEAR, KICK IDLE

15A-15651-01-00

$67.99

WASHER, CLAW (15A)

90214-17028-00

$8.49

CIRCLIP(1EY)

99009-17400-00

$4.73

KICK CRANK ASSY

54G-15620-01-00

$170.99

BOSS, KICK CRANK

54G-15621-00-00

Unavailable

SPRING COMPRESSION278156220000

90501-12081-00

Unavailable

BALL (12R)

93507-32031-00

Unavailable

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

Unavailable

PLUG 288251390000

90338-18014-00

Unavailable

BOLT, HEXAGON

97017-08030-00

Unavailable

GEAR, IDLER 1

2HT-15512-00-00

Unavailable

SHAFT 1

5H0-15521-00-00

Unavailable

GEAR, IDLER 2

5H0-15517-00-00

Unavailable

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable

STARTER CLUTCH OUTER ASSY

4H7-15580-10-00

Unavailable

SPRING, COMPRESSION (4H7)

90501-04596-00

Unavailable

CAP, STARTER CLUTCH

1J7-15583-01-00

Unavailable

PIN,DOWEL(341)

93615-12088-00

Unavailable

BOLT, SOCKET

91317-08016-00

Unavailable
