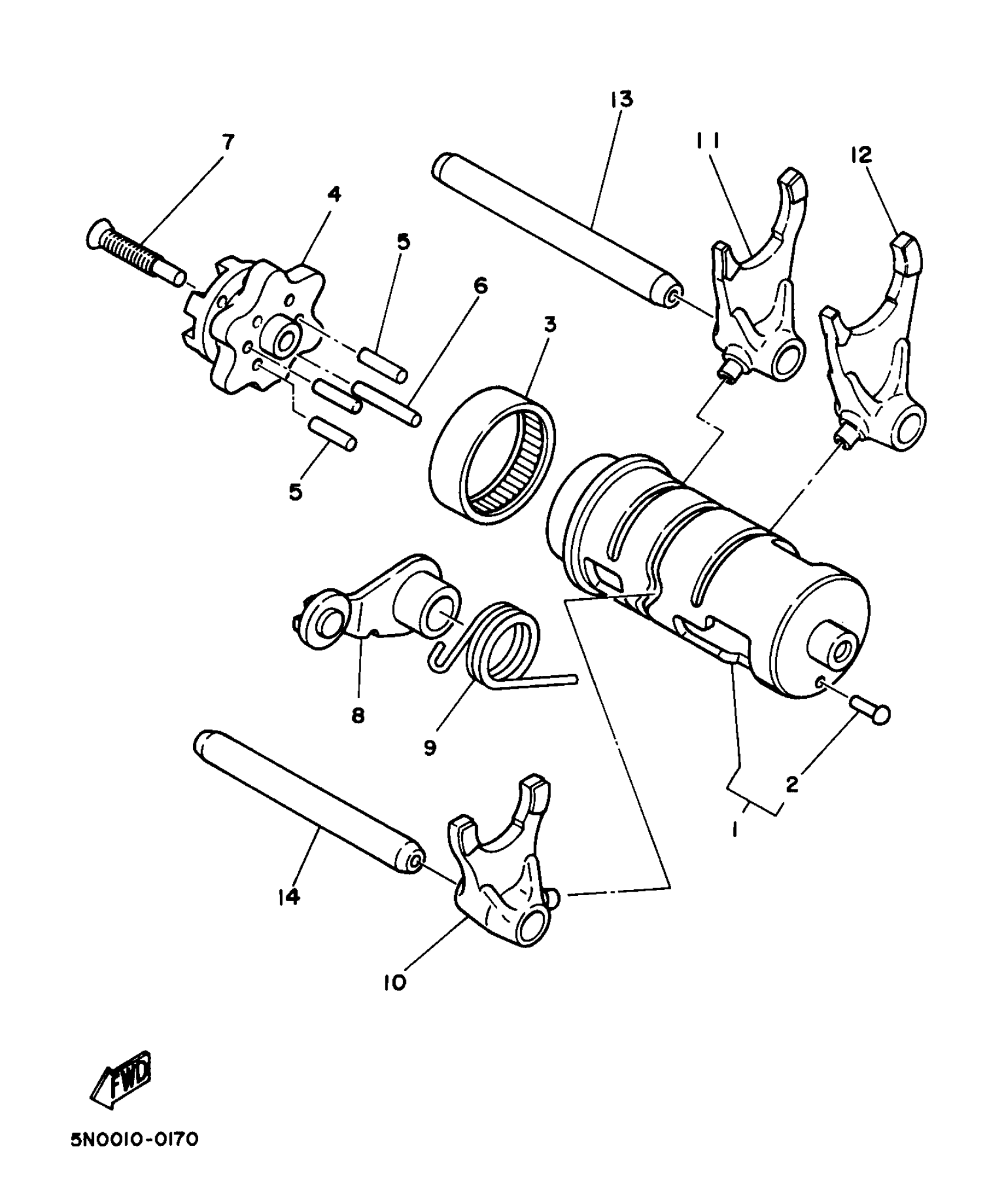

Yamaha TW200JC (TRAILWAY CA) 3AWU 1997 SHIFT CAM SHIFT FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

5N0-18540-00-00

Unavailable

2

POINT,NEUTRAL (150610)

136-18542-00-00

$6.99

3

BRG,CYL-CAL ROLLER 22G NT

93315-23612-00

$33.99

4

SEGMENT

1RH-18185-00-00

$60.99

5

PIN, DOWEL (409)

93604-16092-00

$3.18

6

PIN, DOWEL (4H7)

93604-20156-00

$3.55

7

SCREW, COUNTERSUNK (5H0)

90151-06013-00

$9.49

8

STOPPER LEVER ASSY

1RH-18140-00-00

$31.99

9

SPRING, TORSION (15A)

90508-26539-00

$8.49

10

FORK, SHIFT 1

4JG-18511-00-00

Unavailable

11

FORK, SHIFT 2

4JG-18512-01-00

Unavailable

12

FORK, SHIFT 3

4JG-18513-00-00

Unavailable

13

BAR, SHIFT FORK GUIDE 1

5H0-18531-00-00

Unavailable

14

BAR, SHIFT FORK GUIDE 2

4DN-18535-00-00

Unavailable
