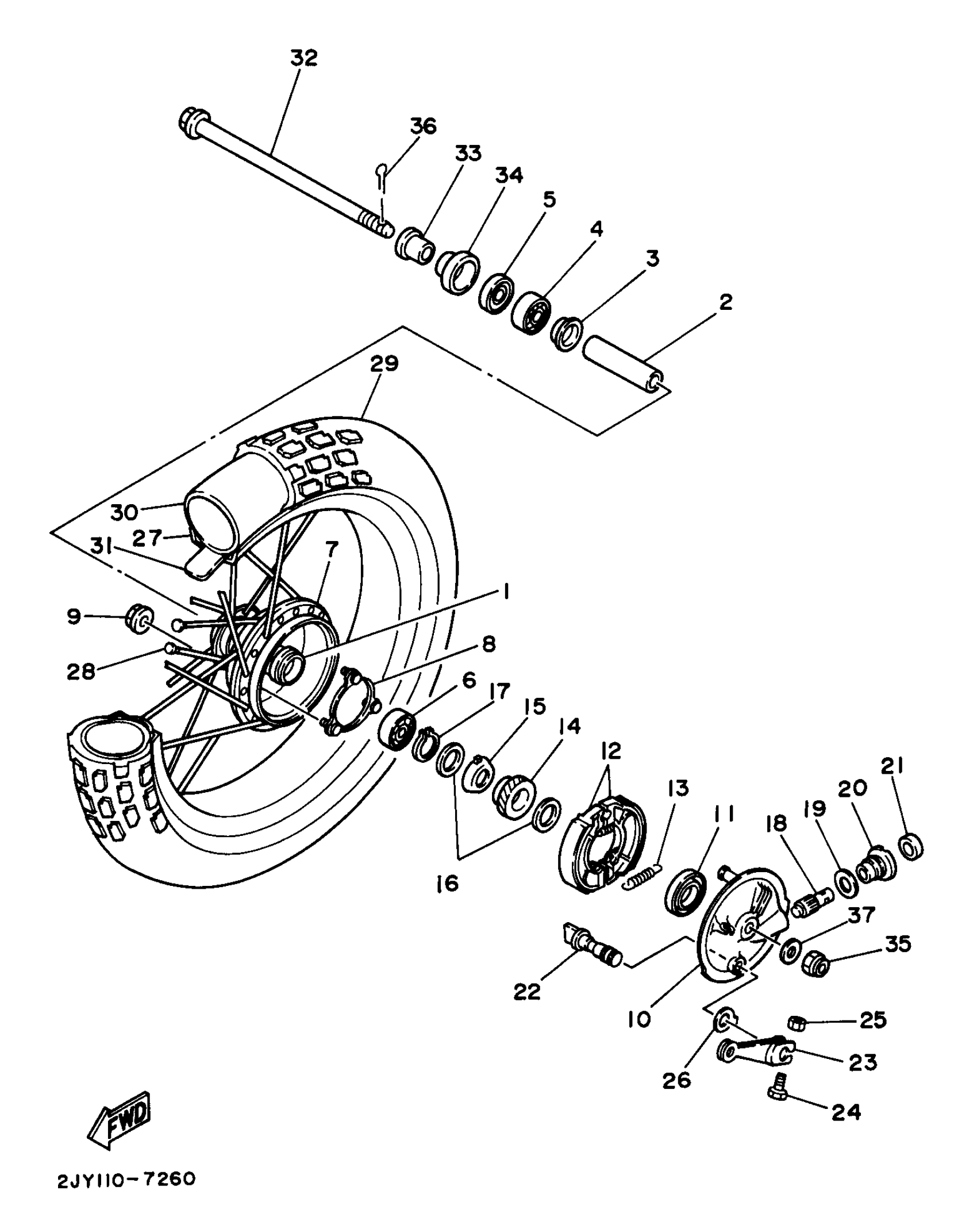

Yamaha TW200JC (TRAILWAY CA) 3AWU 1997 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

2JX-25111-00-00

$133.99

2

SPACER, BEARING

2JX-25117-00-00

Unavailable

3

FLANGE, SPACER

146-25116-00-00

$8.99

4

BEARING

93306-20205-00

$38.99

5

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

6

BEARING(3DL)

93306-20226-00

$38.99

7

DRUM, BRAKE

2JX-2511E-00-35

Unavailable

8

RING 1

54G-25185-00-00

Unavailable

9

NUT (22U)

90179-08410-00

$9.49

10

PLATE, BRAKE SHOE

3Y1-25121-01-35

Unavailable

11

SEAL,OIL

93105-47007-00

$15.99

12

BRAKE SHOE KIT

3LS-W253E-00-00

$32.99

13

SPRING, TENSION

90506-15260-00

$8.49

14

GEAR, DRIVE

214-25135-00-00

Unavailable

15

CLUTCH, METER

214-25149-01-00

$7.99

16

WASHER PLATE 214251470000

90201-22283-00

Unavailable

17

CIRCLIP(1EY)

99009-22400-00

Unavailable

18

GEAR, METER

214-25138-00-00

Unavailable

19

WASHER, PLATE 1832514600

90201-07076-00

Unavailable

20

BUSHING

109-25136-00-00

Unavailable

21

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

22

CAMSHAFT

4GL-25351-00-00

Unavailable

23

LEVER, CAMSHAFT 1

3Y1-25155-01-00

Unavailable

24

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

25

NUT(6TA)

95317-06600-00

Unavailable

26

PLATE

3Y6-2533A-01-00

Unavailable

27

RIM (2.50-18)

94425-18446-00

Unavailable

28

SPOKE SET, FRONT

2JX-25104-00-00

Unavailable

29

TIRE (130/80-18 M/C 66P TW31)

94113-184R7-00

Unavailable

30

TUBE (5A8)

94212-18188-00

Unavailable

31

BAND, RIM (2J4)

94340-18086-00

Unavailable

32

AXLE, WHEEL

2JX-25181-00-00

Unavailable

33

COLLAR (1W1)

90387-15600-00

Unavailable

34

COVER, HUB DUST

322-25118-00-00

Unavailable

35

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

36

PIN, COTTER

91490-30030-00

Unavailable

37

WASHER, PLATE (3Y2)

90201-15785-00

Unavailable
