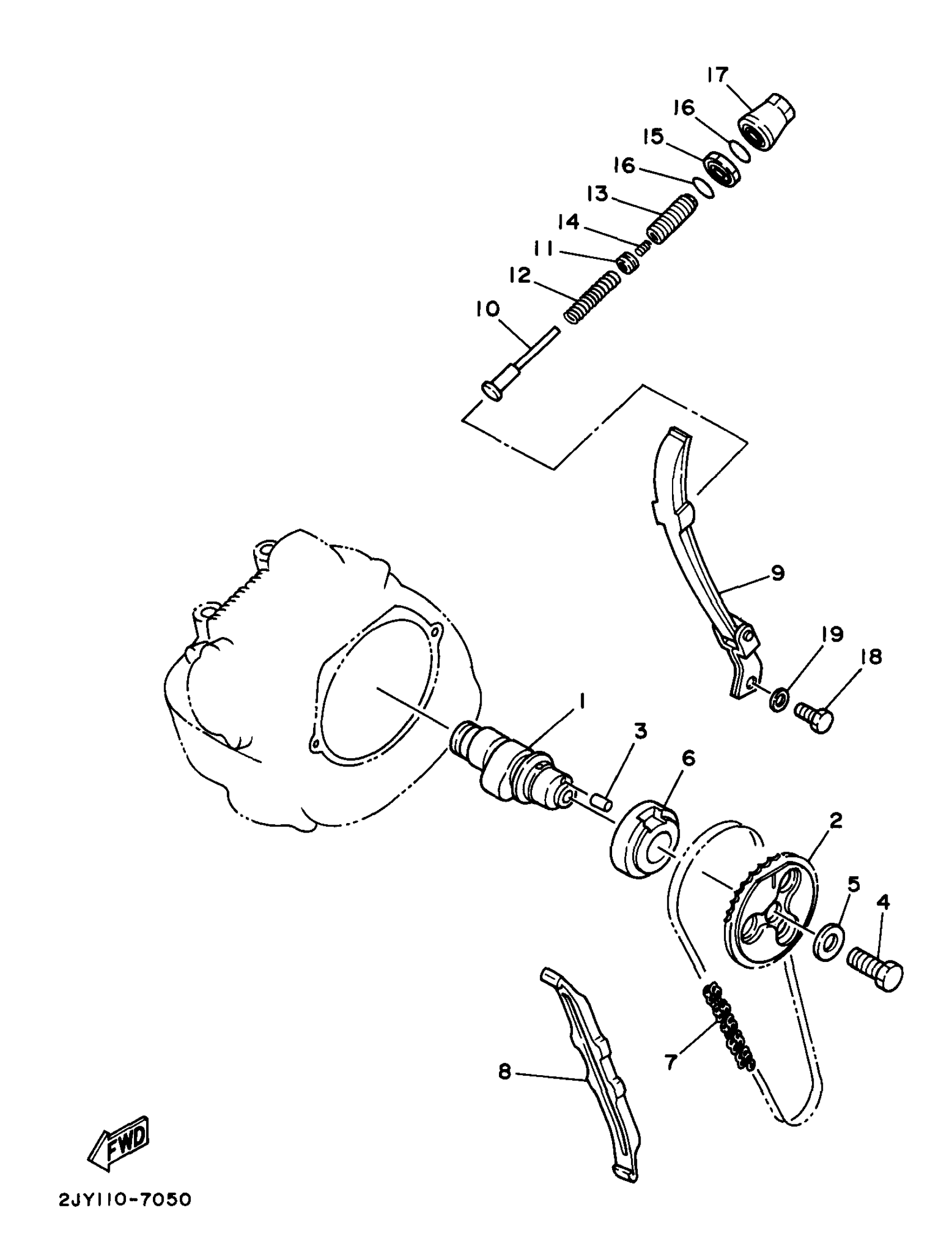

Yamaha TW200JC (TRAILWAY CA) 3AWU 1997 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

36X-12171-01-00

$153.99

2

SPROCKET, CAM CHAIN

1KH-12176-00-00

Unavailable

3

PIN,DOWEL (603)

93604-10011-00

$8.49

4

BOLT (583)

90101-10303-00

$9.49

5

WASHER, PLATE (3L6)

90201-10774-00

$9.49

6

COLLAR (15A)

90387-255F3-00

$45.99

7

CHAIN, CAM SHAFT (5N0)

94580-41104-00

$81.99

8

GUIDE, STOPPER 1

5H0-12231-01-00

Unavailable

9

GUIDE, STOPPER 2

5N0-12241-01-00

$57.99

10

ROD, CHAIN TENSIONER

25A-12217-00-00

Unavailable

11

DAMPER

3Y1-12232-00-00

Unavailable

12

SPRING, COMPRESSION (3Y1)

90501-10587-00

$7.49

13

SCREW

90149-14182-00

Unavailable

14

SPRING, COMPRESSION (5Y1)

90501-22721-00

Unavailable

15

NUT (3Y1)

90179-14298-00

Unavailable

16

O-RING (26H)

93210-16629-00

Unavailable

17

CASE, CHAIN TENSIONER

3Y1-12212-00-00

Unavailable

18

BOLT, HEXAGON

97017-06016-00

Unavailable

19

WASHER(6TA)

92907-06600-00

Unavailable
