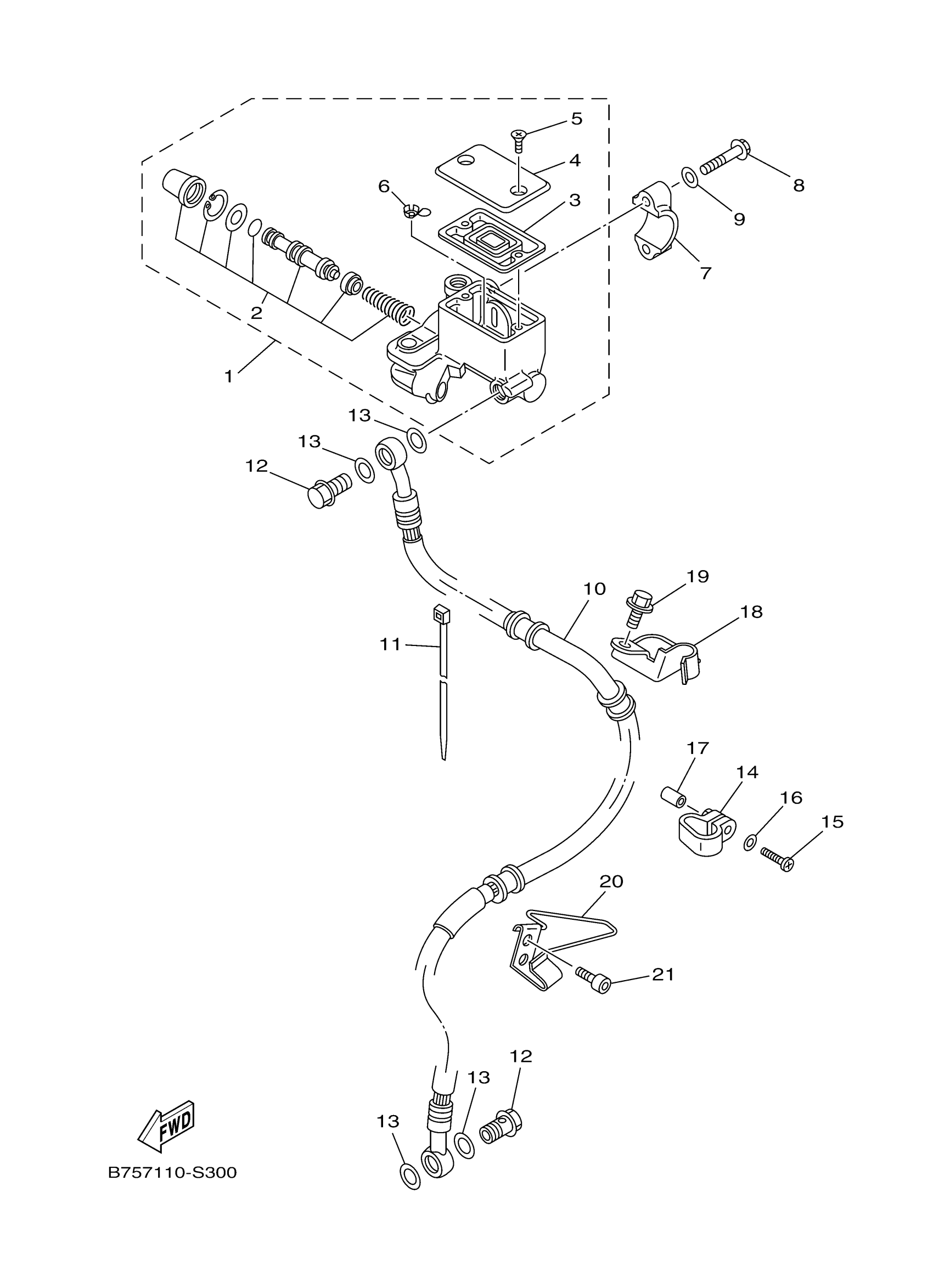

Yamaha TW200J1C (TW200 CA) B75B 2018 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SU

5RS-25870-03-00

Unavailable

2

CYLINDER KIT, MAST

5RS-25807-03-00

$40.99

3

. DIAPHRAGM, RESERVOIR

5RB-25854-00-00

Unavailable

4

CAP, RESERVOIR

4GY-25852-01-00

$41.99

5

SCREW, FLAT

98707-04012-00

$2.18

6

SEPARATOR

3RW-25889-00-00

Unavailable

7

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER(6TA)

92907-06600-00

$2.72

10

HOSE, BRAKE 1

5RS-25872-00-00

$97.99

11

BAND

1UA-82591-00-00

$4.78

12

BOLT, UNION(3GM)

90401-10159-00

$11.49

13

WASHER, PLATE(481)

90201-10118-00

Unavailable

14

CLAMP

3TB-23467-01-00

$6.99

15

SCREW, PAN HEAD

98507-04018-00

$2.19

16

WASHER(JF2)

92907-04600-00

Unavailable

17

HOSE (L200)

90445-05N13-00

Unavailable

18

HOLDER, BRAKE HOSE

5RS-25886-00-00

Unavailable

19

BOLT, FLANGE

95817-06012-00

Unavailable

20

HOLDER, BRAKE HOSE 2

34X-25876-00-00

Unavailable

21

BOLT,SOCKET

91317-06010-00

Unavailable
