Description

Price

1

FUEL TANK C0MP.

2JY-Y2410-10-W7

Unavailable

2

. GRAPHIC, SET

3AW-24240-20-00

Unavailable

3

DAMPER, LOCATING 1

4L0-24181-00-00

$9.99

4

DAMPER, LOCATING 2

30X-24182-01-00

$20.99

5

DAMPER, LOCATING 3

30X-24183-01-00

$7.99

6

WASHER, SPECIAL

30X-24186-01-00

$7.99

7

WASHER, SPECIAL

30X-24187-00-00

$24.99

8

BOLT, HEXAGON

97017-06012-00

$3.76

9

WASHER, SPRING

92907-06100-00

$4.25

10

CAP ASSY

48Y-24602-00-00

Unavailable

11

FUEL COCK ASSY 1

23F-24500-20-00

$41.99

12

VALVE PACKING

3AC-24523-00-00

$12.99

13

SEAL, COCK

3AJ-24534-01-00

$10.99

14

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

15

O-RING

4X8-24512-00-00

$8.99

16

SCREW 256241430000

90149-06011-00

Unavailable

17

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

18

HOSE (L200)

90445-10752-00

Unavailable

19

CLIP

90467-090A2-00

Unavailable

20

DAMPER, LOCATING 1

18A-21778-00-00

Unavailable

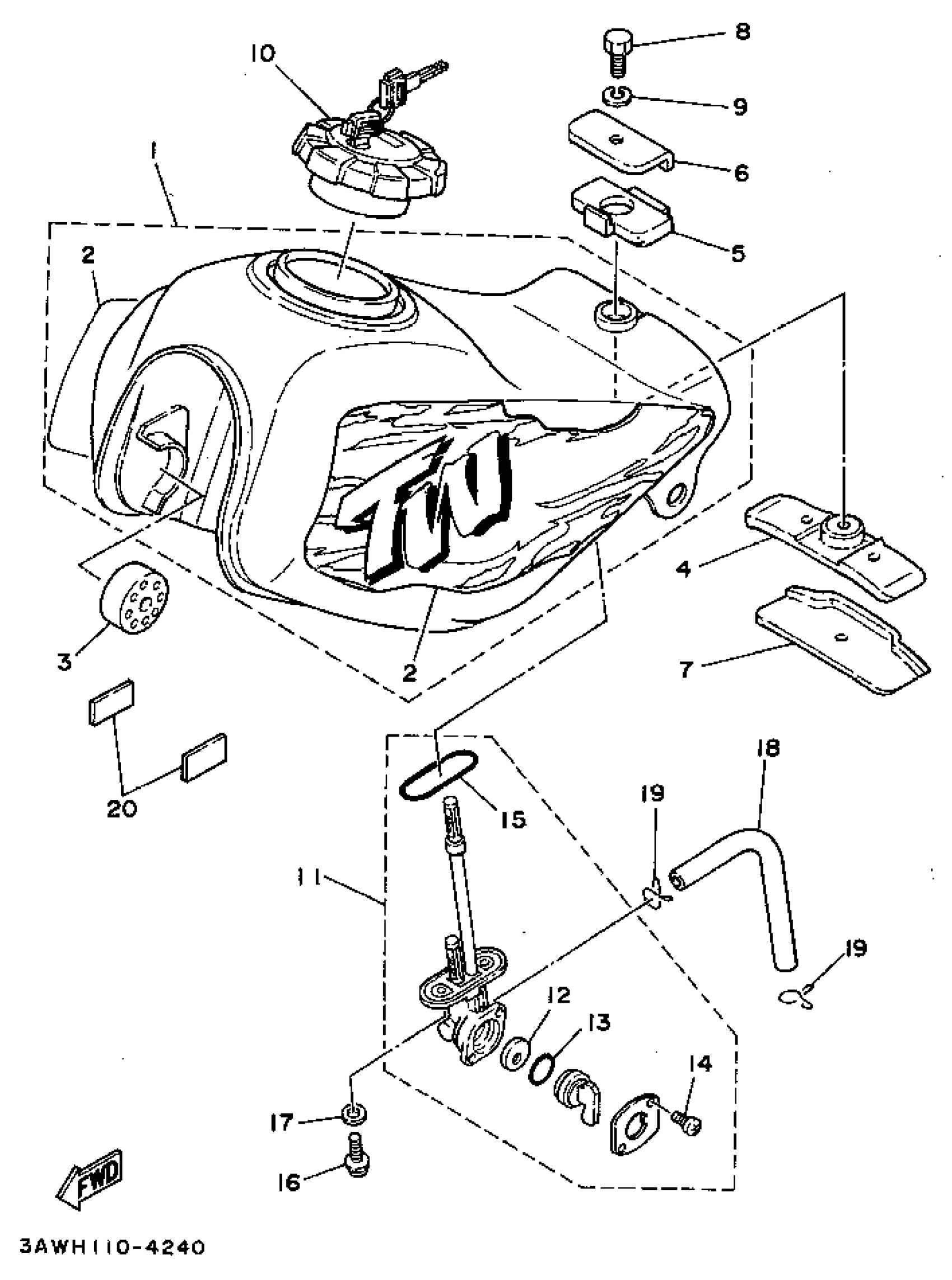

Yamaha TW200GC (TRAILWAY CA) 1995 FUEL TANK NON CALIFORNIA Diagram

FUEL TANK C0MP.

. GRAPHIC, SET

DAMPER, LOCATING 1

DAMPER, LOCATING 2

DAMPER, LOCATING 3

WASHER, SPECIAL

WASHER, SPECIAL

BOLT, HEXAGON

WASHER, SPRING

CAP ASSY

FUEL COCK ASSY 1

VALVE PACKING

SEAL, COCK

SCREW, PAN HEAD (J10)

O-RING

SCREW 256241430000

WASHER, PLATE(3MB)

HOSE (L200)

CLIP

DAMPER, LOCATING 1
