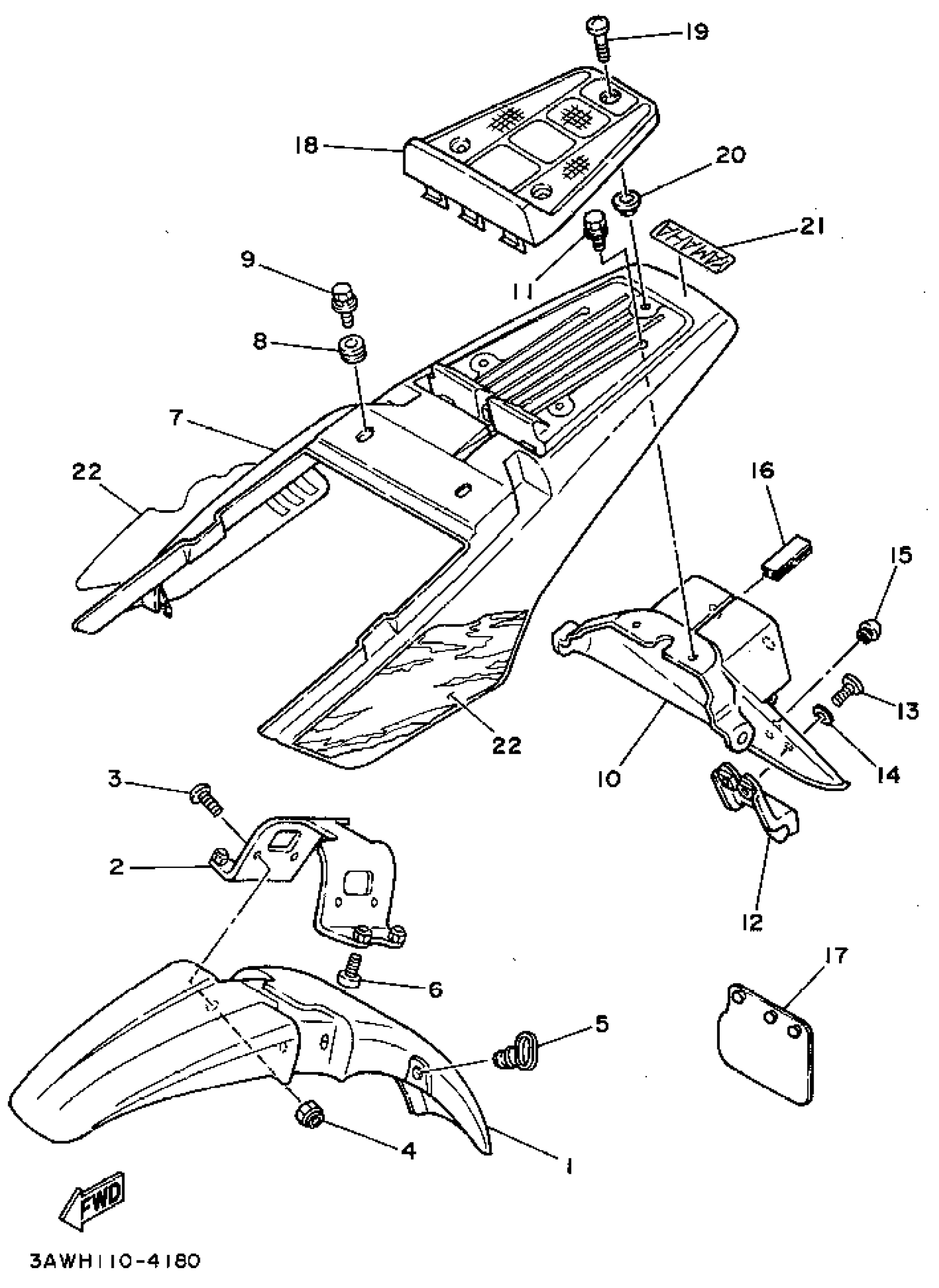

Yamaha TW200GC (TRAILWAY CA) 1995 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3AW-21511-40-00

Unavailable

2

BRACKET, FENDER

2JX-21512-00-00

$67.99

3

BOLT, WITH WASHER

90119-05071-00

$8.49

4

NUT, S/L FLANGE

95607-05200-00

$9.49

5

GUIDE, WIRE

1A8-21518-00-00

$7.99

6

BOLT,SOCKET

91317-06020-00

Unavailable

7

FENDER, REAR

3AW-21611-40-00

Unavailable

8

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

9

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

10

BRACKET, LICENSE

2JX-21685-01-00

$62.99

11

BOLT, WITH WASHER(8V7)

90119-06108-00

$8.49

12

BRACKET, REFLECTOR

2JX-21641-00-00

Unavailable

13

SCREW, PAN

98517-05012-00

$4.73

14

WASHER(1RW)

92907-05600-00

$3.78

15

PLUG

90338-07018-00

$7.49

16

SEAL

2JX-21669-00-00

Unavailable

17

FLAP

34X-21691-00-00

Unavailable

18

COVER, REAR FENDER

2JX-21651-00-00

Unavailable

19

SCREW, BINDING

98907-06014-00

Unavailable

20

COLLAR (8G8)

90387-06681-00

Unavailable

21

EMBLEM, YAMAHA

99246-00080-00

Unavailable

22

GRAPHIC SET, REAR FENDER

3AW-2165A-10-00

Unavailable
