1993 Yamaha Trailwayca (TW200EC) Swing ARM Diagram

← All diagrams

Find the part on the Swing ARM diagram for your 1993 Yamaha Trailwayca (TW200EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

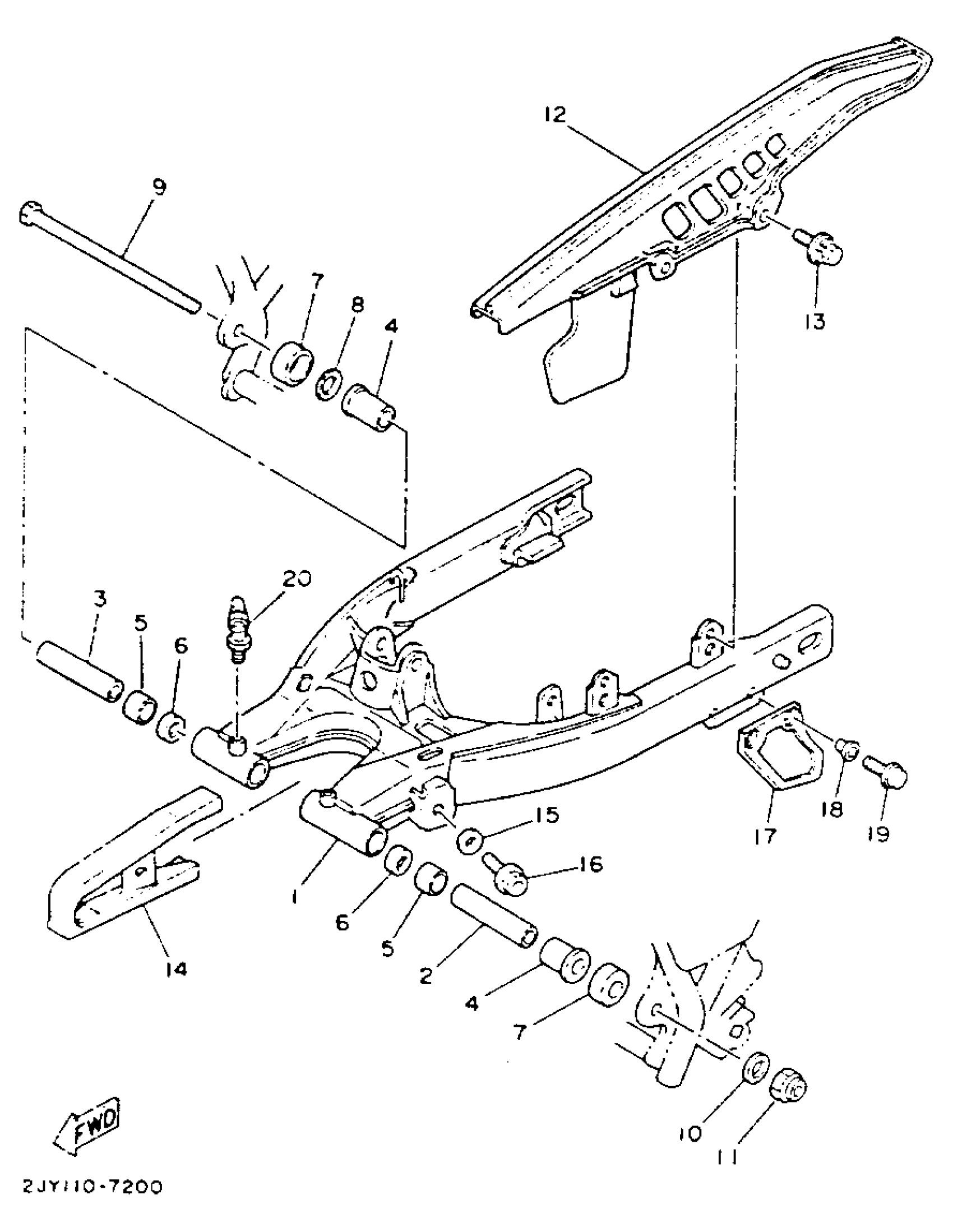

1993 Yamaha Trailwayca (TW200EC) Swing ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM COMP.

2JX-22110-00-35

1

$692.08

In stock

2

BUSH 1

2JX-22123-00-00

—

$21.18

In stock

3

BUSH 2

2JX-22124-00-00

—

$30.91

In stock

4

BUSH(1KH)

90386-18146-00

1

$15.34

In stock

5

BUSH, SOLID(12T)

90380-18139-00

1

$15.86

In stock

6

OIL SEAL (2J5)

93109-18020-00

1

$11.18

In stock

7

COVER, THRUST 1

401-22128-01-00

1

$25.49

In stock

8

SHIM

401-22127-00-00

1

$6.62

In stock

9

SHAFT, PIVOT

2JX-22141-00-00

—

$17.28

In stock

10

WASHER, PLATE (4N0)

90201-126A7-00

1

$6.28

In stock

11

NUT, SELF-LOCKING(1KH)

90185-12134-00

1

$10.11

In stock

12

CASE, CHAIN

34X-22311-01-00

1

$28.45

In stock

13

BOLT, WITH WASHER (4L0)

90119-05059-00

1

$1.78

In stock

14

SEAL, GUARD

34X-22151-01-00

1

$79.98

In stock

15

WASHER (3R8)

90209-06187-00

1

$6.18

In stock

16

BOLT, WITH WASHER (10V)

90119-05062-00

—

$5.45

In stock

17

SUPPORT, CHAIN

38V-22199-00-00

—
Out of stock

18

COLLAR (3L6)

90387-06737-00

—

$6.60

In stock

19

BOLT, FLANGE

95817-06020-00

—

$2.69

In stock

20

NIPPLE, GREASE (36X)

93700-06009-00

—

$9.89

In stock
