FRONT FORK

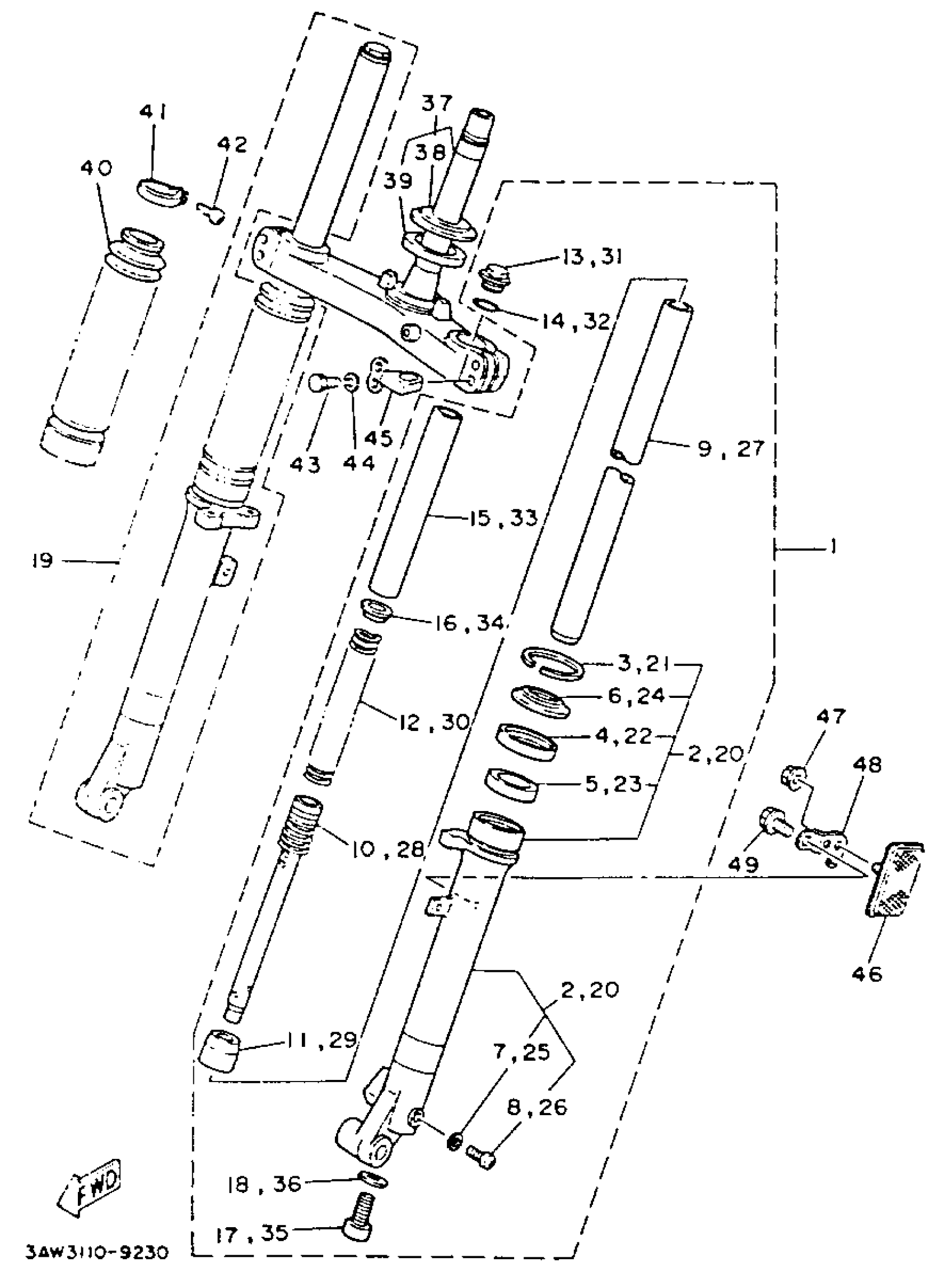

1993 Yamaha Trailwayca (TW200EC) Front Fork Diagram
Find the part on the Front Fork diagram for your 1993 Yamaha Trailwayca (TW200EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FORK ASSEMBLY (L.H)
2JX-23102-00-00
2
. TUBE, OUTER (LEFT)
2JX-23126-00-00
10
. CYLINDER COMP, FRONT FORK
54G-23170-00-00
11
. SPINDLE, TAPER
39K-23173-00-00
16
. SEAT, SPRING UPPER
583-23142-00-00
19
FRONT FORK ASSEMBLY (R.H)
2JX-23103-00-00
20
. TUBE, OUTER (RIGHT)
2JX-23136-00-00
28
. CYLINDER COMP, FRONT FORK
54G-23170-00-00
29
. SPINDLE, TAPER
39K-23173-00-00
34
. SEAT, SPRING UPPER
583-23142-00-00
37
UNDER BRACKET COMP.
3LY-23340-01-00
40
BOOT
3AW-23191-20-00
45
HOLDER, CABLE
5Y1-23317-00-00
48
BRACKET, REFLECTOR 1
2JX-85112-00-00
