Description

Price

1

FENDER, FRONT

3AW-21511-30-00

Unavailable

2

BRACKET, FENDER

2JX-21512-00-00

$67.99

3

BOLT, WITH WASHER

90119-05071-00

$8.49

4

NUT, S/L FLANGE

95607-05200-00

$9.49

5

GUIDE, WIRE

1A8-21518-00-00

$7.99

6

BOLT,SOCKET HEAD

91314-06020-00

$1.49

7

FENDER, REAR

3AW-21611-30-00

Unavailable

8

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

9

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

10

BRACKET, LICENSE

2JX-21685-01-00

$62.99

11

BOLT, WITH WASHER(8V7)

90119-06108-00

$8.49

12

BRACKET, REFLECTOR

2JX-21641-00-00

Unavailable

13

SCREW, PAN

98517-05012-00

$4.73

14

WASHER(1RW)

92907-05600-00

$3.78

15

PLUG

90338-07018-00

$7.49

16

SEAL

2JX-21669-00-00

Unavailable

17

FLAP

34X-21691-00-00

Unavailable

18

COVER, REAR FENDER

2JX-21651-00-00

Unavailable

19

SCREW, BIND(J39)

98980-06014-00

Unavailable

20

COLLAR (8G8)

90387-06681-00

Unavailable

21

EMBLEM, YAMAHA

99241-00080-00

Unavailable

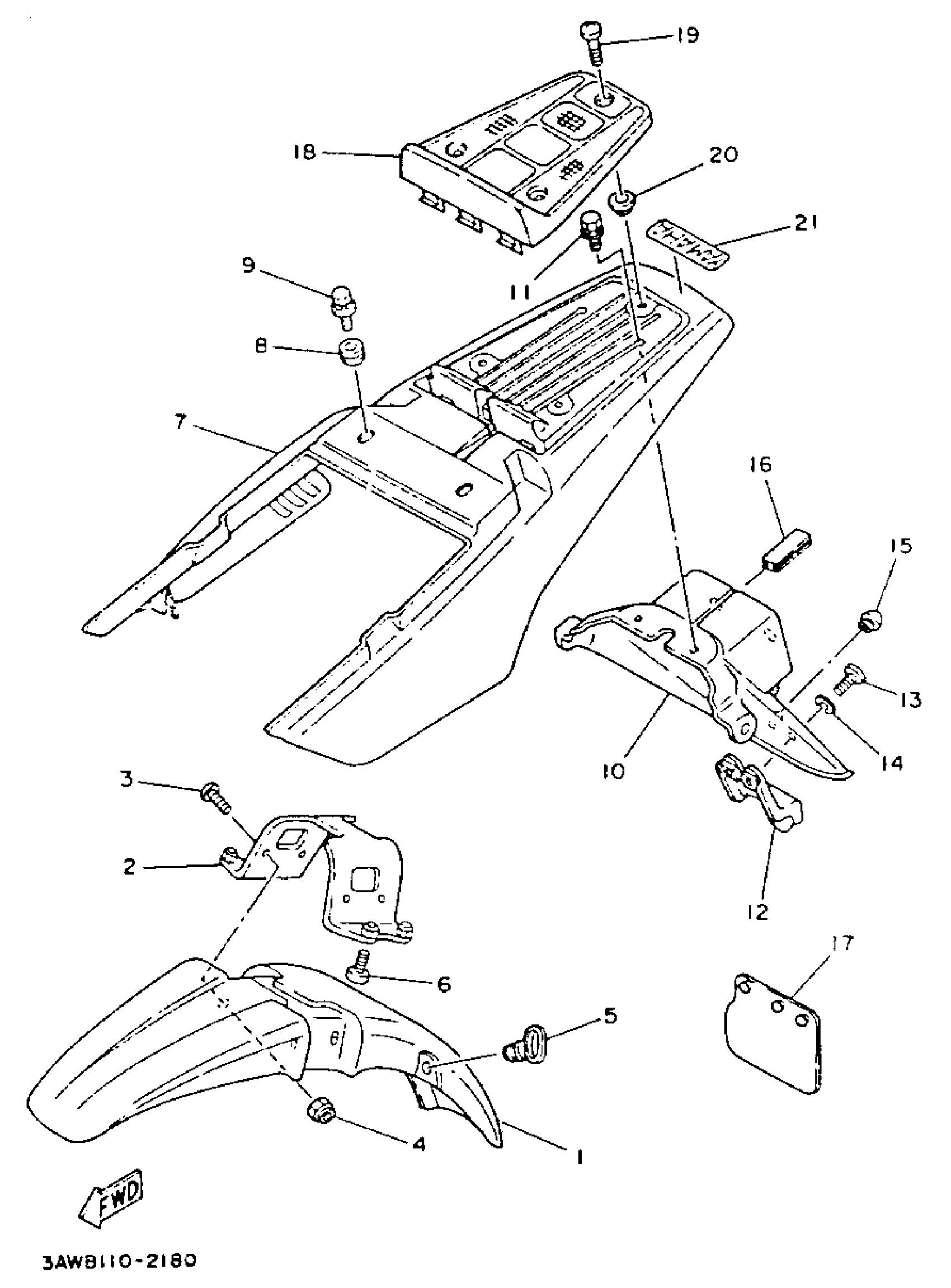

Yamaha TW200EC (TRAILWAYCA) 1993 FENDER Diagram

FENDER, FRONT

BRACKET, FENDER

BOLT, WITH WASHER

NUT, S/L FLANGE

GUIDE, WIRE

BOLT,SOCKET HEAD

FENDER, REAR

DAMPER, SIDE COVER (437)

BOLT, WITH WASHER (10V)

BRACKET, LICENSE

BOLT, WITH WASHER(8V7)

BRACKET, REFLECTOR

SCREW, PAN

WASHER(1RW)

PLUG

SEAL

FLAP

COVER, REAR FENDER

SCREW, BIND(J39)

COLLAR (8G8)

EMBLEM, YAMAHA
