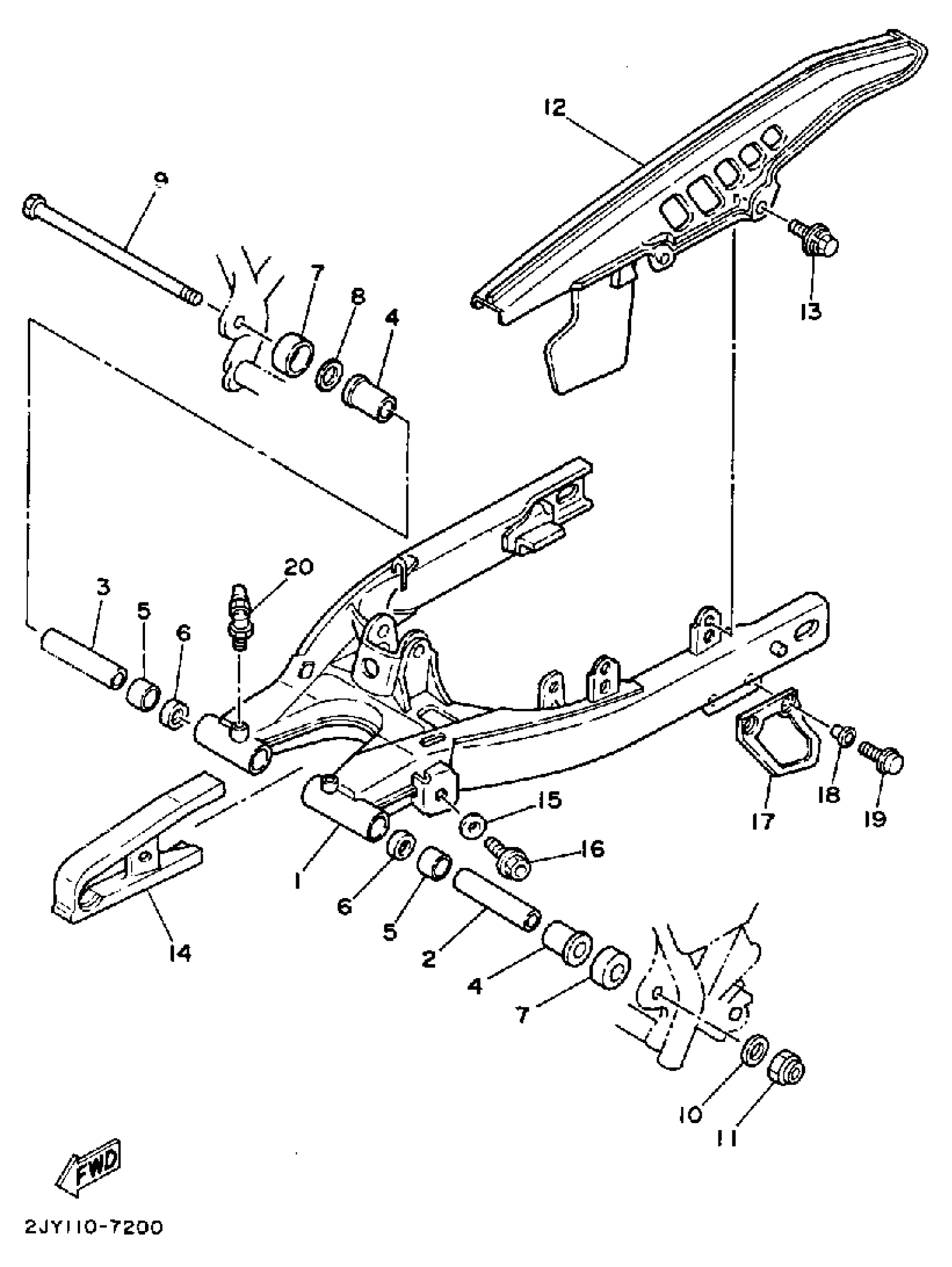

Yamaha TW200DC (TRAILWAY CA) 1992 SWING ARM Diagram

#

Description
Price

1

REAR ARM COMP.

2JX-22110-00-35

$681.59

2

BUSH 1

2JX-22123-00-00

Unavailable

3

BUSH 2

2JX-22124-00-00

Unavailable

4

BUSH(1KH)

90386-18146-00

$15.11

5

BUSH, SOLID(12T)

90380-18139-00

$15.62

6

OIL SEAL (2J5)

93109-18020-00

$10.65

7

COVER, THRUST 1

401-22128-01-00

$24.30

8

SHIM

401-22127-00-00

$6.30

9

SHAFT, PIVOT

2JX-22141-00-00

Unavailable

10

WASHER, PLATE (4N0)

90201-126A7-00

$5.98

11

NUT, SELF-LOCKING(1KH)

90185-12134-00

$9.63

12

CASE, CHAIN

34X-22311-01-00

$28.02

13

BOLT, WITH WASHER (4L0)

90119-05059-00

$1.76

14

SEAL, GUARD

34X-22151-01-00

$76.41

15

WASHER (3R8)

90209-06187-00

$5.88

16

BOLT, WITH WASHER (10V)

90119-05062-00

Unavailable

17

SUPPORT, CHAIN

38V-22199-00-00

Unavailable

18

COLLAR (3L6)

90387-06737-00

Unavailable

19

BOLT, FLANGE

95817-06020-00

Unavailable

20

NIPPLE, GREASE (36X)

93700-06009-00

Unavailable
