1992 Yamaha Trailway CA (TW200DC) Handlebar Cable Diagram

← All diagrams

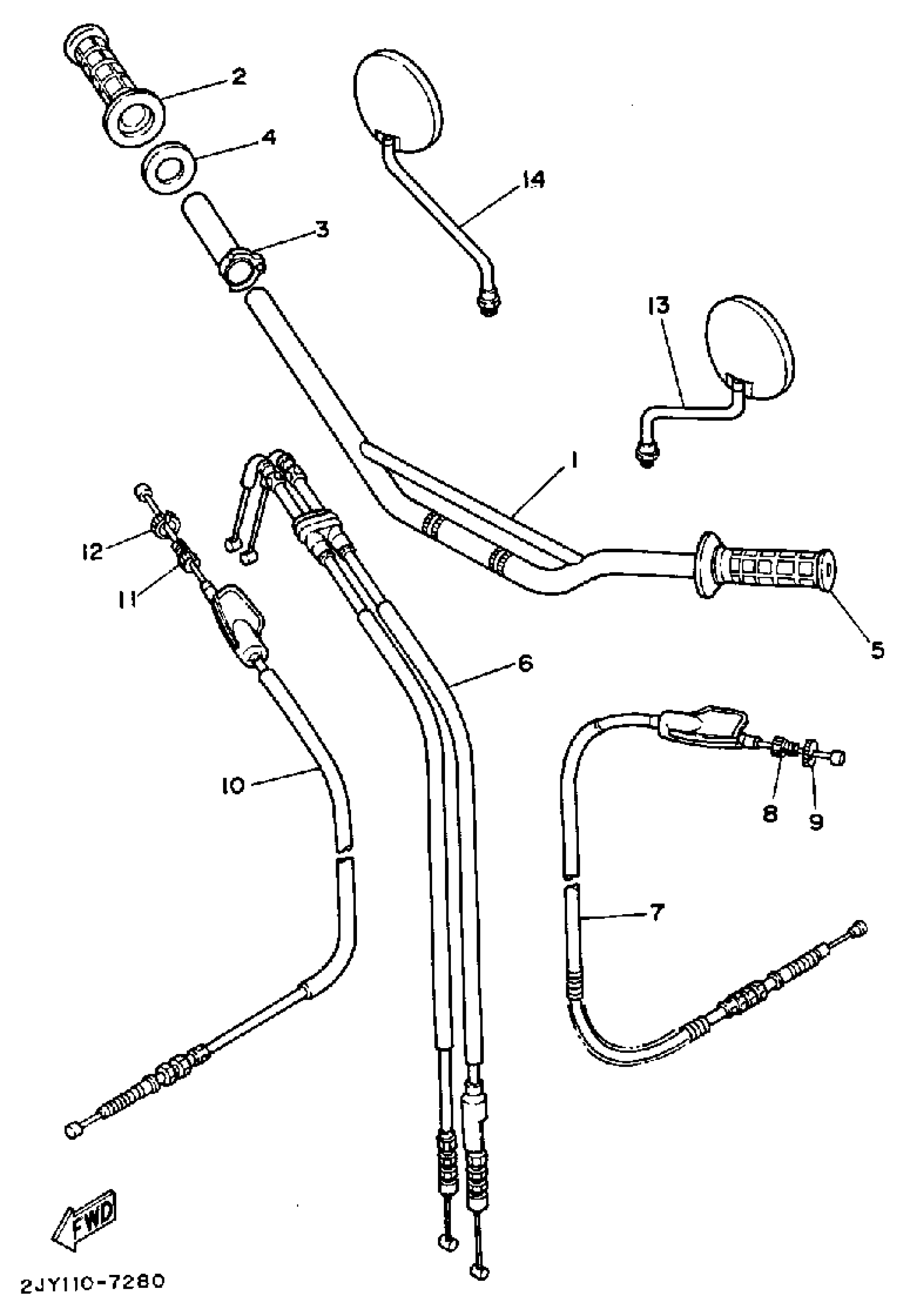

Find the part on the Handlebar Cable diagram for your 1992 Yamaha Trailway CA (TW200DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Trailway CA (TW200DC) Handlebar Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

5LB-26111-00-00

1

$60.49

In stock

2

GRIP RH

33G-26242-01-00

—
Out of stock

3

TUBE, THROTTLE GUIDE

1RF-26243-00-00

1
Out of stock

4

RING, LEAF

3Y1-26249-00-00

1

$8.54

In stock

5

GRIP

33G-26241-01-00

—
Out of stock

6

THROTTLE CABLE ASSY

2JX-26302-01-00

1

$84.50

In stock

7

CABLE, CLUTCH

1RL-26335-00-00

—

$38.24

In stock

8

BOLT

90123-08002-00

1

$8.93

In stock

9

NUT

90179-08030-00

1

$3.78

In stock

10

CABLE, BRAKE

2JX-26341-10-00

1

$51.31

In stock

11

BOLT

90123-08002-00

1

$8.93

In stock

12

NUT

90179-08030-00

1

$3.78

In stock

13

MIRROR ASSY., 2

5Y1-26290-11-00

1
Out of stock

14

1

$45.60

In stock
