2012 Yamaha TW200 CA (TW200BC1) Taillight Diagram

← All diagrams

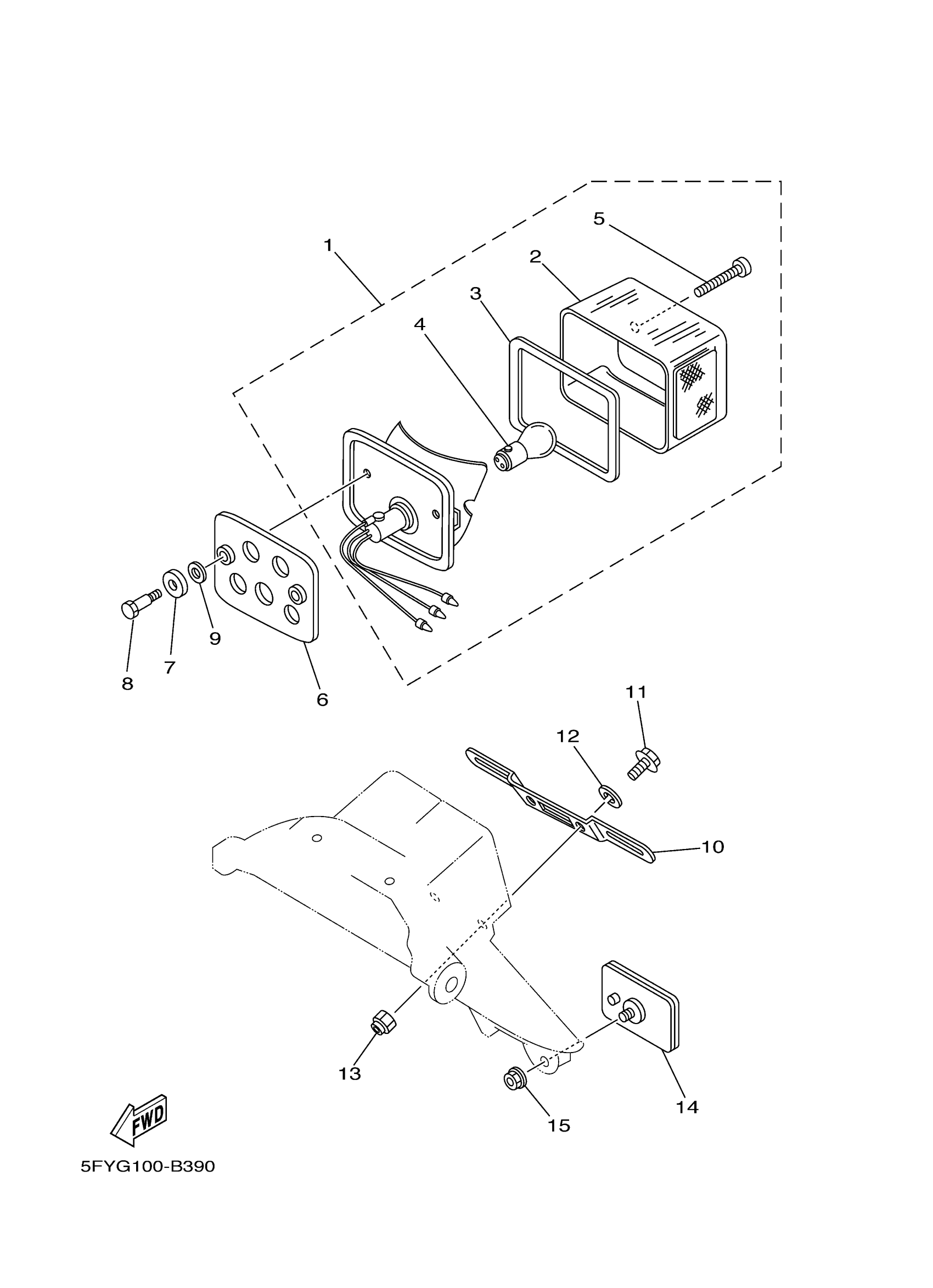

Find the part on the Taillight diagram for your 2012 Yamaha TW200 CA (TW200BC1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha TW200 CA (TW200BC1) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSY

1W9-84710-61-00

1

$96.22

In stock

2

LENS, TAIL LAMP

1M1-84521-60-00

1

$35.69

In stock

3

GASKET, TAIL LENS

1M1-84523-60-00

1

$11.03

In stock

4

1

$10.02

In stock

5

SCREW, ADJUSTING

5BF-8433E-00-00

1

$6.11

In stock

6

DAMPER

4L0-84753-00-00

—

$14.00

In stock

7

WASHER, SPECIAL (498)

90209-08125-00

1

$9.83

In stock

8

BOLT 337847520000

90109-06005-00

1

$6.29

In stock

9

WASHER, PLATE (4L0)

90201-083A0-00

1

$6.91

In stock

10

BRACKET, LICENCE

36A-84551-00-00

—

$18.55

In stock

11

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

12

WASHER, PLATE

90201-06557-00

1

$2.75

In stock

13

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

14

REAR REFLECTOR ASSY

4KM-85130-00-00

1

$20.34

In stock

15

NUT, FLANGE(3GM)

95707-05500-00

1

$6.18

In stock
