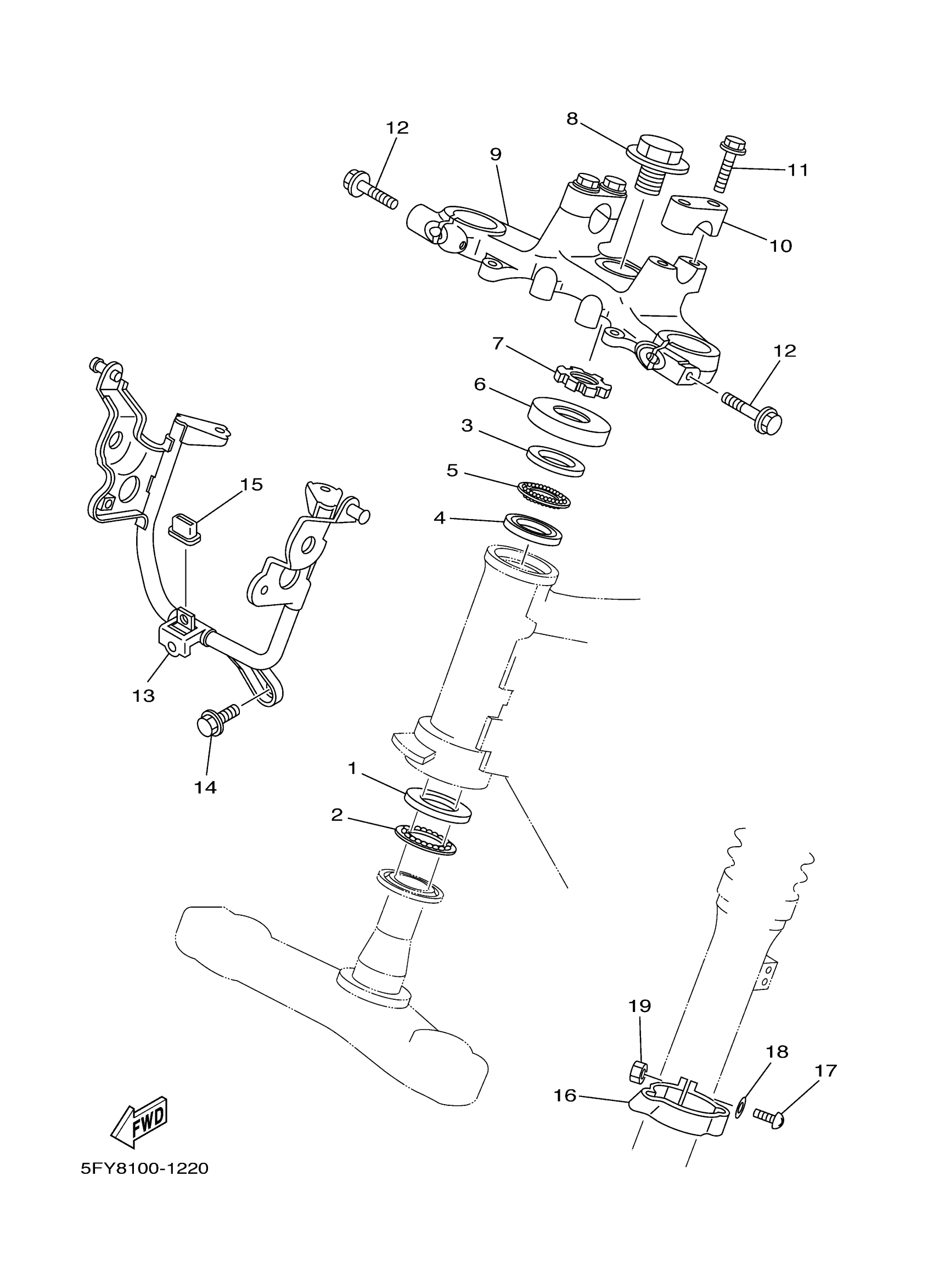

Yamaha TW200BC1 (TW200 CA) 10DN 2012 STEERING Diagram

#

Description
Price

1

RACE, BALL 2

B6E-23412-00-00

$13.49

2

RETAINER, BALL BEARING

B6E-2341E-00-00

$14.99

3

RACE, BALL 1

BP2-23411-00-00

$11.49

4

RACE, BALL 2

BP2-23412-00-00

$7.49

5

RETAINER, BALL BEARING

BP2-2341E-00-00

Unavailable

6

COVER, BALL RACE 2

36X-23416-00-00

$12.99

7

NUT

90179-25004-00

$24.99

8

BOLT (2A2)

90105-14102-00

$5.60

9

CROWN, HANDLE

2JX-23435-10-35

$135.99

10

HOLDER, HANDLE UPPER

1E6-23441-10-35

$23.99

11

BOLT, FLANGE(4FM)

95814-08035-00

$8.49

12

BOLT, FLANGE(3XF)

95024-08050-00

$8.49

13

STAY, HEADLIGHT

5FY-23174-00-00

$98.99

14

BOLT, FLANGE

95817-06012-00

$1.43

15

DAMPER

30X-23445-00-00

$9.99

16

HOLDER, CABLE

34X-23317-00-00

Unavailable

17

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

18

WASHER(1RW)

92907-05600-00

Unavailable

19

NUT, HEXAGON

95317-05600-00

Unavailable
