2012 Yamaha TW200 CA (TW200BC1) Side Cover Diagram

← All diagrams

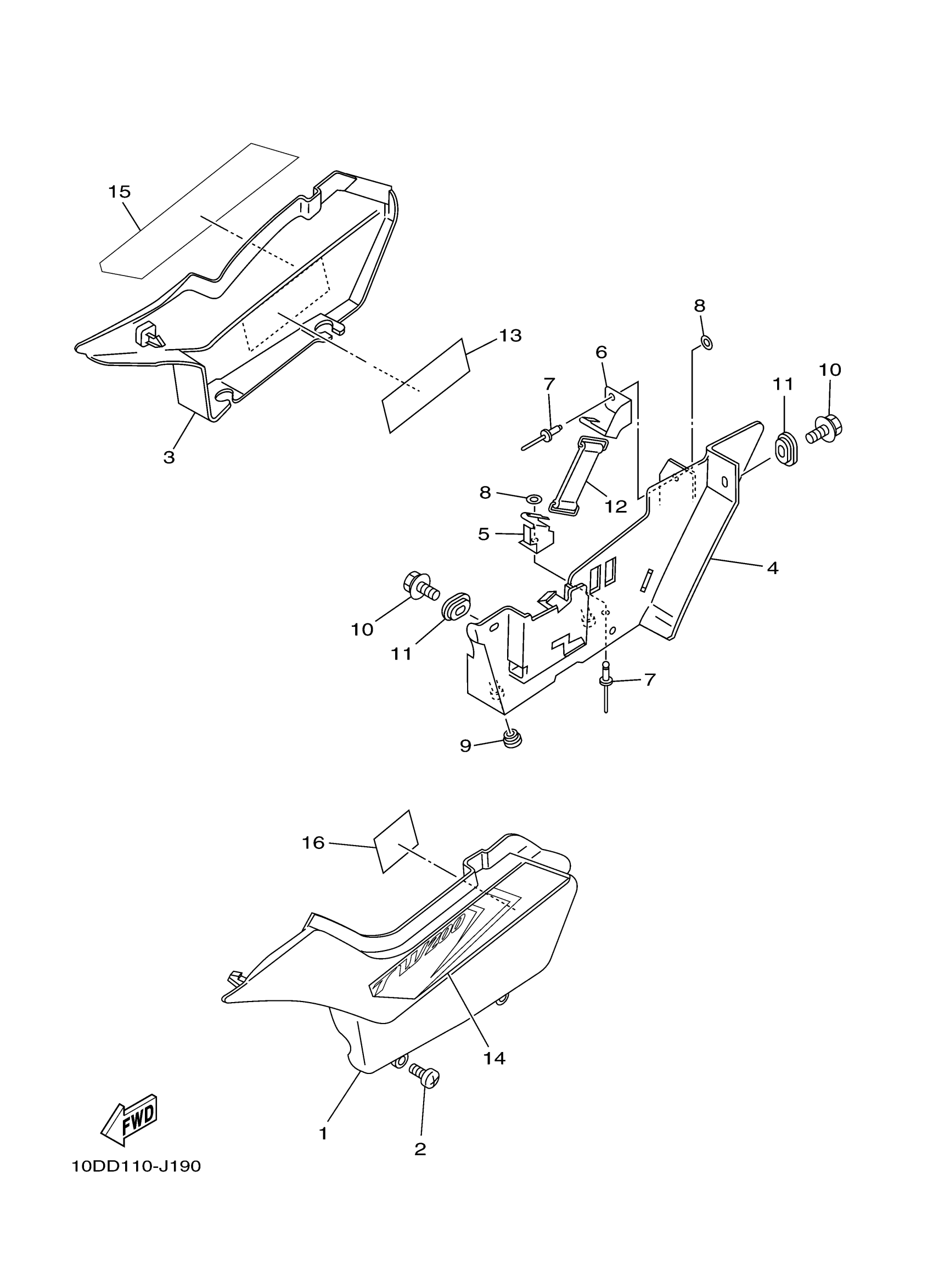

Find the part on the Side Cover diagram for your 2012 Yamaha TW200 CA (TW200BC1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha TW200 CA (TW200BC1) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

3AW-21711-20-0X

1
Out of stock

2

SCREW, BINDING (10V)

90154-05013-00

1
Out of stock

3

COVER, SIDE 2

3AW-21721-20-0X

1
Out of stock

4

BOX

5EK-2177A-00-00

1

$32.42

In stock

5

BRACKET 1

5EK-2175T-00-00

1

$14.32

In stock

6

BRACKET 2

5EK-2175U-00-00

—

$13.51

In stock

7

RIVET,BLIND

90267-40080-00

1
Out of stock

8

WASHER, PLATE(26H)

90201-044H9-00

1

$6.68

In stock

9

GROMMET

90480-13014-00

1

$6.85

In stock

10

BOLT, WITH WASHER

90119-06152-00

1

$2.74

In stock

11

GROMMET(41Y)

90480-01401-00

1

$5.51

In stock

12

BAND, BATTERY

116-82131-00-00

1
Out of stock

13

LABEL, NOTICE BATTERY

10D-2815N-00-00

—
Out of stock

14

GRAPHIC 1

10D-2173E-10-00

1
Out of stock

15

GRAPHIC 2

10D-2173F-10-00

1
Out of stock
