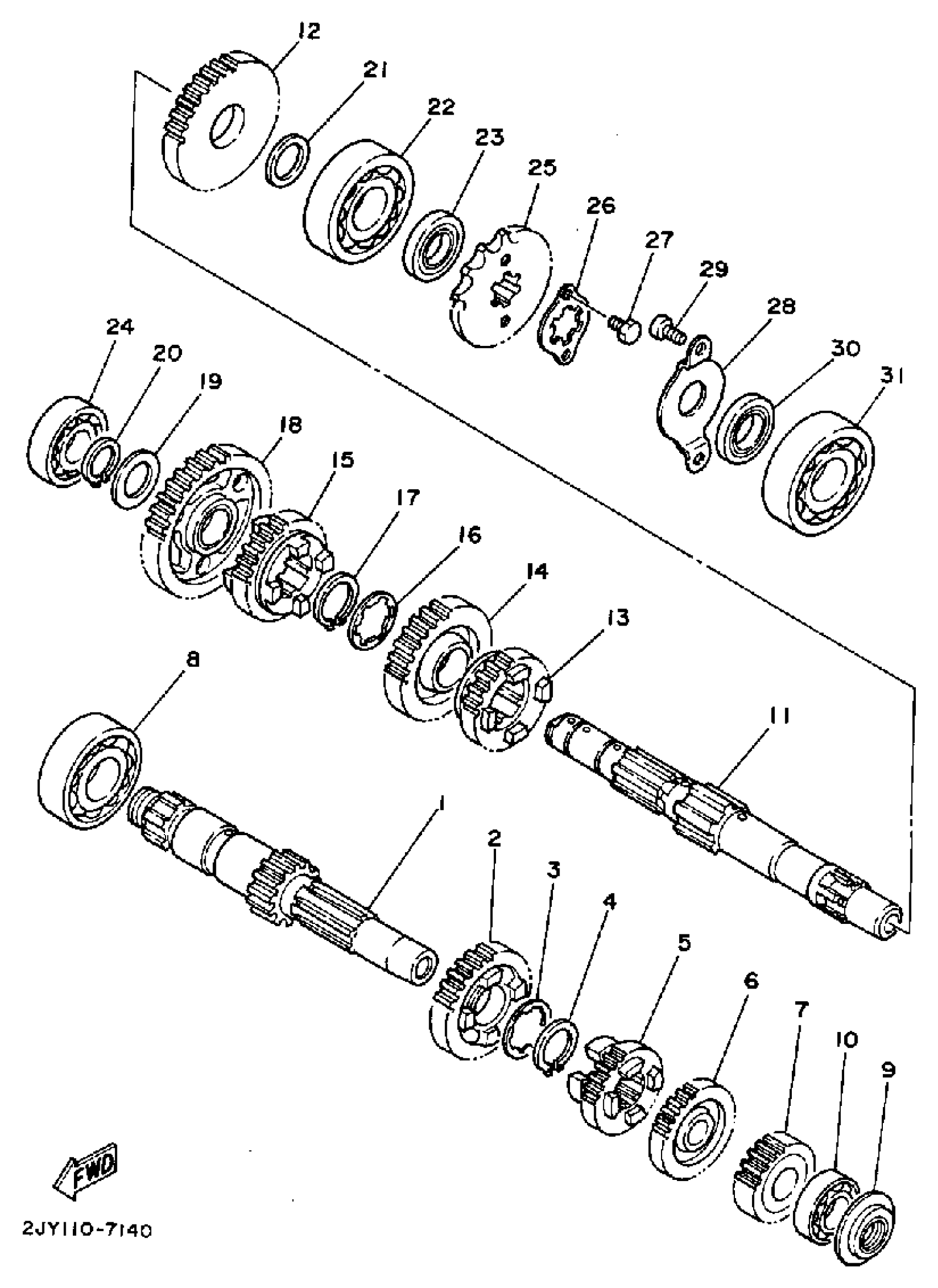

Yamaha TW200BC (TRAILWAY CA) 1991 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

15A-17411-01-00

Unavailable

2

GEAR, 5TH PINION

15A-17151-01-00

Unavailable

3

WASHER (5H0)

90209-16209-00

$7.49

4

CIRCLIP (525)

93410-20038-00

$3.76

5

GEAR, 2ND PINION

5H0-17121-01-00

Unavailable

6

GEAR, 4TH PINION

15A-17141-00-00

Unavailable

7

GEAR, 2ND PINION

15A-17121-00-00

Unavailable

8

BEARING(1YW)

93306-20461-00

$39.99

9

OIL SEAL (5H0)

93101-15101-00

$11.49

10

BRG, R-B (7H4)

93306-20211-00

$25.99

11

DRIVE AXLE ASSY

2JX-17402-00-00

Unavailable

12

GEAR, 2ND WHEEL

15A-17221-00-00

Unavailable

13

GEAR, 4TH WHEEL

15A-17241-00-00

Unavailable

14

GEAR, 3RD WHEEL

15A-17231-00-00

Unavailable

15

GEAR, 6TH WHEEL

5MP-17261-00-00

Unavailable

16

WASHER (5H0)

90209-18208-00

Unavailable

17

CIRCLIP (537)

93410-22039-00

Unavailable

18

GEAR, 1ST WHEEL

15A-17211-01-00

Unavailable

19

WASHER PLATE 306155610000

90201-17257-00

Unavailable

20

CIRCLIP(1EY)

99009-17400-00

Unavailable

21

WASHER, PLATE(3HN)

90201-225M9-00

Unavailable

22

BEARING(2JX)

93306-20580-00

Unavailable

23

OIL SEAL(2JX)

93102-22389-00

Unavailable

24

BEARING (30X)

93306-20332-00

Unavailable

25

SPROCKET, DRIVE 14T

93823-14149-00

Unavailable

26

HOLDER, SPROCKET

2JX-17456-00-00

Unavailable

27

BOLT (682)

97095-05010-00

Unavailable

28

PLATE, COVER

2JX-17471-00-00

Unavailable

29

SCREW PAN HEAD

98580-06010-00

Unavailable

30

OIL SEAL (17X40X5-3E8)

93102-17187-00

Unavailable

31

BEARING(37F)

93306-20335-00

Unavailable
