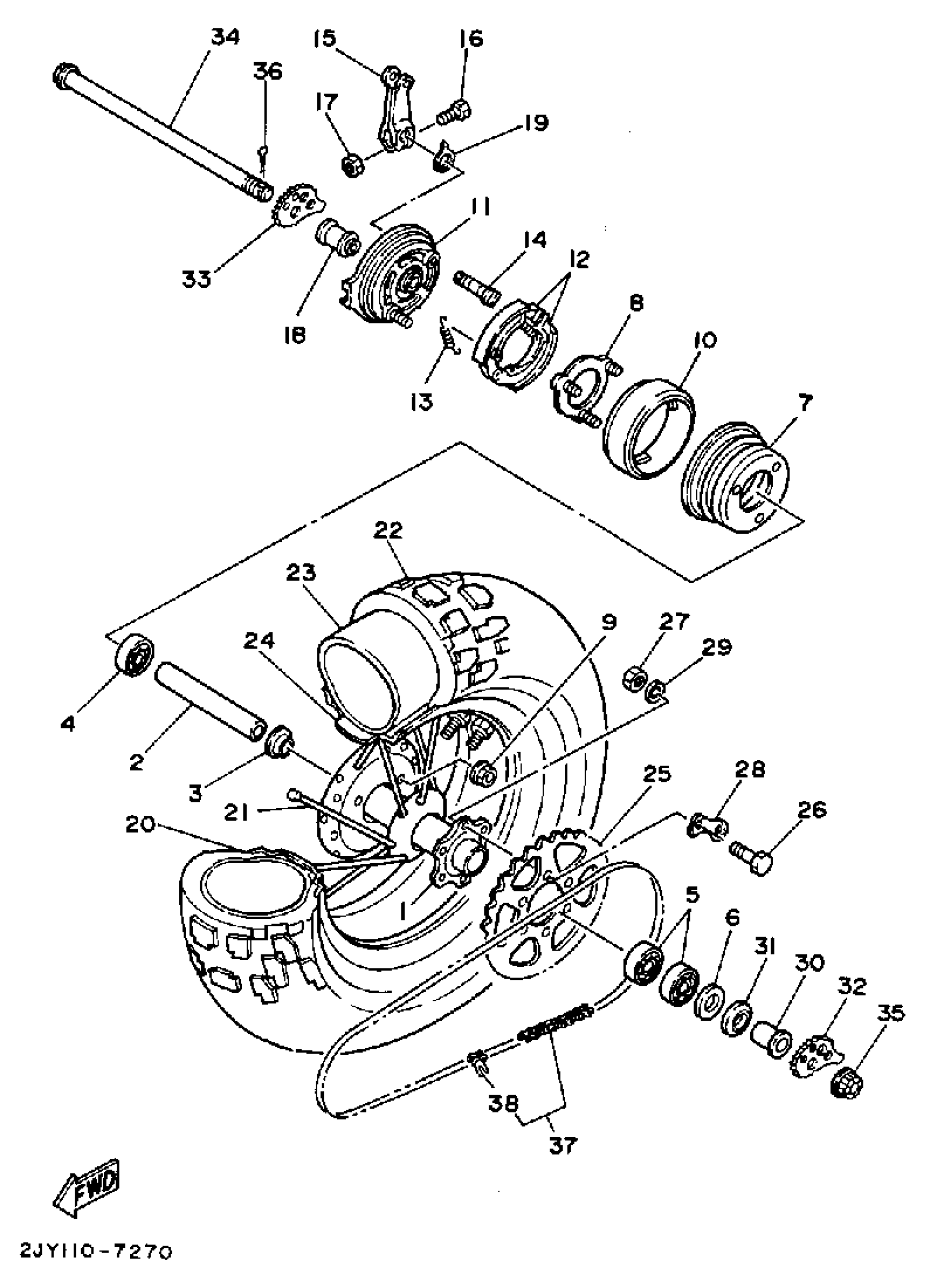

Yamaha TW200BC (TRAILWAY CA) 1991 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

2JX-25311-00-00

$307.99

2

SPACER(24W)

90560-17305-00

$18.99

3

FLANGE, SPACER

146-25315-00-00

$7.99

4

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

5

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

6

OIL SEAL(36R)

93102-25311-00

Unavailable

7

DRUM, BRAKE

5V7-2511E-00-35

Unavailable

8

RING 1

54G-25185-00-00

Unavailable

9

NUT (22U)

90179-08410-00

$9.49

10

RING 2

2JX-25336-00-00

$63.99

11

PLATE, BRAKE SHOE

2JX-25321-02-35

Unavailable

12

BRAKE SHOE KIT

4BE-W253E-00-00

$21.99

13

SPRING, TENSION

90506-15260-00

$8.49

14

CAMSHAFT

4GL-25351-00-00

$68.99

15

LEVER, CAM SHAFT

2N3-25155-00-00

$28.99

16

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

17

NUT, HEXAGON

95380-06600-00

Unavailable

18

COLLAR(2JX)

90387-171T1-00

Unavailable

19

PLATE, INDICATOR

2JX-2533A-00-00

Unavailable

20

RIM(2JL)

94445-14479-00

Unavailable

21

SPOKE SET, REAR

2JX-25304-21-00

Unavailable

22

TIRE (180/80-14M/C 78PTW32T/T)

94118-145U2-00

Unavailable

23

TUBE(2JX)

94218-14251-00

Unavailable

24

BAND, RIM(2JX)

94318-14149-00

Unavailable

25

SPROCKET, DRIVEN (50T)

15A-25450-20-00

Unavailable

26

BOLT (5F7)

90109-08618-00

Unavailable

27

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

28

WASHER, LOCK (3Y2)

90215-08160-00

Unavailable

29

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

30

COLLAR(2JX)

90387-171T2-00

Unavailable

31

COVER, HUB DUST

36R-25367-00-00

Unavailable

32

PULLER, CHAIN 1

3Y1-25388-01-00

Unavailable

33

PULLER, CHAIN 2

3Y1-25389-00-00

Unavailable

34

AXLE, WHEEL

2JX-25381-00-00

Unavailable

35

NUT, CASTLE (2H6)

90171-16024-00

Unavailable

36

PIN, COTTER

91490-30030-00

Unavailable

37

CHAIN(53V)

94580-24126-00

Unavailable

38

JOINT, CHAIN

94682-51001-00

Unavailable
