1991 Yamaha Trailway CA (TW200BC) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1991 Yamaha Trailway CA (TW200BC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

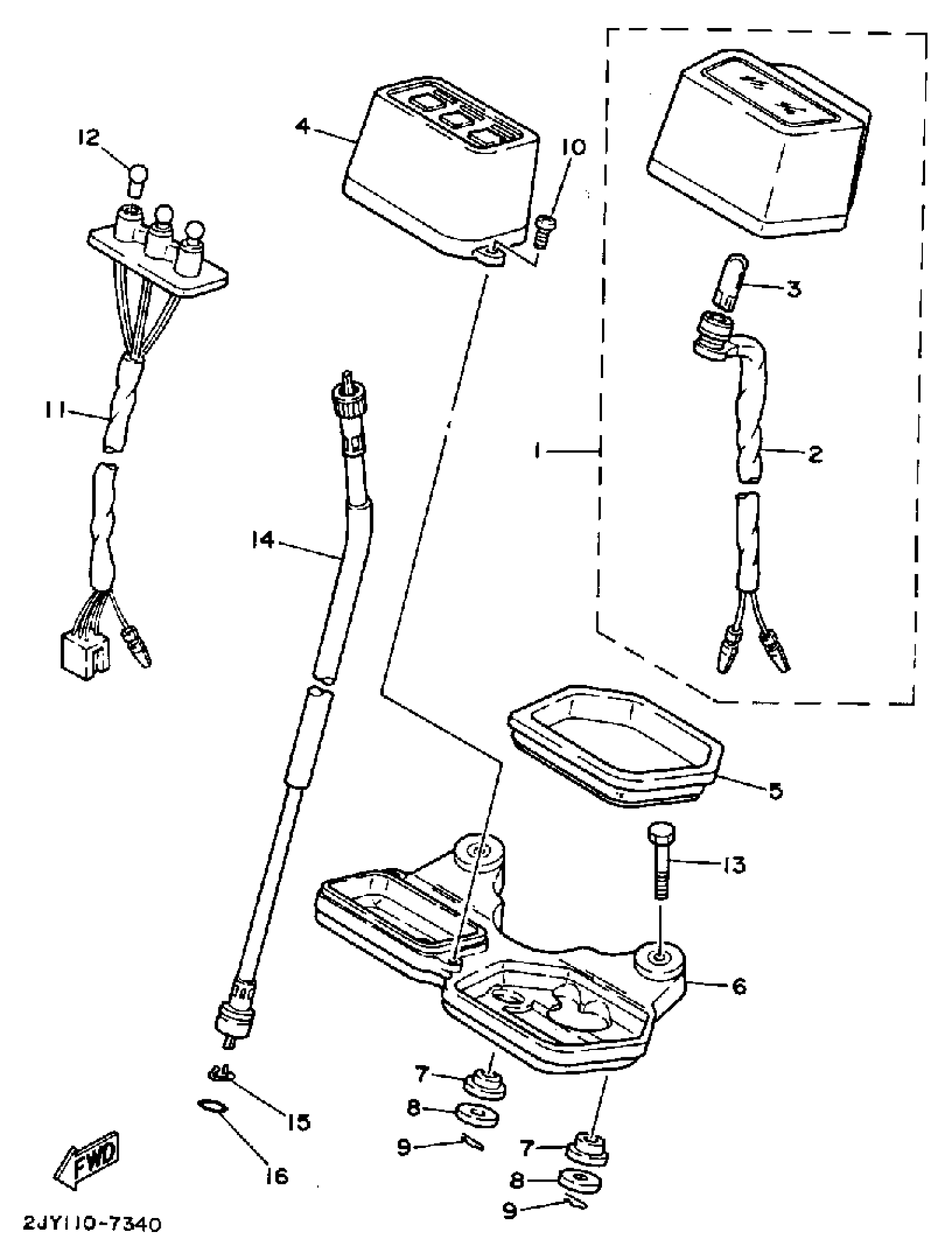

1991 Yamaha Trailway CA (TW200BC) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

2JX-83510-A0-00

1
Out of stock

2

SOCKET CORD ASSY

5E2-83509-20-00

1
Out of stock

3

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

4

PILOT BOX, UPPER

15A-83568-00-00

1
Out of stock

5

DAMPER

5Y1-83513-00-00

—
Out of stock

6

BRACKET, METER

15A-83519-00-00

1
Out of stock

7

DAMPER 2

1M1-83526-01-00

1
Out of stock

8

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

9

CLIP (156-83525-00)

90468-10050-00

1
Out of stock

10

SCREW, TAPPING (15A)

90164-04008-00

1
Out of stock

11

SOCKET CORD ASSY

15A-83509-01-00

1
Out of stock

12

BULB (12V-3.4W)

123-83516-21-00

1
Out of stock

13

BOLT, FLANGE

95817-06040-00

1
Out of stock

14

SPEEDOMETER CABLE ASSY

1JN-83550-02-00

1
Out of stock

15

RING, STOP

102-25137-00-00

1
Out of stock

16

O-RING (26H)

93210-14579-00

—
Out of stock
