1990 Yamaha Trailway CA (TW200AC) Seat Diagram

← All diagrams

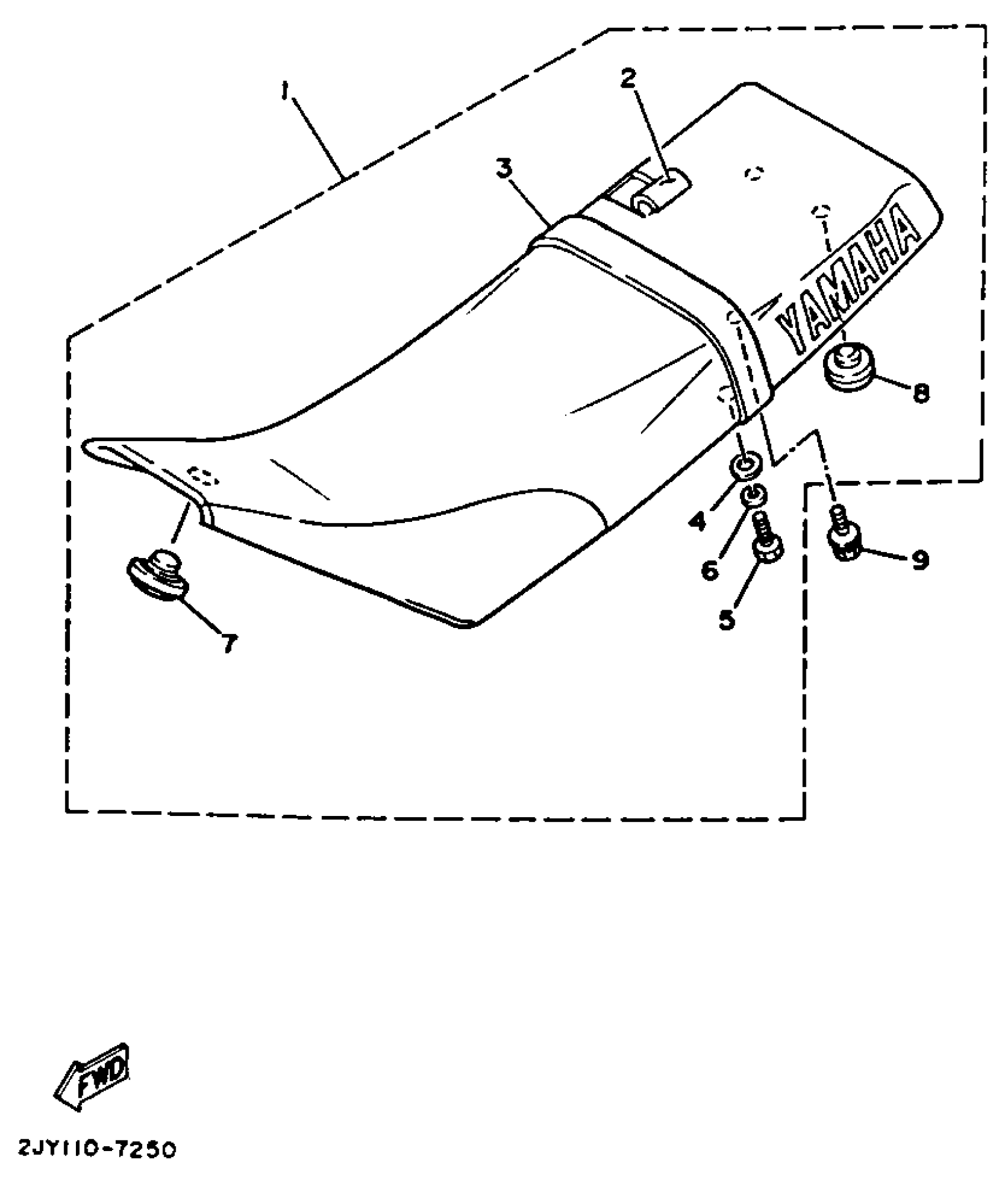

Find the part on the Seat diagram for your 1990 Yamaha Trailway CA (TW200AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Trailway CA (TW200AC) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEMI-DBL SEAT ASSEMBLYASS''Y

2JX-24770-10-00

1
Out of stock

1

SEMI-DOUBLE SEAT ASSEMBLY

2JX-24770-20-00

1
Out of stock

2

. COVER, DOUBLE SEAT

2JX-24731-10-00

1
Out of stock

2

. COVER, SEAT

2JX-24731-20-00

1
Out of stock

3

BAND,SEAT

3BN-24734-30-00

1
Out of stock

3

. BAND, SEAT (2JX-24734-10)

2YY-24734-00-00

1
Out of stock

4

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

5

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

DAMPER, SEAT

18A-24723-00-00

1

$8.17

In stock

8

PAD, SEAT

1L9-24741-00-00

1

$8.91

In stock

9

BOLT, WITH WASHER (10V)

90119-06063-00

1

$6.29

In stock
