1990 Yamaha Trailway CA (TW200AC) Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 1990 Yamaha Trailway CA (TW200AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

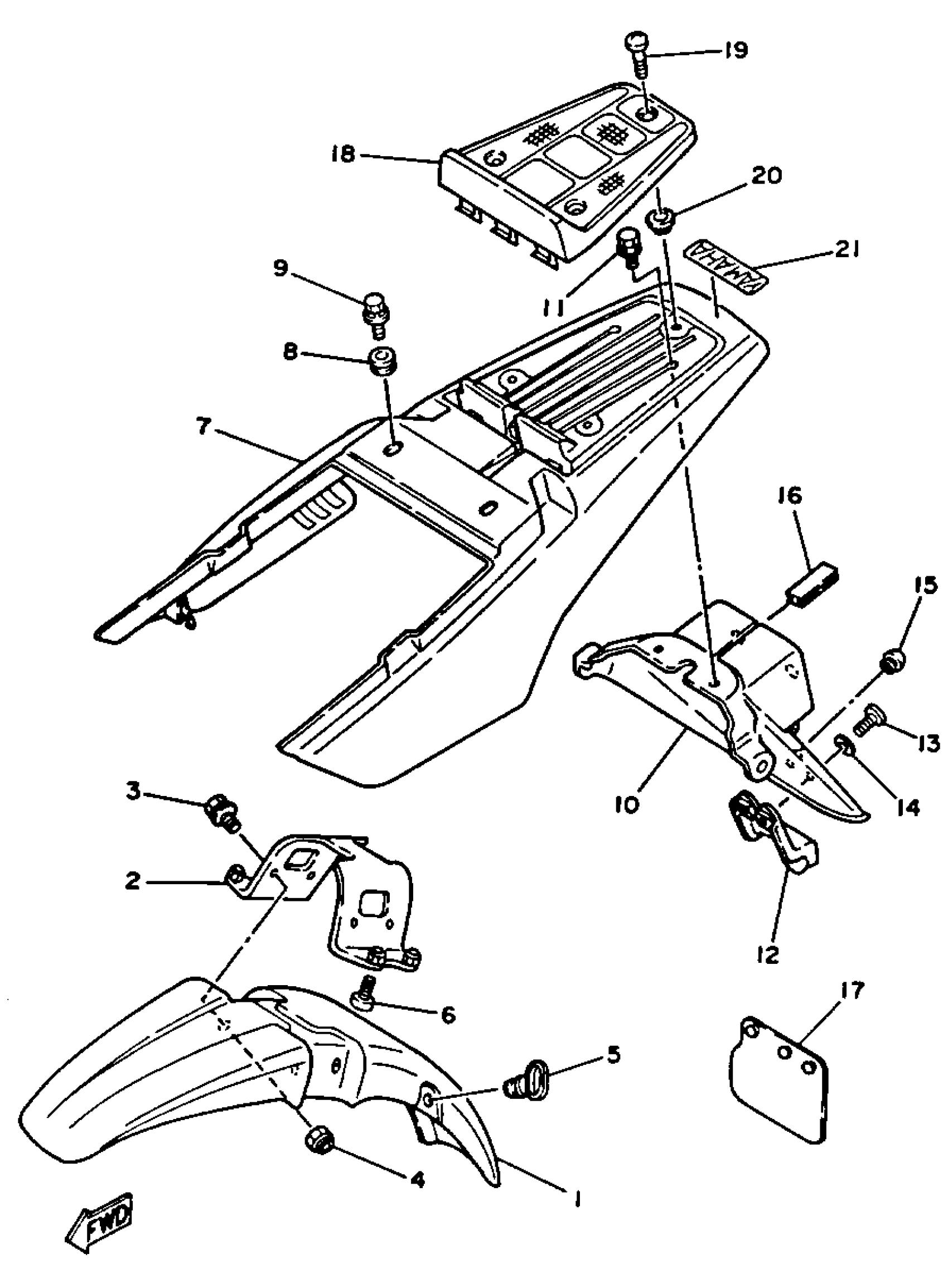

1990 Yamaha Trailway CA (TW200AC) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

2YG-21511-00-00

1
Out of stock

1

FENDER, FRONT

3AW-21511-10-00

1
Out of stock

2

BRACKET, FENDER

2JX-21512-00-00

1
Out of stock

3

BOLT, WITH WASHER

90119-05071-00

1
Out of stock

4

NUT, S/L FLANGE

95607-05200-00

1
Out of stock

5

GUIDE, WIRE

1A8-21518-00-00

1
Out of stock

6

BOLT,SOCKET HEAD

91314-06020-00

1
Out of stock

7

FENDER, REAR

2YG-21611-00-00

1
Out of stock

7

FENDER, REAR

3AW-21611-10-00

1
Out of stock

8

DAMPER, SIDE COVER (437)

90480-12053-00

1
Out of stock

9

BOLT, WITH WASHER (10V)

90119-06063-00

1
Out of stock

10

BRACKET, LICENSE

2JX-21685-01-00

1
Out of stock

11

BOLT, WITH WASHER(8V7)

90119-06108-00

1
Out of stock

12

BRACKET, REFLECTOR

2JX-21641-00-00

—
Out of stock

13

SCREW, PAN

98517-05012-00

1
Out of stock

14

WASHER(1RW)

92907-05600-00

—
Out of stock

15

PLUG

90338-07018-00

—
Out of stock

16

SEAL

2JX-21669-00-00

—
Out of stock

17

FLAP

34X-21691-00-00

—
Out of stock

18

COVER, REAR FENDER

2JX-21651-00-00

1
Out of stock

19

SCREW, BIND(J39)

98980-06014-00

—
Out of stock

20

COLLAR (8G8)

90387-06681-00

—
Out of stock

21

EMBLEM, YAMAHA

99241-00080-00

—
Out of stock
