Description

Price

1

OIL PUMP ASSY

5H0-13300-02-00

$165.99

2

GEAR, PUMP DRIVEN 2

5H0-13326-01-00

$39.99

3

PIN,DOWEL (137)

93603-12030-00

$2.07

4

GASKET, PUMP COVER

3GD-13329-00-00

$7.99

5

SCREW, FLAT

98707-06030-00

$7.99

5

SCREW, FLAT

98707-06030-00

$7.99

6

STRAINER, OIL

51Y-13411-00-00

$37.99

7

SPRING, COMPRESSION (3Y1)

90501-18576-00

$8.49

8

PLUG, DRAIN

5H0-15351-00-00

$31.99

9

O-RING

93210-347A1-00

$7.49

10

OIL CLEANER ASSY

5H0-13440-09-00

$10.99

11

COVER, OIL ELEMENT

3AW-13447-01-00

Unavailable

12

O-RING (341)

93210-54175-00

$13.49

13

BOLT (583 OIL DRAIN)

90109-06419-00

$8.49

14

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$6.99

15

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

16

SCREW, PAN

98507-06075-00

Unavailable

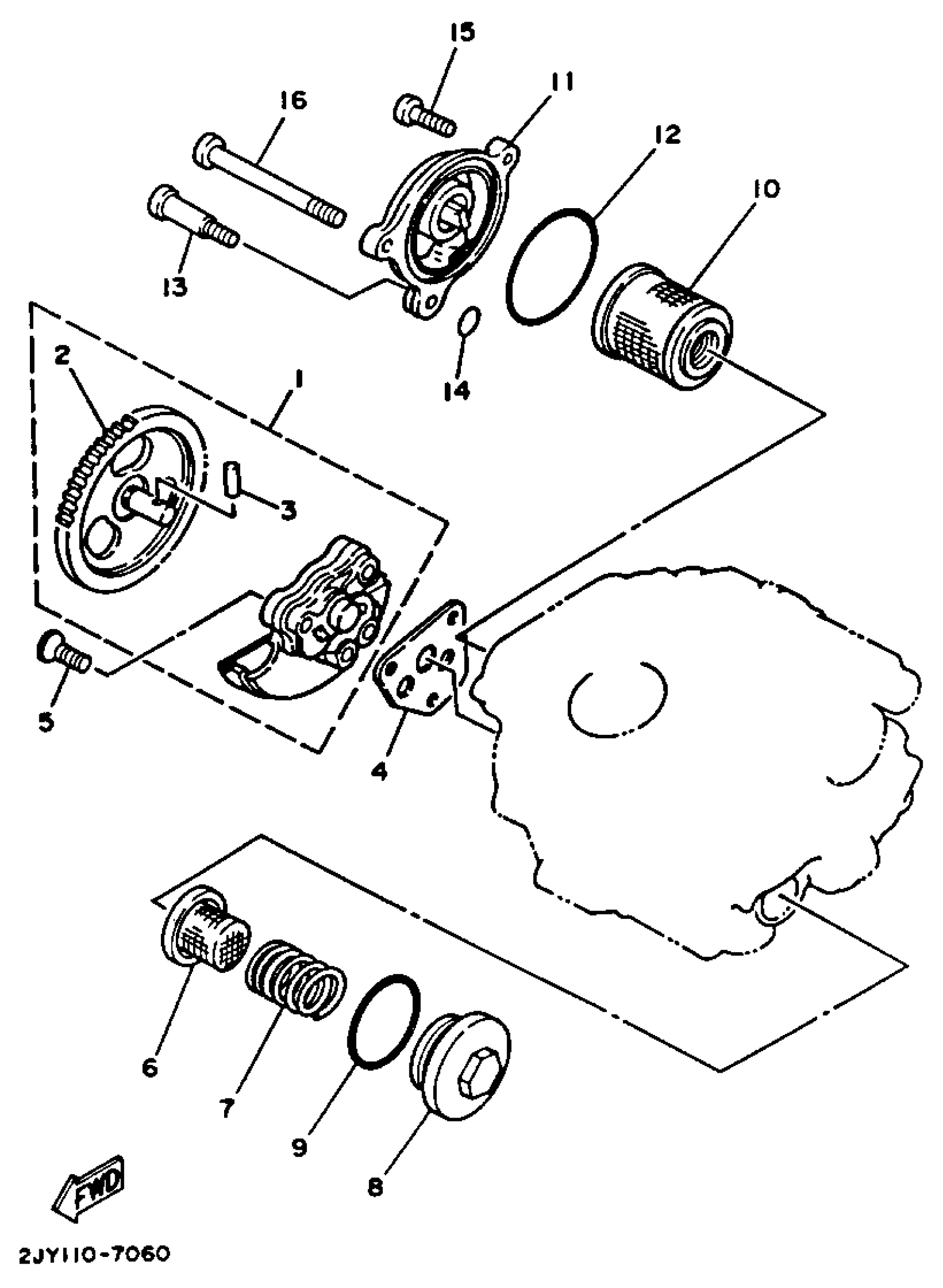

Yamaha TW200AC (TRAILWAY CA) 1990 OIL PUMP Diagram

OIL PUMP ASSY

GEAR, PUMP DRIVEN 2

PIN,DOWEL (137)

GASKET, PUMP COVER

SCREW, FLAT

SCREW, FLAT

STRAINER, OIL

SPRING, COMPRESSION (3Y1)

PLUG, DRAIN

O-RING

OIL CLEANER ASSY

COVER, OIL ELEMENT

O-RING (341)

BOLT (583 OIL DRAIN)

O-RING (583 OIL DRAIN BOLT)

SCREW, PAN HEAD (76T)

SCREW, PAN
