1990 Yamaha Trailway CA (TW200AC) Handle Switch Lever Diagram

← All diagrams

Find the part on the Handle Switch Lever diagram for your 1990 Yamaha Trailway CA (TW200AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

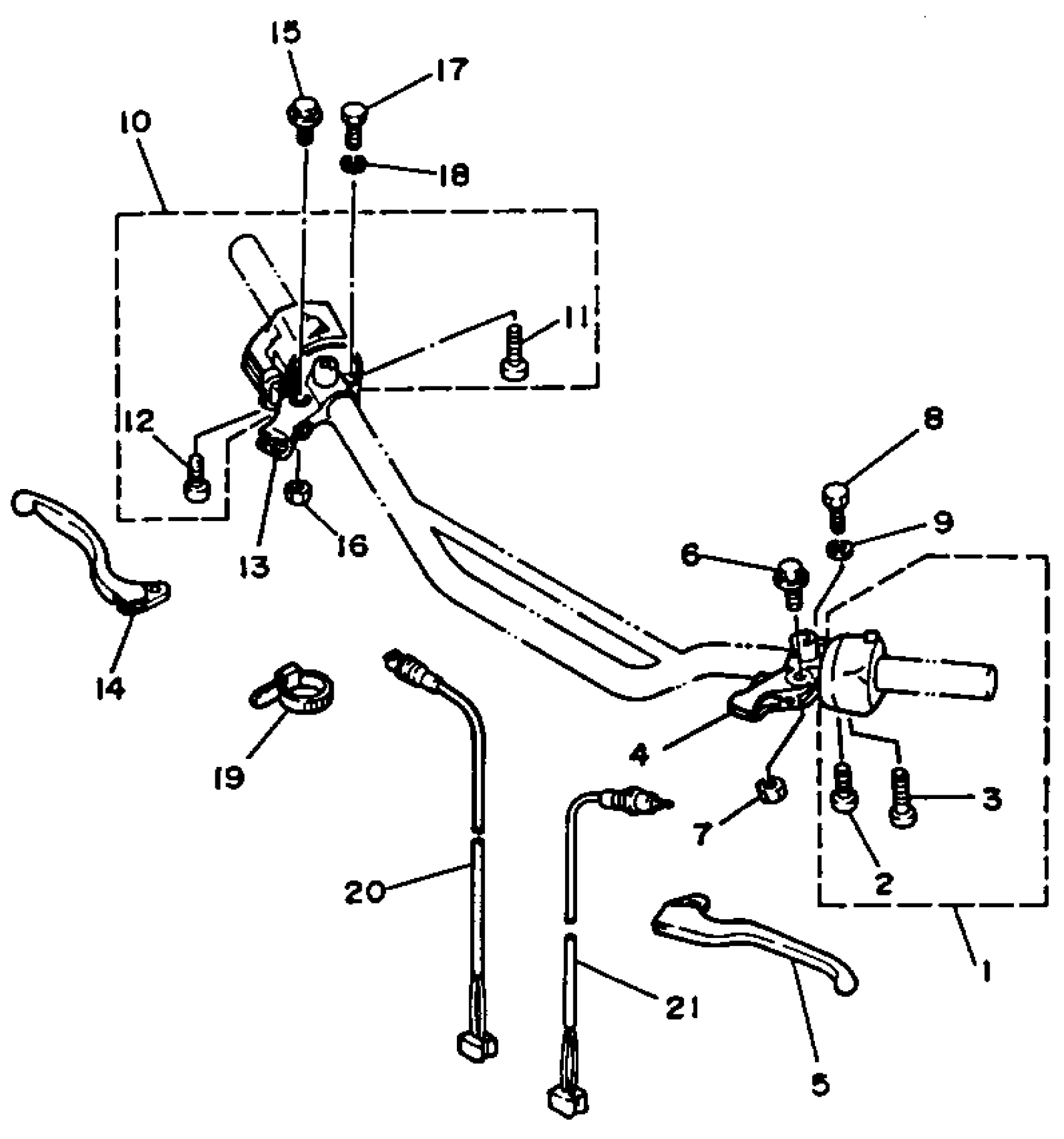

1990 Yamaha Trailway CA (TW200AC) Handle Switch Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH, HANDLE 3

2JX-83973-01-00

1
Out of stock

2

. SCREW, PAN HEAD (98506-05022-00)

98506-05057-00

1
Out of stock

3

SCREW, PAN HEAD

98517-05030-00

1
Out of stock

4

HOLDER, LEVER 1

3Y6-82911-00-00

1
Out of stock

5

LEVER 1

23X-83912-02-00

1
Out of stock

6

BOLT (2YK1)

90109-06799-00

1
Out of stock

7

NUT, SELF-LOCKING

95617-06100-00

1
Out of stock

8

BOLT, HEXAGON

97007-06022-00

—
Out of stock

9

WASHER, SPRING

92907-06100-00

1
Out of stock

10

SWITCH, HANDLE 1

2JX-83976-00-00

1
Out of stock

11

SCREW, PAN

98507-05035-00

1
Out of stock

12

SCREW, PAN HEAD

98517-05020-00

1
Out of stock

13

HOLDER, LEVER 2

83J-82910-00-00

1
Out of stock

14

LEVER R

23X-83922-01-00

1
Out of stock

15

BOLT (2YK1)

90109-06799-00

1
Out of stock

16

NUT, SELF-LOCKING

95617-06100-00

1
Out of stock

17

BOLT, HEXAGON

97007-06022-00

—
Out of stock

18

WASHER, SPRING

92907-06100-00

1
Out of stock

19

BAND, SWITCH CORD

437-83936-01-00

—
Out of stock

20

SWITCH

3Y6-82917-00-00

1
Out of stock

21

SWITCH

3Y6-82917-00-00

1
Out of stock
