- TW200AC (TRAILWAY CA) 1990
ELECTRICAL 1

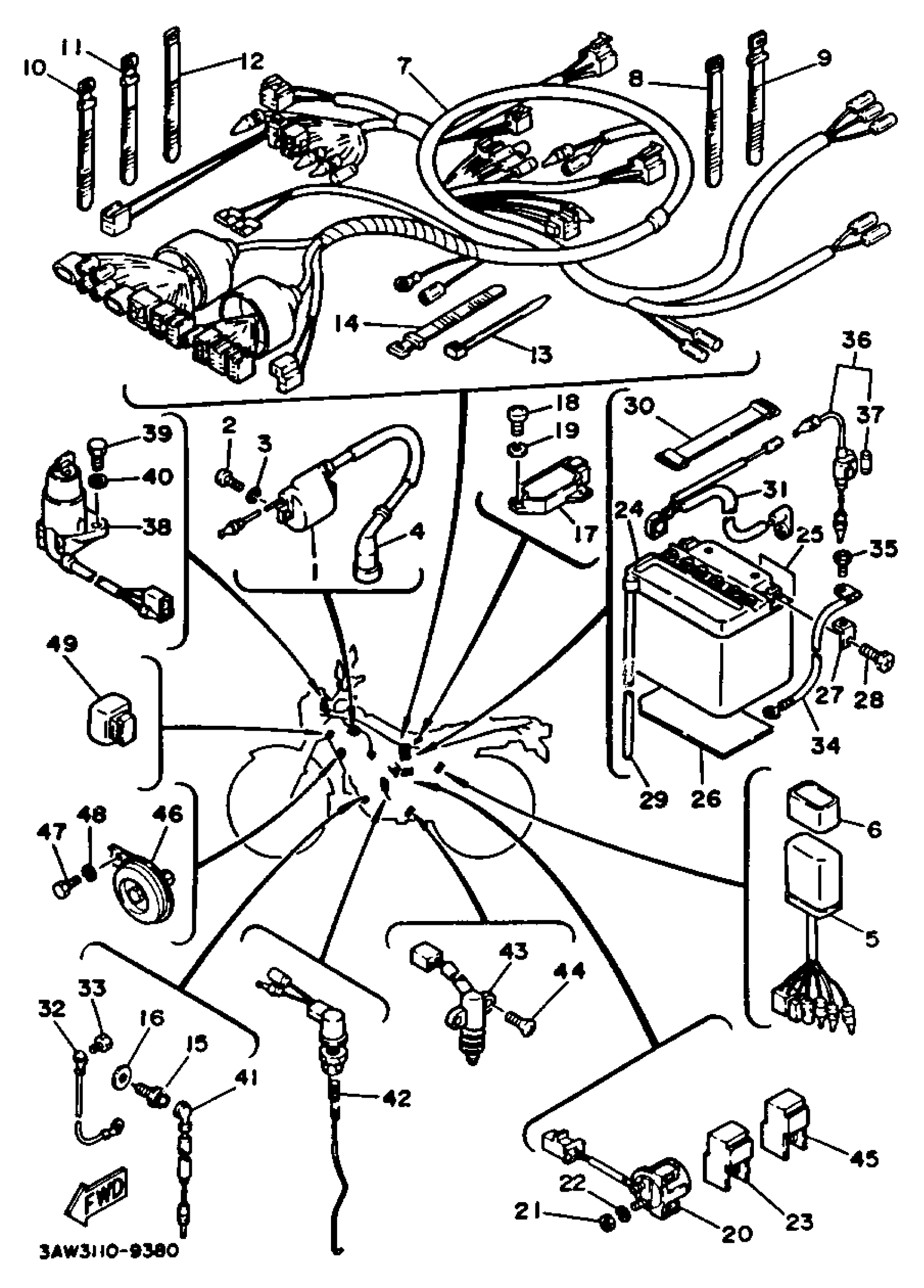

1990 Yamaha Trailway CA (TW200AC) Electrical 1 Diagram
Find the part on the Electrical 1 diagram for your 1990 Yamaha Trailway CA (TW200AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
IGNITION COIL ASSY
4RP-82310-26-00
5
C.D.I. UNIT ASSEMBLY
2YG-85540-M0-00
6
BAND
34X-85546-00-00
7
WIRE HARNESS ASSEMBLY
2YG-82590-00-00
13
BAND
1UA-82591-00-00
14
BAND
341-26397-01-00
15
NEUTRAL SWITCH ASSY
4GY-82540-10-00
20
STARTER RELAY ASSY (MS5D-611)
4KD-81940-00-00
23
RELAY ASSY
12R-81950-02-00
25
LABEL, BATTERY
40A-82141-G0-00
28
SCREW, HEXAGON (5G2)
90153-06032-00
31
WIRE,PLUS LEAD
2JX-82115-00-00
32
WIRE, MINUS LEAD
5H0-82116-00-00
33
BOLT (3H6)
90109-06557-00
34
WIRE, MINUS LEAD
2JX-82116-00-00
35
BOLT (3H6)
90109-06557-00
36
FUSE HOLDER ASSY
2TV-82150-02-00
38
MAIN SWITCH STEERING LOCK
2GK-82501-01-00
41
WIRE, LEAD
2JX-82541-00-00
43
SWITCH, SIDE STAND
1VJ-82566-00-00
49
FLASHER RELAY ASSY
30X-83350-20-00
