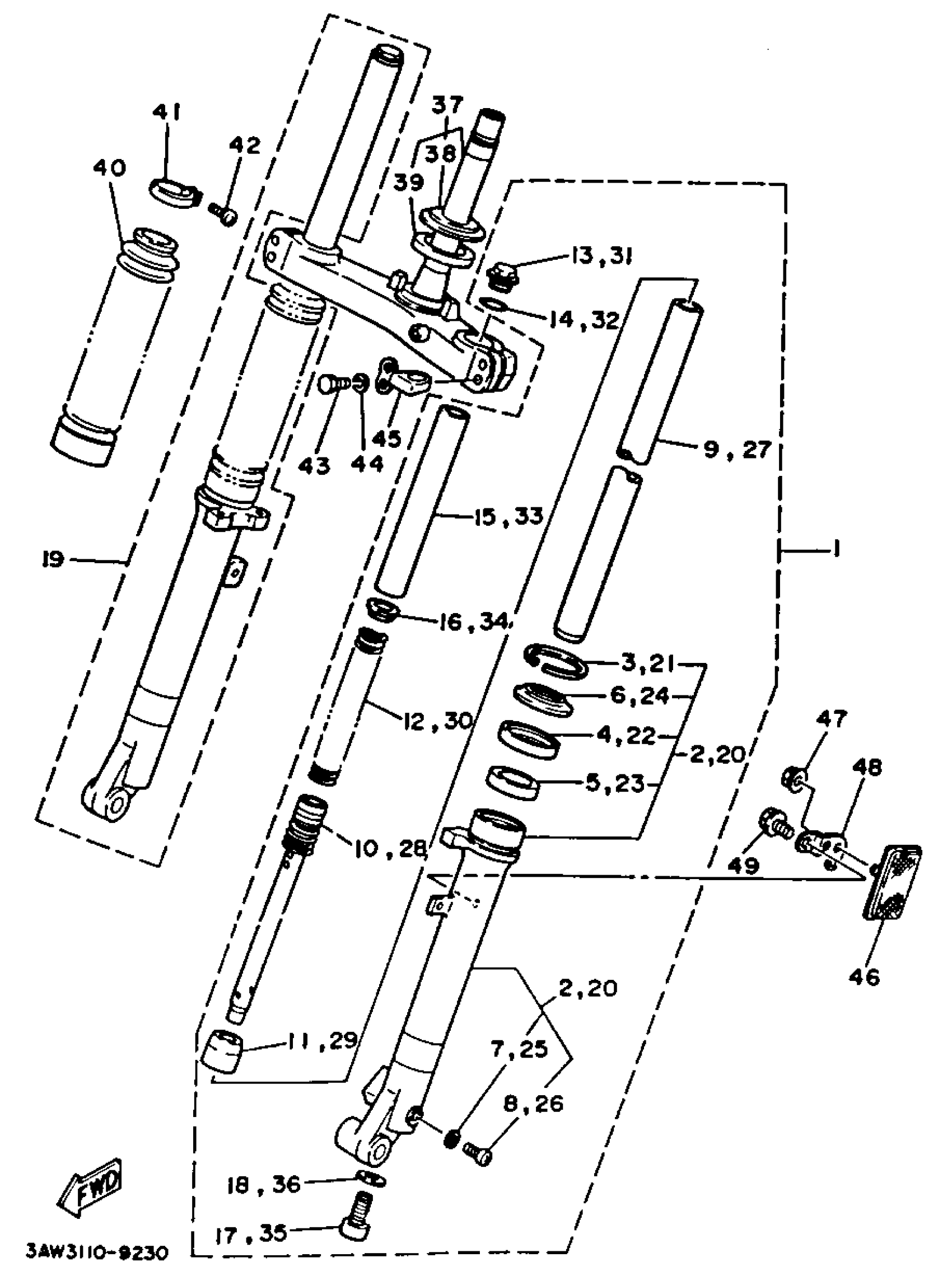

Yamaha TW200AC (TRAILWAY CA) 1990 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY (L.H)

2JX-23102-00-00

Unavailable

2

. TUBE, OUTER (LEFT)

2JX-23126-00-00

Unavailable

3

RING, SNAP

22W-23153-L0-00

$8.99

4

OIL SEAL

22W-23145-L0-00

$19.99

5

METAL, SLIDE 1

51Y-23125-00-00

$29.99

6

SEAL, DUST

54G-23144-00-00

$16.49

7

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

8

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

9

INNER TUBE COMP.1

2JX-23110-00-00

$276.99

10

. CYLINDER COMP, FRONT FORK

54G-23170-00-00

Unavailable

11

. SPINDLE, TAPER

39K-23173-00-00

Unavailable

12

SPRING, FRONT FORK

2JX-23141-00-00

$38.99

13

BOLT, CAP

2JN-23111-00-00

$43.99

14

O-RING

3J2-23114-00-00

$8.99

15

SPACER

22U-23118-01-00

Unavailable

16

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

18

GASKET

509-23158-L0-00

Unavailable

19

FRONT FORK ASSEMBLY (R.H)

2JX-23103-00-00

Unavailable

20

. TUBE, OUTER (RIGHT)

2JX-23136-00-00

Unavailable

21

RING, SNAP

22W-23153-L0-00

$8.99

22

OIL SEAL

22W-23145-L0-00

$19.99

23

METAL, SLIDE 1

51Y-23125-00-00

$29.99

24

SEAL, DUST

54G-23144-00-00

$16.49

25

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

26

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

27

INNER TUBE COMP.1

2JX-23110-00-00

$276.99

28

. CYLINDER COMP, FRONT FORK

54G-23170-00-00

Unavailable

29

. SPINDLE, TAPER

39K-23173-00-00

Unavailable

30

SPRING, FRONT FORK

2JX-23141-00-00

$38.99

31

BOLT, CAP

2JN-23111-00-00

$43.99

32

O-RING

3J2-23114-00-00

$8.99

33

SPACER

22U-23118-01-00

Unavailable

34

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

35

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

36

GASKET

509-23158-L0-00

Unavailable

37

UNDER BRACKET COMP.

3LY-23340-01-00

Unavailable

38

RACE, BALL 1

B6E-23411-00-00

Unavailable

39

SEAL, DUST

164-23462-00-00

Unavailable

40

BOOT

2JX-23191-20-00

Unavailable

40

BOOT

3AW-23191-00-00

Unavailable

41

BAND, BOOT

2K5-23192-00-00

Unavailable

42

SCREW, BOOT BAND

1W4-23194-L0-00

Unavailable

43

BOLT

97013-08035-00

Unavailable

44

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

45

HOLDER, CABLE

5Y1-23317-00-00

Unavailable

46

FRONT REFLECTOR ASSY

23V-85110-00-00

Unavailable

47

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

48

BRACKET, REFLECTOR 1

2JX-85112-00-00

Unavailable

49

BOLT, FLANGE

95812-06010-00

Unavailable
