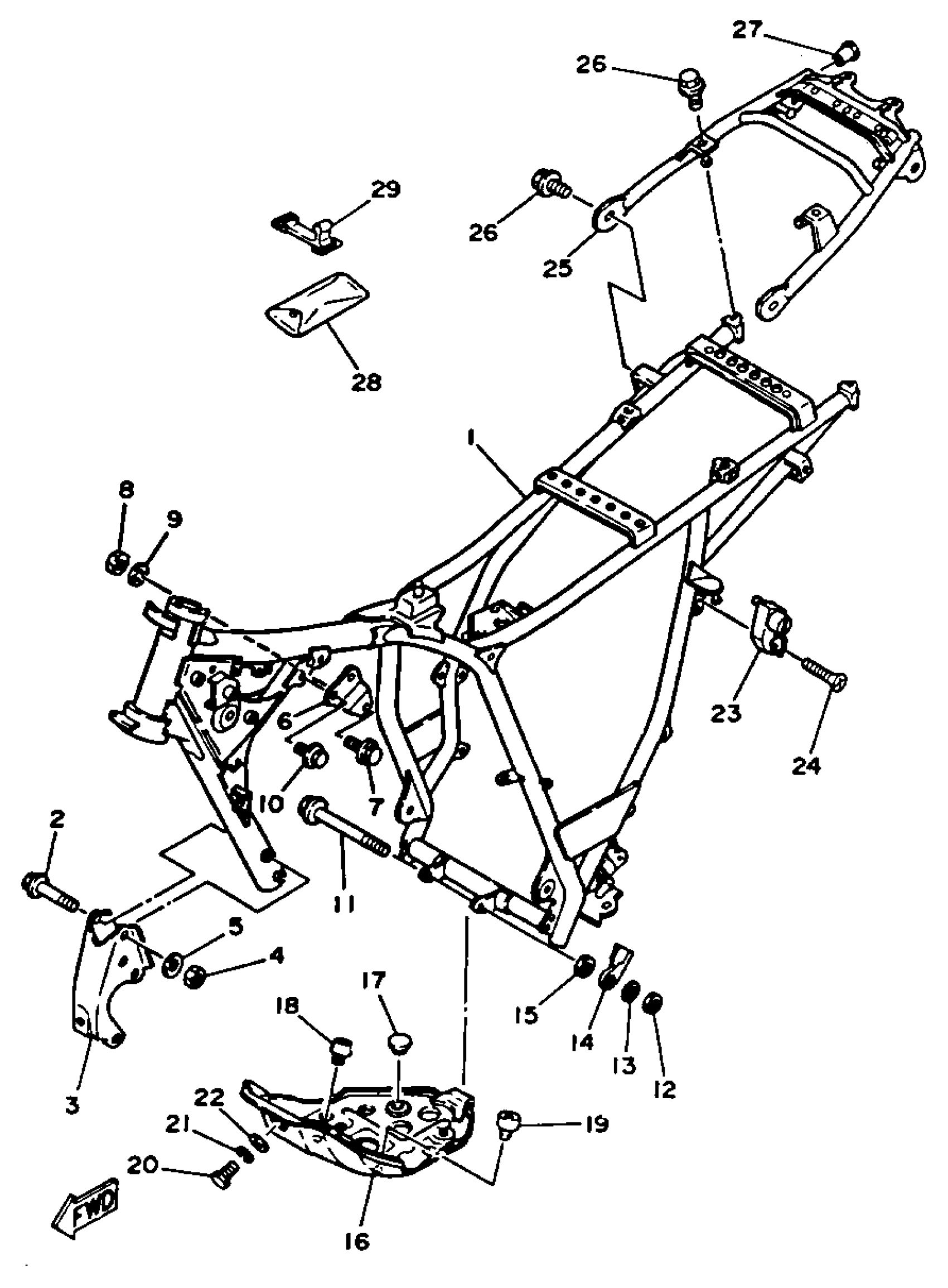

Yamaha TW200AC (TRAILWAY CA) 1990 FRAME Diagram

#

Description
Price

1

FRAME

3AW-21110-00-33

Unavailable

2

BOLT, FLANGE

95814-08065-00

$4.99

3

STAY, ENGINE 3

2JX-21316-00-33

Unavailable

4

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

5

WASHER, PLATE (33N)

90201-094G1-00

$9.49

6

STAY, ENGINE 2

2JX-21315-00-00

Unavailable

7

BOLT, FLANGE

95817-08050-00

$2.44

8

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

9

WASHER, PLATE (33N)

90201-094G1-00

$9.49

10

BOLT WASHER BASED (1J7)

90105-08066-00

Unavailable

11

BOLT, FLANGE(4EM)

95817-08120-00

$4.99

12

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

13

WASHER, PLATE (33N)

90201-094G1-00

$9.49

14

CLAMP, CABLE

1RL-21337-00-00

$3.28

15

NUT

90185-08055-00

$9.49

16

PROTECTOR, ENGINE

1RL-21471-00-35

Unavailable

17

STOPPER, MAIN STAND

128-27114-00-00

Unavailable

18

DAMPER, RUBBER 1

34L-21485-00-00

Unavailable

19

STOPPER, MAIN STAND

4N0-27114-00-00

Unavailable

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, PLAIN (646)

92990-06600-00

Unavailable

23

HELMET HANGER ASSY

26H-21308-01-00

Unavailable

24

SCREW (3H1)

90149-06150-00

Unavailable

25

FRAME, REAR

2JX-21190-00-33

Unavailable

26

BOLT, FLANGE

95817-06012-00

Unavailable

27

PLUG(EU0)

90605-50201-00

Unavailable

28

TOOL KIT

2JX-28100-00-00

Unavailable

29

BAND, BATTERY

3TJ-82131-00-00

Unavailable
