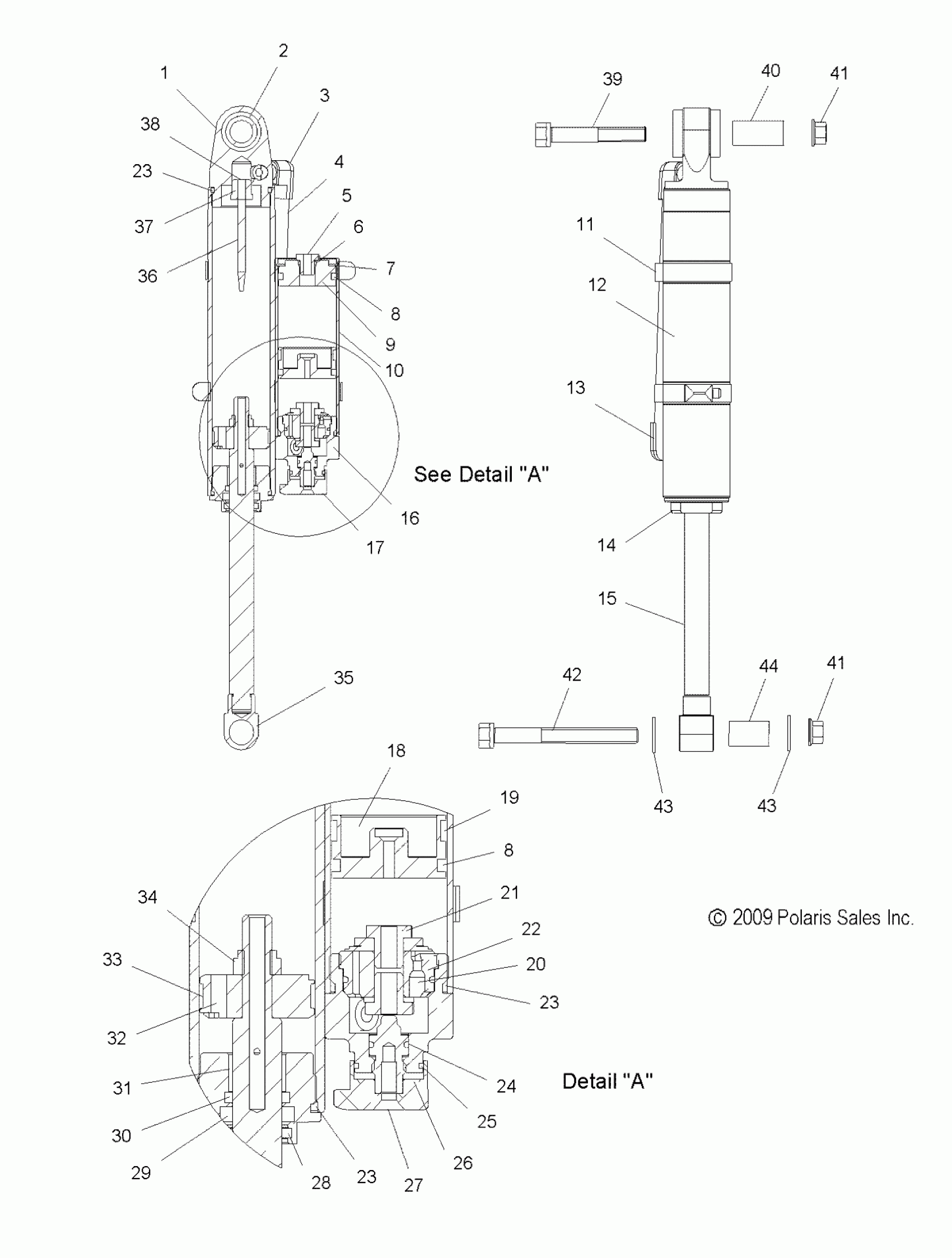

Polaris TURBO IQ - S11PP7FSL SUSPENSION, SHOCK, REAR TRACK (7043205) - S11PP7FSL (49SNOWSHOCKREAR7043205TRBO) Diagram

#

Description
Price

-

Shock, Rear Track

7043205

Unavailable

1

Loop, Body

1800224

$119.05

2

BUSHING/URETHANE

1800036

$19.84

2

SLEEVE

1800032

$19.99

3

FITTING, 90 DEGREE

1800205

$55.56

4

Hose

1800212

Unavailable

5

SCREW, BUTTON HEAD

1800109

$3.17

5

Valve, Needle

1800107

$16.35

6

O-Ring

1800108

$1.21

7

Reservoir, Snap Ring

1800019

$7.27

8

O-RING, RESERVOIR

1800028

$1.09

8

O-RING, RESERVOIR

1800028

$1.09

9

Cap, End

1800106

Unavailable

10

Body, Reservoir

1800120

$89.03

11

CLAMP, HOSE

1800022

$12.70

12

Body

1800225

$141.65

13

Elbow, 90 Degree

1800113

$34.99

14

Asm., Shaft Seal Housing

1800131

Unavailable

15

Shaft

1800381

$79.99

16

Housing, Adjustor

1800220

$138.89

17

Knob

1800218

$67.76

18

O-RING, BLEED SCREW

1800210

$1.60

18

Screw, Bleed

1800211

$2.22

18

Piston, Reservoir w/Bleed Screw

1800214

$35.71

19

Band, Wear

1800029

Unavailable

20

BALL, D-TENT

1800127

$6.46

21

SCREW

1800219

$11.11

22

PISTON

1800217

$56.65

23

O-RING, BODY

1800027

$1.37

23

O-RING, BODY

1800027

$1.37

23

O-RING, BODY

1800027

$1.37

24

O-Ring, Stud

1800215

$7.68

25

O-Ring, Knob

1800221

Unavailable

26

BALL, D-TENT

1800127

$6.46

26

SPRING-COMP .025X.3, 40.5#

1800128

$11.32

27

Screw

1800203

$2.38

28

WIPER, D-TYPE

1800034

$36.41

29

U-Cup, Shaft Seal

1800035

$28.32

30

O-RING, SHAFT SEAL HEAD

1800037

$1.60

31

BUSHING, SHAFT

1800038

$12.70

32

Piston, W/Band, .040 Red

1800230

Unavailable

33

Band, Wear

1800026

$39.99

34

NUT, CRIMP

1800031

$2.74

35

Eyelet, Shaft

1800096

$105.22

36

NEEDLE

1800300

$24.27

37

BOLT, NEEDLE

1800302

$15.99

38

Screw

1800299

$3.97

39

SCREW

7512410

$4.76

40

BUSHING

5010422

$11.99

41

NUT-3/8-24 FLG LOC

7547263

$3.17

41

NUT-3/8-24 FLG LOC

7547263

$3.17

42

Screw

7518263

$3.97

43

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.19

43

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.19

44

SLEEVE

5333905

$15.87
