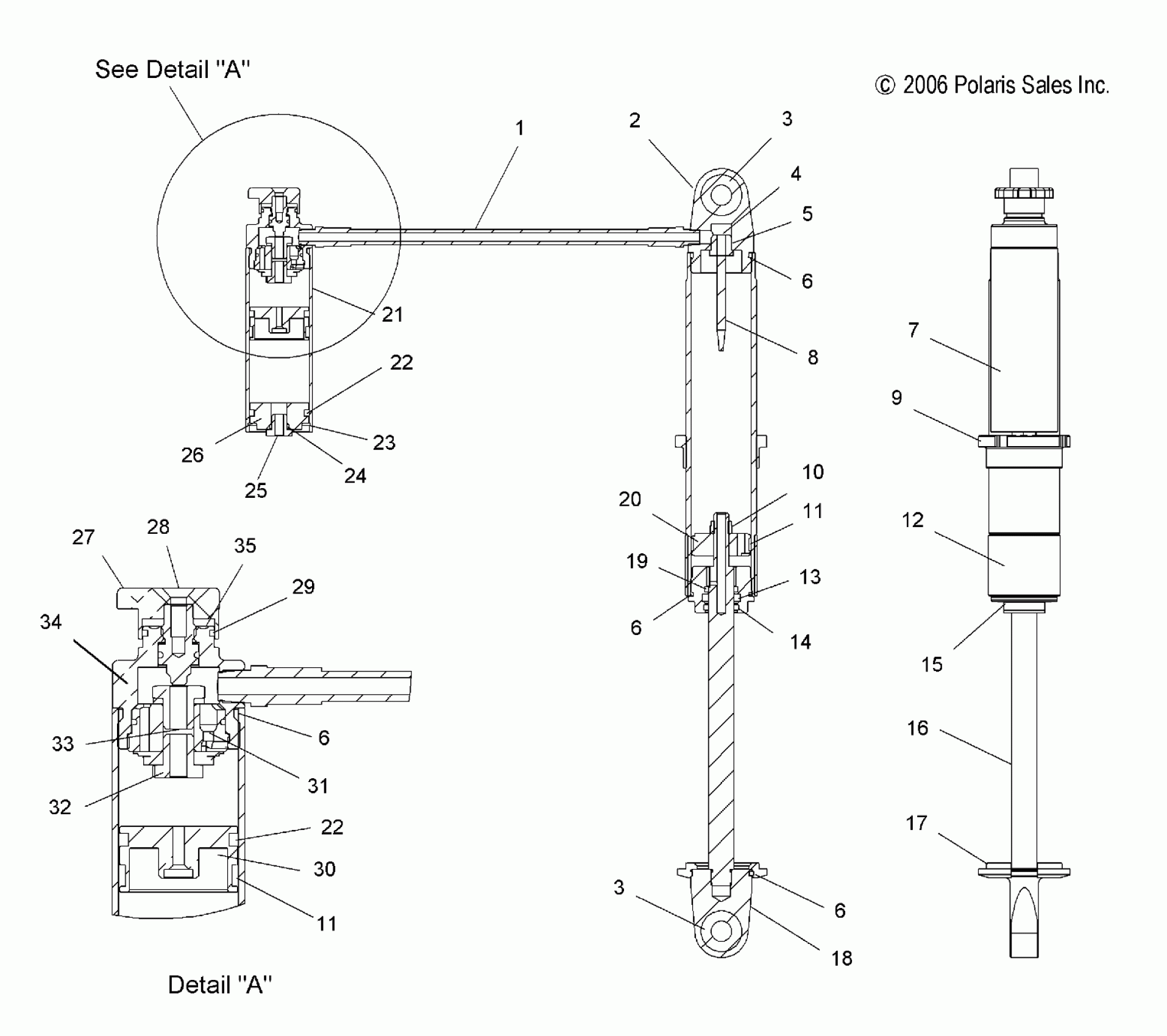

Polaris TURBO IQ - S11PP7FSL SUSPENSION, SHOCK ASM. IFS, INTERNALS (7043206) - S11PP7FSL (49SNOWSHOCKIFS7043206) Diagram

#

Description
Price

1

Asm., Hose

1800192

$91.27

2

Loop, Body

1800098

Unavailable

3

RING, SNAP

1800041

$8.08

3

Bearing

1800040

$99.99

3

RING, SNAP

1800041

$8.08

3

Bearing

1800040

$99.99

4

Screw

1800299

$3.97

5

BOLT, NEEDLE

1800301

$15.99

6

O-RING

1800027

$1.37

6

O-RING

1800027

$1.37

6

O-RING

1800027

$1.37

6

O-RING

1800027

$1.37

7

Body

1800304

Unavailable

8

NEEDLE

1800300

$24.27

9

RETAINER, SPRING

1800046

$36.41

10

NUT, CRIMP

1800031

$2.74

11

BAND, WEAR

1800297

$39.99

11

BAND, WEAR

1800297

$39.99

12

WEAR SLEEVE

1800047

$40.46

13

U-Cup, Shaft Seal

1800035

$28.32

14

WIPER, D-TYPE

1800034

$36.41

15

Asm., Shaft Seal Housing

1800131

Unavailable

16

Shaft

1800303

$129.99

17

RING, SPRING RETAINER

1800116

$64.75

18

Eyelet, Shaft

1800103

Unavailable

19

O-RING, SHAFT SEAL HEAD

1800037

$1.60

20

Asm., Piston w/Band

1800130

$129.51

21

Reservoir, Body

1800120

$89.03

22

O-RING, RESERVOIR

1800028

$1.09

22

O-RING, RESERVOIR

1800028

$1.09

23

Reservoir, Snap Ring

1800019

$7.27

24

O-Ring

1800108

$1.21

25

SCREW, BUTTON HEAD

1800109

$3.17

25

Valve, Needle

1800107

$16.35

26

Cap, End

1800106

Unavailable

27

Knob

1800218

$67.76

28

Screw

1800203

$2.38

29

O-Ring, Knob

1800221

Unavailable

30

O-RING, BLEED SCREW

1800210

$1.60

30

Screw, Bleed

1800211

$2.22

30

Piston, Reservoir w/Bleed Screw

1800214

$35.71

31

PISTON

1800217

$56.65

32

SCREW

1800219

$11.11

33

BALL, D-TENT

1800127

$6.46

34

Housing, Adjustor

1800220

$138.89

35

BALL, D-TENT

1800127

$6.46

35

SPRING-COMP .025X.3, 40.5#

1800128

$11.32
